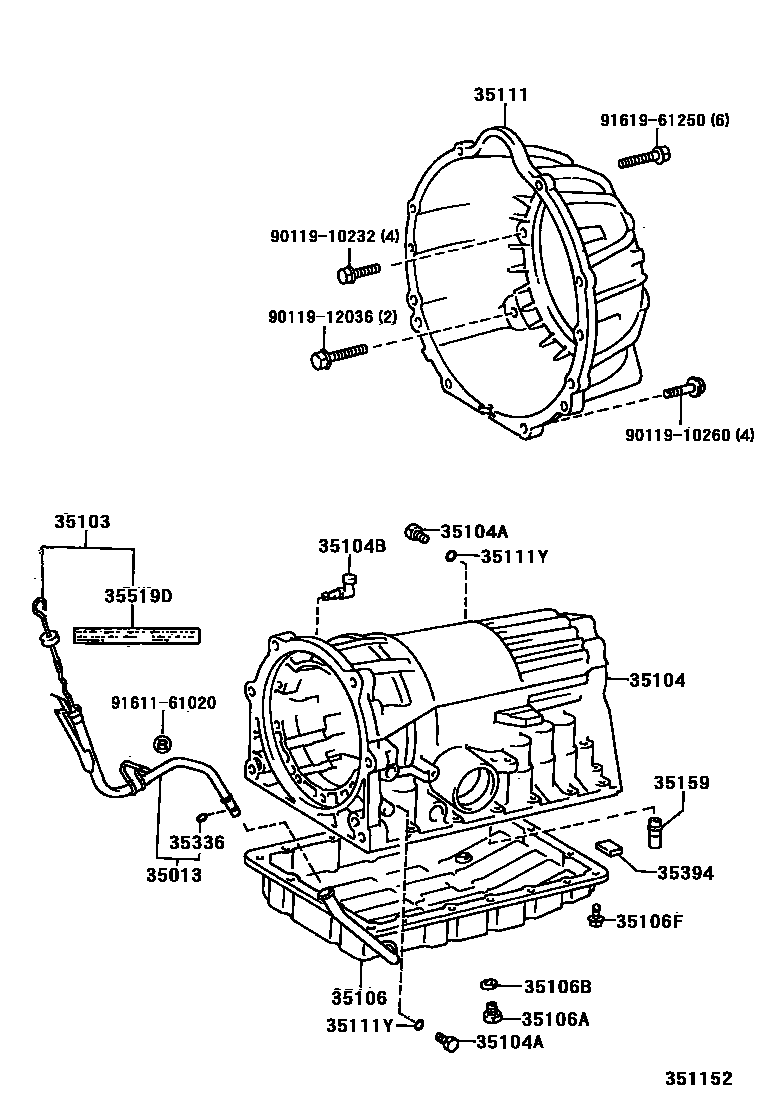

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340E 0002 1A340E 0003 1A650E

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-24050iJZZ31..4FC199108-199505

main35013-24060iUZZ30199104-199709

main35013-24090iJZZ31..4FC199505

main35013-24100iUZZ30199709

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-24040iJZZ31..4FC199108-199505

main35103-24050iUZZ30199104-199709

main35103-24080iJZZ31..4FC199505-199709

main35103-24100iJZZ31199709-199906

main35103-24101iJZZ31199906

main35103-24110iUZZ30199709-199906

main35103-24111iUZZ30199906

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-30133iJZZ31..4FC199108-199709

main35104-30170iJZZ31199709-200007

main35104-30200iUZZ30199709-200007

main35104-50012iUZZ30199104-199110

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×3iUZZ30199709-200007

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iJZZ31,UZZ30..ATM199104-200007

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22060iJZZ31..4FC199108-199203

main35106-24010iUZZ30199104-199709

main35106-24020iJZZ31..4FC199203-199709

main35106-24030iUZZ30199709-199806

main35106-24031iUZZ30199806-200007

main35106-30130iJZZ31199709-200007

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iJZZ31..4FC199108-199709

main90341-10012iUZZ30199104-200007

main90341-10018iJZZ31199709-200007

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iJZZ31..4FC199108-199709

main35178-50010iUZZ30199104-199709

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513×19iJZZ31,UZZ30..4FC199104-200007

main90119-06866iUZZ30199709-200007

NO.2

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22081iJZZ31..4FC199108-199709

main35111-30150iJZZ31199709-200007

main35111-50010iUZZ30199104-200007

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iJZZ31,UZZ30..4FC199104-200007

35159GASKET, BRAKE DRUM

main35159-30010iJZZ31,UZZ30..4FC199104-200007

main35159-30020iUZZ30199709-200007

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iUZZ30199104

main90301-09173iJZZ31..4FC199108

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iJZZ31,UZZ30..4FC199104-199305

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iJZZ31,UZZ30199906

main35519-24020iUZZ30199104-199709

main35519-30010iUZZ30199709-199906

9011910232

main90119-10232

9011910260

main90119-10260

9011912036

main90119-12036

9161161020

main91611-61020

9161961250

main91619-61250

20 parts on this diagram · 3 diagrams in section
