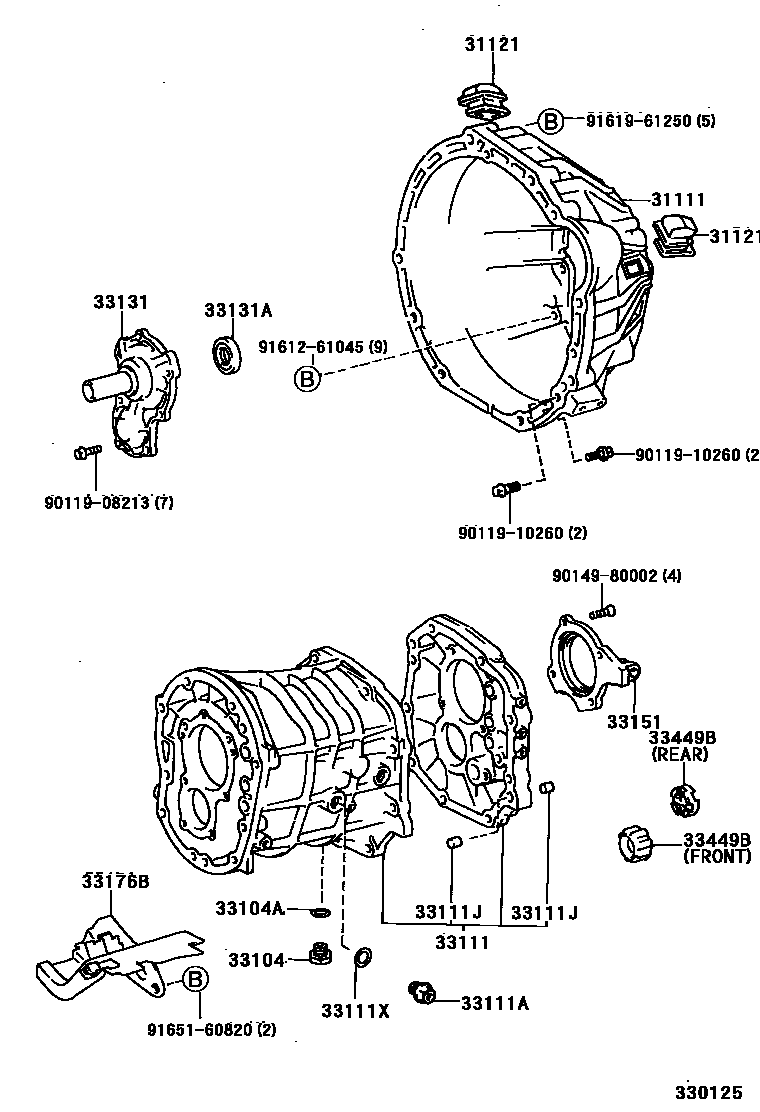

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31111HOUSING, CLUTCH

main31111-22140iJZZ31..5F199111-199709

31121COVER, CLUTCH HOUSING, NO.1

main31121-35020×2iJZZ31..5F199111-199709

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iJZZ31..5F199408-199709

main90341-18057iJZZ31..5F199111-199408

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iJZZ31..5F199111-199709

33111CASE, MANUAL TRANSMISSION

main33101-30070iJZZ31..5F199111-199503

main33101-30071iJZZ31..5F199503-199709

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iJZZ31..5F199111-199408

main90341-18006iJZZ31..5F199408-199709

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×6iJZZ31..5F199111-199709

L=16,OD=12

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iJZZ31..5F199111-199709

33131RETAINER, BEARING, FRONT(MTM)

main33131-30080iJZZ31..5F199111-199709

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iJZZ31..5F199111-199709

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iJZZ31..5F199111-199709

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-30020iJZZ31..5F199111-199709

33449BMAGNET, TRANSMISSION

main33449-30010iJZZ31..5F199111-199709

REAR

main33449-30020iJZZ31..5F199111-199709

FRONT

9011908213

main90119-08213

9011910260

main90119-10260

9014980002

main90149-80002

9161261045

main91612-61045

9161961250

main91619-61250

9165160820

main91651-60820

19 parts on this diagram · 1 diagram in section
