TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

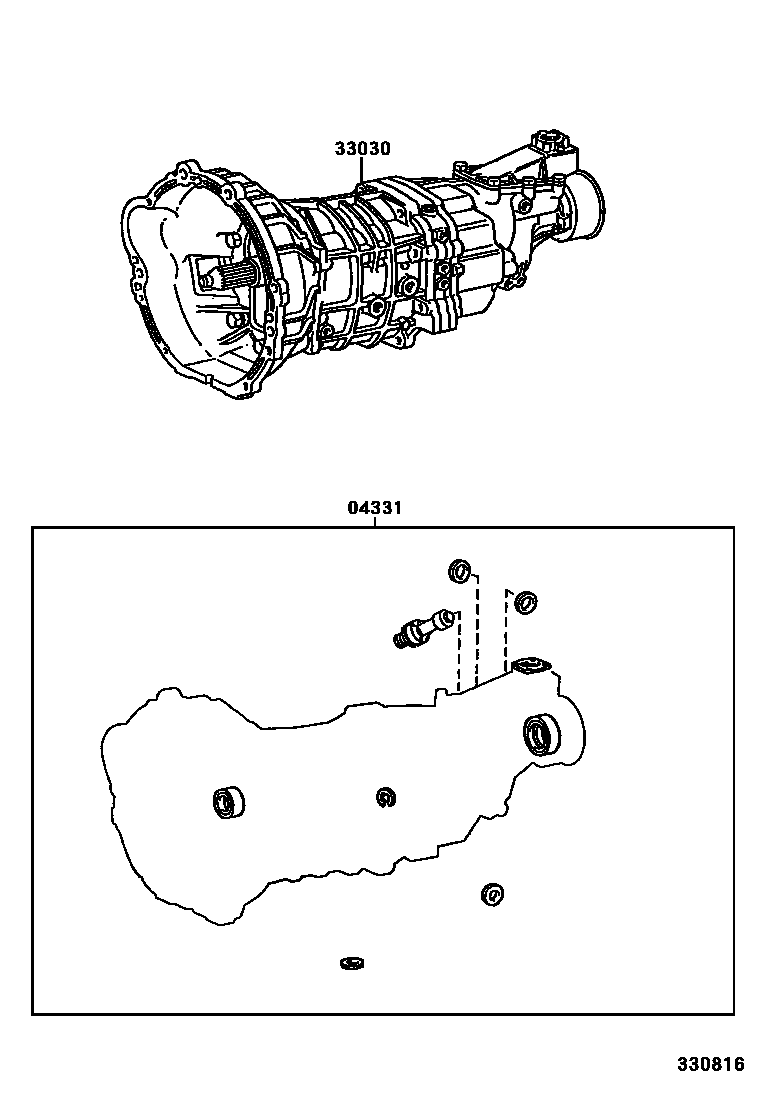

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-22040i199608-199701

main04331-30110i199701-199709

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-24111i199111-199401

main33030-24120i199401-199608

main33030-24170i199608-199709

2 parts on this diagram · 1 diagram in section
