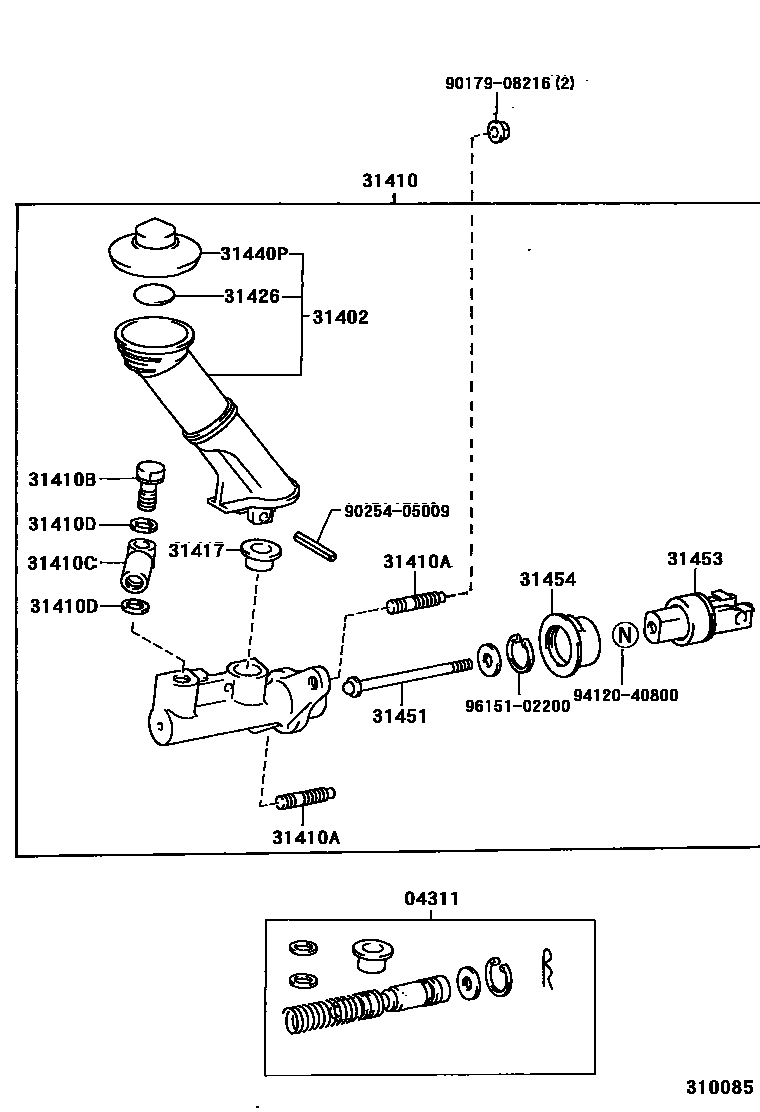

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12080iJZZ31..5F199301-199403

main04311-12090iJZZ31..5F199112-199301

main04311-60120iJZZ31..5F199111-199112

main04311-60150iJZZ31..5F199403-199709

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-24030iJZZ31..5F199111-199709

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14310iJZZ31..5F199301-199709

main31410-24060iJZZ31..5F199111-199301

sub31481-24060

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146×2iJZZ31..5F199111-199709

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-10046iJZZ31..5F199111-199301

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90405-10038iJZZ31..5F199111-199301

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-10074×2iJZZ31..5F199111-199301

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iJZZ31..5F199111-199709

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iJZZ31..5F199111-199709

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-36010iJZZ31..5F199111-199709

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-24010iJZZ31..5F199111-199309

main31451-24030iJZZ31..5F199309-199403

main31451-24040iJZZ31..5F199403-199709

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iJZZ31..5F199111-199709

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14020iJZZ31..5F199111-199709

9017908216

main90179-08216

9025405009

main90254-05009

9412040800

main94120-40800

9615102200

main96151-02200

17 parts on this diagram · 2 diagrams in section
