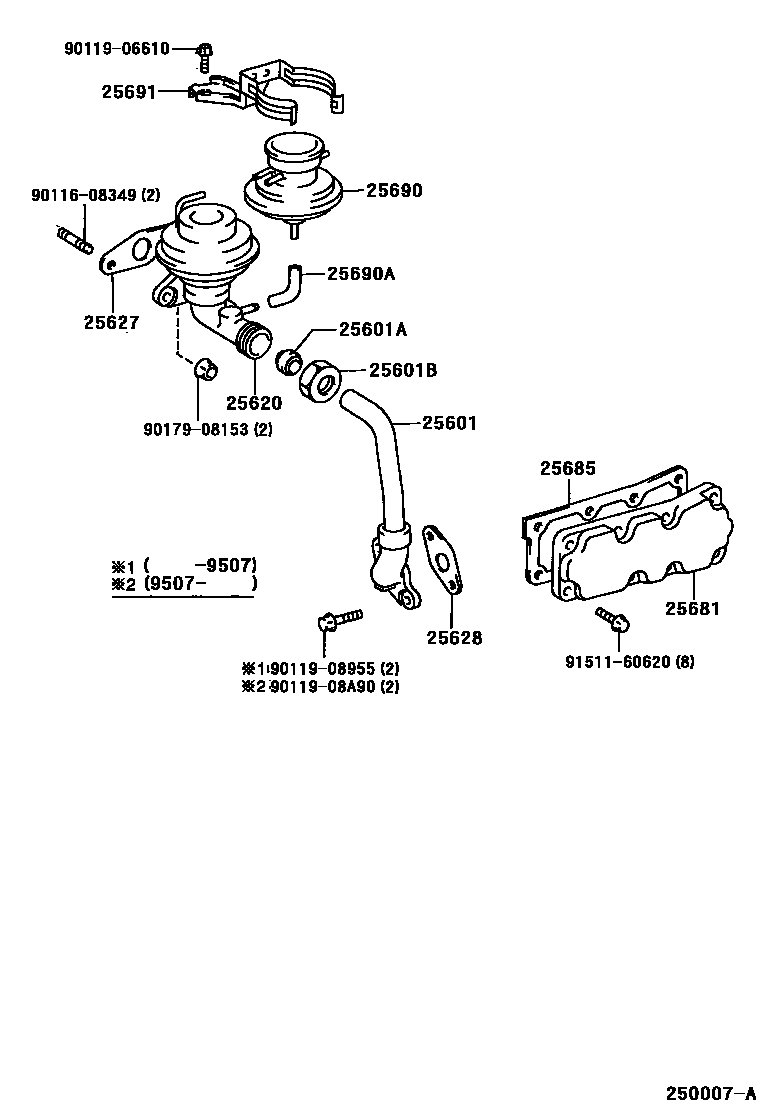

EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25620VALVE ASSY, EGR
25627GASKET, EGR VALVE
25628GASKET, EGR INLET
25681COOLER, EGR, NO.1
25685GASKET, EGR COOLER, NO.1
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
9011608349
main90116-08349
9011906610
main90119-06610
9011908955
main90119-08955
9011908A90
main90119-08A90
9017908153
main90179-08153
9151160620
main91511-60620
17 parts on this diagram · 4 diagrams in section
