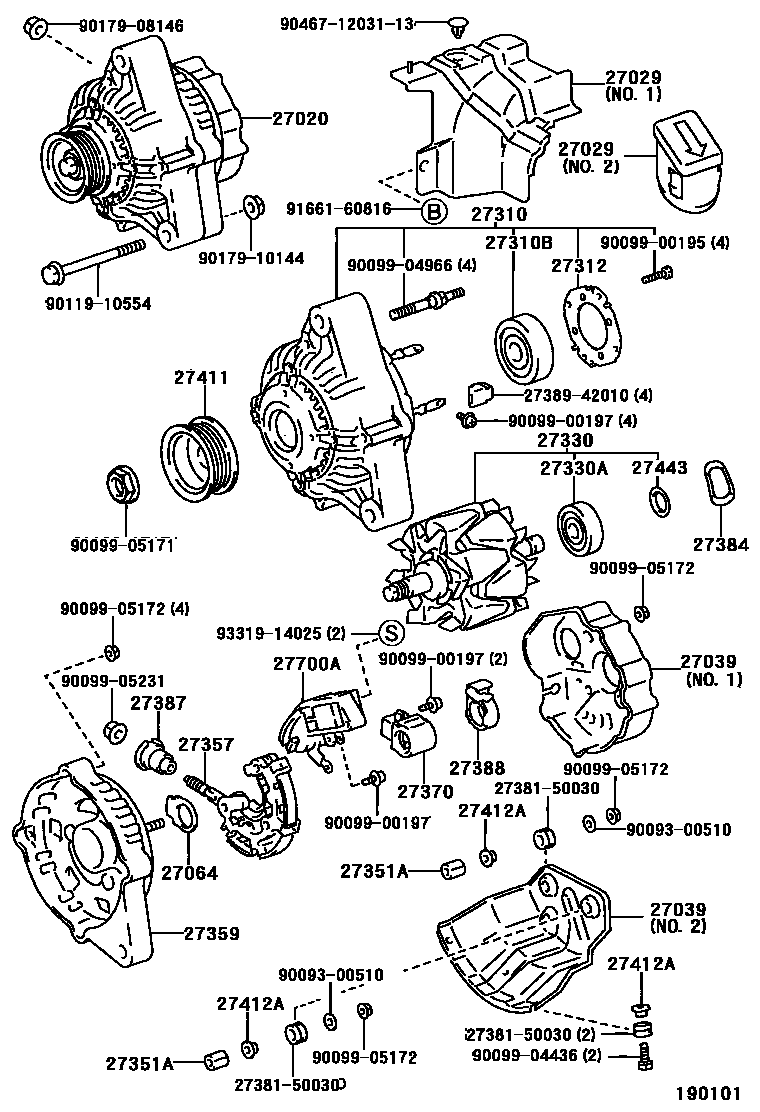

ALTERNATOR
27020ALTERNATOR ASSY
12V 100A
12V 100A
12V 80A
12V 80A
12V 120A
12V 100A
12V 100A
27029COVER, ALTERNATOR
NO.1
NO.2
NO.1
27039COVER, ALTERNATOR REAR END
NO.1
NO.1
NO.1
NO.2
27064SEAL, ALTERNATOR PLATE
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27351ACOLLAR, ADJUSTING ALTERNATOR
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27388COVER, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
2738150030SUPPORT, TERMINAL, ALTERNATOR
main27381-50030
2738942010INSULATOR, TERMINAL
main27389-42010
9009300510
main90093-00510
9009900195
main90099-00195
9009900197
main90099-00197
9009904436
main90099-04436
9009904966
main90099-04966
9009905171
main90099-05171
9009905172
main90099-05172
9009905231
main90099-05231
9011910554
main90119-10554
9017908146
main90179-08146
9017910144
main90179-10144
904671203113
main90467-1203113
9166160816
main91661-60816
9331914025
main93319-14025
36 parts on this diagram · 4 diagrams in section
