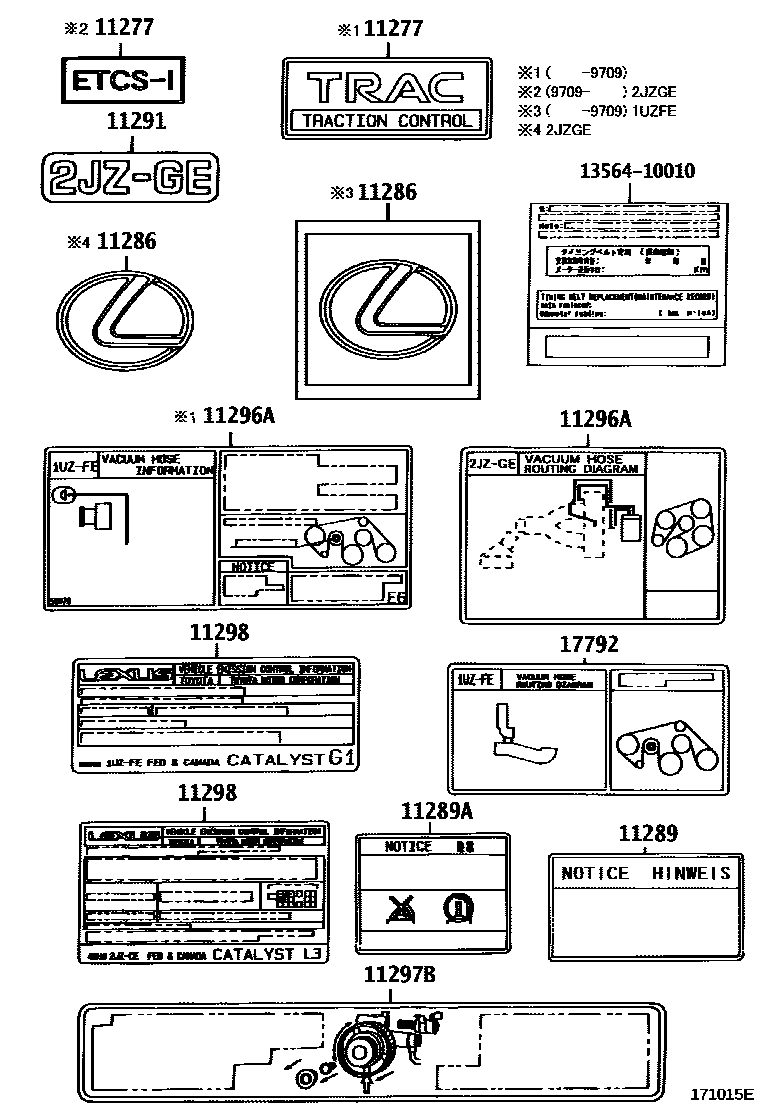

CAUTION PLATE & NAME PLATE (ENGINE)

Parts diagram

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-46050i199108-199308

main11277-46100i199308-199709

main11277-46120i199709-200007

main11286-50010i199104-199508

11286PLATE, ENGINE SPECIFICATION

main11286-46030i199108-200007

main11291-50021i199409-199709

11289PLATE, SPARK PLUG CAUTION

main11289-50010i199709

11289ALABEL, SPARK PLUG NOTICE

main11289-20010i199709

11291PLATE, ENGINE NAME

main11291-46010i199308-200001

main11291-50020i199104-199409

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-46050i199108-199208

main11296-46051i199208-199508

main11296-46052i199508-199608

main11296-46053i199608-199709

main11296-46054i199709-199808

main11296-46055i199808-199908

main11296-46056i199908

main11296-50070i199104-199208

main11296-50071i199208-199401

main11296-50080i199104-199208

CALIFORNIA SPEC

main11296-50081i199208-199401

CALIFORNIA SPEC

main11296-50180i199401-199508

main11296-50181i199508-199608

main11296-50182i199608-199709

11297BLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-46020i199709-200007

main11297-50010i199709-200007

11298PLATE, EMISSION CONTROL INFORMATION

main11298-46010i199108-199208

main11298-46011i199208-199308

main11298-46012i199308-199401

main11298-46013i199401-199508

main11298-46014i199508-199608

main11298-46015i199608-199709

main11298-46016i199709-199808

main11298-46017i199808-199908

main11298-46018i199908

main11298-46020i199108-199208

CALIFORNIA SPEC

main11298-46021i199208-199308

CALIFORNIA SPEC

main11298-46022i199308-199401

CALIFORNIA SPEC

main11298-46023i199401-199508

CALIFORNIA SPEC

main11298-46024i199508-199608

CALIFORNIA SPEC

main11298-46025i199608-199709

CALIFORNIA SPEC

main11298-46026i199709-199808

CALIFORNIA SPEC

main11298-46027i199808

CALIFORNIA SPEC

main11298-50050i199104-199208

main11298-50051i199208-199308

main11298-50052i199308-199401

main11298-50053i199401-199508

main11298-50054i199508-199608

main11298-50055i199608-199709

main11298-50060i199104-199208

CALIFORNIA SPEC

main11298-50061i199208-199308

CALIFORNIA SPEC

main11298-50062i199308-199401

CALIFORNIA SPEC

main11298-50063i199401-199508

CALIFORNIA SPEC

main11298-50064i199508-199608

CALIFORNIA SPEC

main11298-50065i199608-199709

CALIFORNIA SPEC

main11298-50120i199709-199808

main11298-50130i199709-199808

CALIFORNIA SPEC

main11298-50160i199808-199908

main11298-50250i199908

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-50030i199709-199808

main17792-50120i199808-199908

main17792-50140i199908

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

10 parts on this diagram · 1 diagram in section
