WATER PUMP

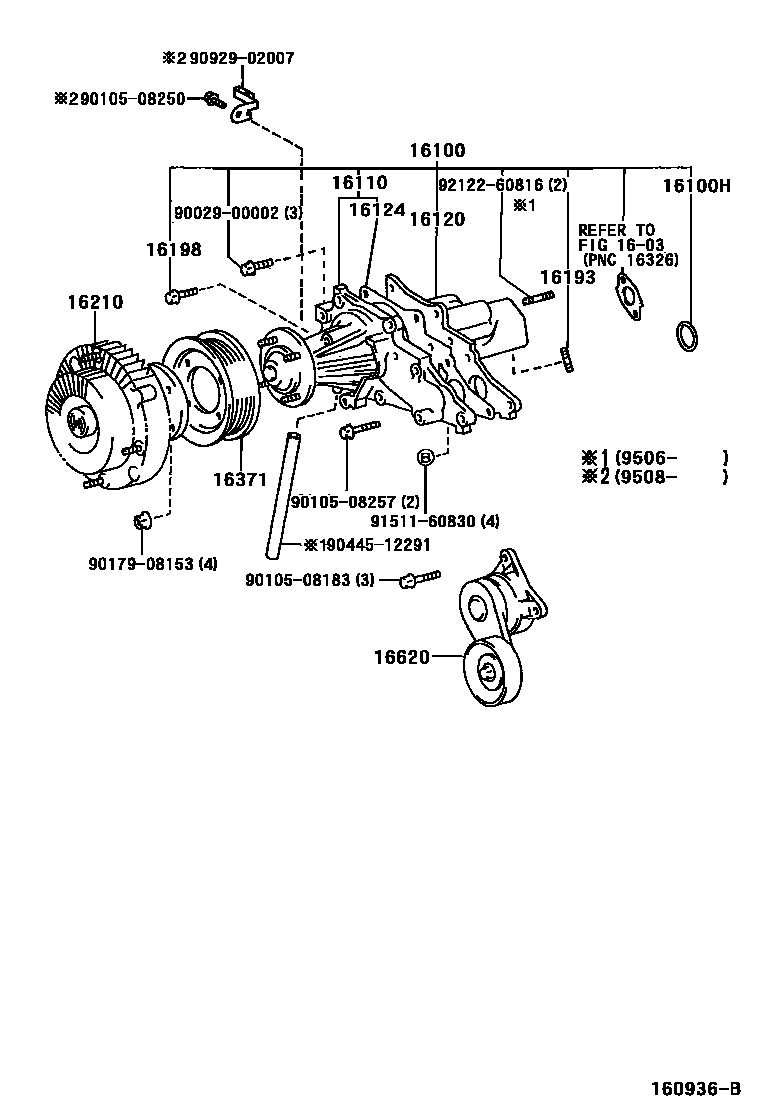

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-49835i199108-199506

main16100-49836i199506-199909

main16100-49837i199909-200007

main16100-50020i199104-199312

main16100-50021i199312-199409

main16100-50022i199409-199709

main16100-59275i199709

16100HRING, O(FOR WATER PUMP)

main96761-24040i199108-200007

16110PUMP ASSY, WATER, W/O COUPLING

main16110-49097i199909-200007

main16110-49115i199108-199506

main16110-49116i199506-199909

16120COVER ASSY, WATER PUMP

main16102-46072i200006-200007

main16120-46080i199909-200006

16124GASKET, WATER PUMP COVER

main16124-46030i199909-200007

main16124-46040i199108-199608

main16124-46041i199608-199909

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-46030i199909-200007

main16193-46040i199108-199909

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-46031i199909-200007

16210COUPLING ASSY, FLUID

main16210-46030i199108-200007

16371PULLEY, FAN

main16371-46020i199108-200007

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W020i199211-199307

main16620-0W021i199307-199505

main16620-0W022i199505-199508

main16620-0W023i199508-199610

main16620-0W024i199610-200006

main16620-0W025i200006-200007

main16620-0W030i199406-199505

main16620-0W031i199505-199507

main16620-0W032i199507-199508

main16620-0W033i199508-199509

main16620-0W034i199509-199706

main16620-0W035i199706-199709

main16620-0W036i199709

main16620-46031i199108-199209

main16620-46032i199209-199211

main16620-46060i199111-199709

main16620-50011i199401-199406

main16620-50020i199104-199401

9002900002

main90029-00002

9010508183

main90105-08183

9010508250

main90105-08250

9010508257

main90105-08257

9017908153

main90179-08153

9044512291

main90445-12291

9092902007

main90929-02007

9151160830

main91511-60830

9212260816

main92122-60816

20 parts on this diagram · 3 diagrams in section
