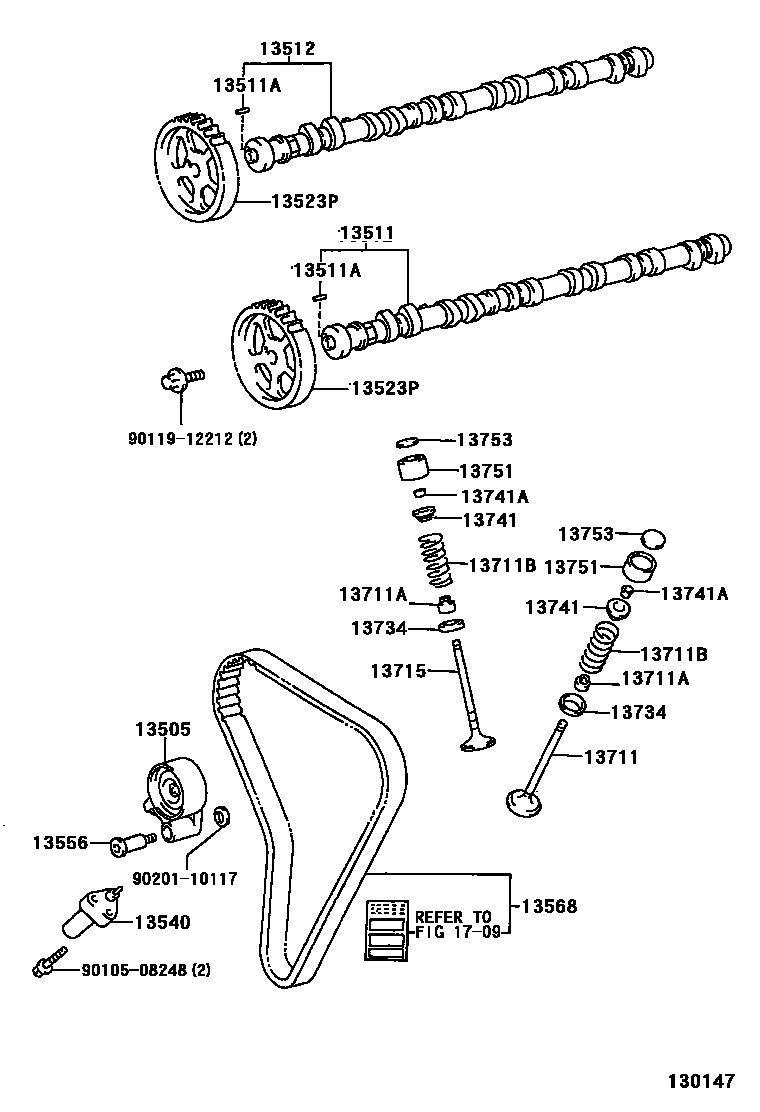

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=13.8,OD=5.0
13512CAMSHAFT, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
sub90913-02122
EXHAUST SIDE
EXHAUST SIDE
INTAKE SIDE
EXHAUST
INTAKE
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.000,MARK 00
T=2.020,MARK 02
T=2.040,MARK 04
T=2.060,MARK 06
T=2.080,MARK 08
T=2.100,MARK 10
T=2.120,MARK 12
T=2.140,MARK 14
T=2.160,MARK 16
T=2.180,MARK 18
T=2.200,MARK 20
T=2.220,MARK 22
T=2.240,MARK 24
T=2.260,MARK 26
T=2.280,MARK 28
T=2.300,MARK 30
T=2.320,MARK 32
T=2.340,MARK 34
T=2.360,MARK 36
T=2.380,MARK 38
T=2.400,MARK 40
T=2.420,MARK 42
T=2.440,MARK 44
T=2.460,MARK 46
T=2.480,MARK 48
T=2.500,MARK 50
T=2.520,MARK 52
T=2.540,MARK 54
T=2.560,MARK 56
T=2.580,MARK 58
T=2.600,MARK 60
T=2.620,MARK 62
T=2.640,MARK 64
T=2.660,MARK 66
T=2.680,MARK 68
T=2.700,MARK 70
T=2.720,MARK 72
T=2.740,MARK 74
T=2.760,MARK 76
T=2.780,MARK 78
T=2.800,MARK 80
T=2.50,MARK 01
T=2.60,MARK 06
T=2.70,MARK 13
T=2.75,MARK 18
T=2.80,MARK 23
T=2.85,MARK 28
T=2.90,MARK 33
T=2.95,MARK 38
T=3.00,MARK 43
T=3.05,MARK 48
T=3.10,MARK 51
T=3.20,MARK 56
T=3.30,MARK 61
T=2.525,MARK 62
T=2.55,MARK 63
T=2.575,MARK 64
T=2.625,MARK 65
T=2.65,MARK 66
T=2.675,MARK 67
T=2.725,MARK 68
T=2.775,MARK 69
T=2.825,MARK 70
T=2.875,MARK 71
T=2.925,MARK 72
T=2.975,MARK 73
T=3.025,MARK 74
T=3.075,MARK 75
T=3.125,MARK 76
T=3.15,MARK 77
T=3.175,MARK 78
T=3.225,MARK 79
T=3.25,MARK 80
T=3.275,MARK 81
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
1709
9010508248
main90105-08248
9011912212
main90119-12212
9020110117
main90201-10117
