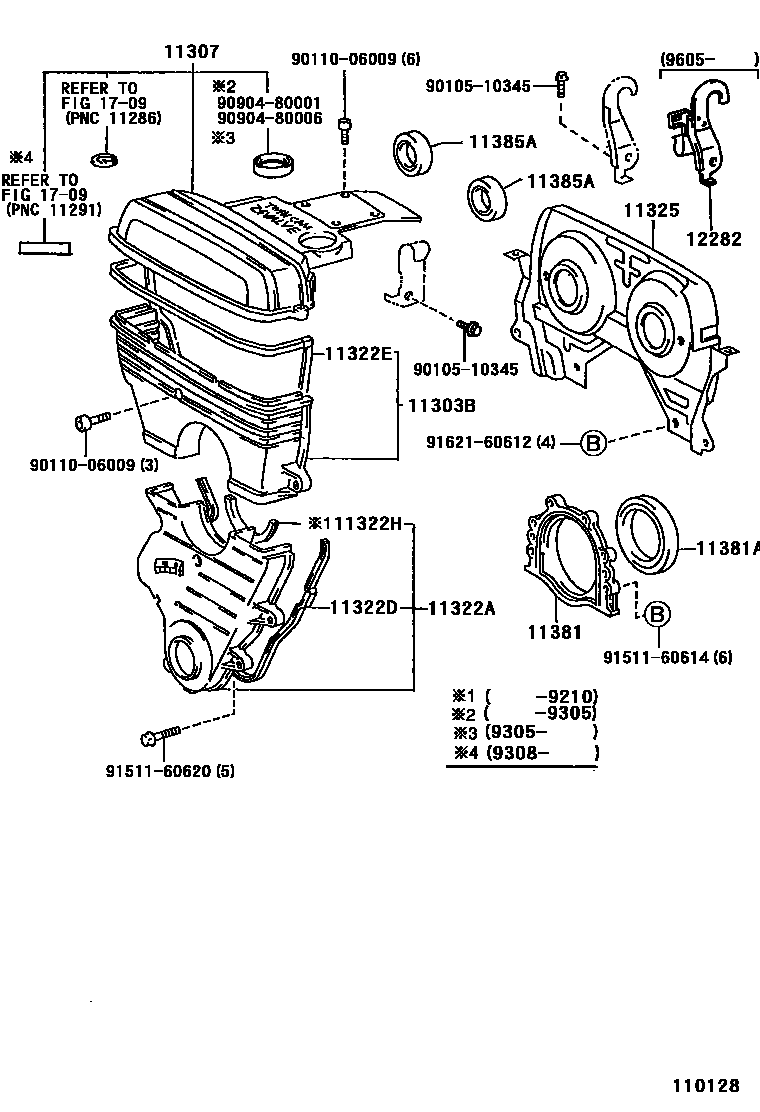

TIMING GEAR COVER & REAR END PLATE
11303BCOVER SUB-ASSY, TIMING BELT, NO.2
11307COVER, SUB-ASSY, TIMING BELT, NO.3
11322ACOVER, TIMING BELT, NO.1
11322DGASKET, TIMING BELT COVER, NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11322HGASKET, TIMING BELT COVER, NO.3
11325COVER, TIMING BELT, NO.4
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11385ASEAL, OIL(FOR CAMSHAFT)
12282HANGER, ENGINE, NO.2
1709CAUTION PLATE & NAME PLATE (ENGINE)
9010510345
main90105-10345
9011006009
main90110-06009
9090480001
main90904-80001
9090480006
main90904-80006
9151160614
main91511-60614
9151160620
main91511-60620
9162160612
main91621-60612
19 parts on this diagram · 4 diagrams in section
