ENGINE OVERHAUL GASKET KIT

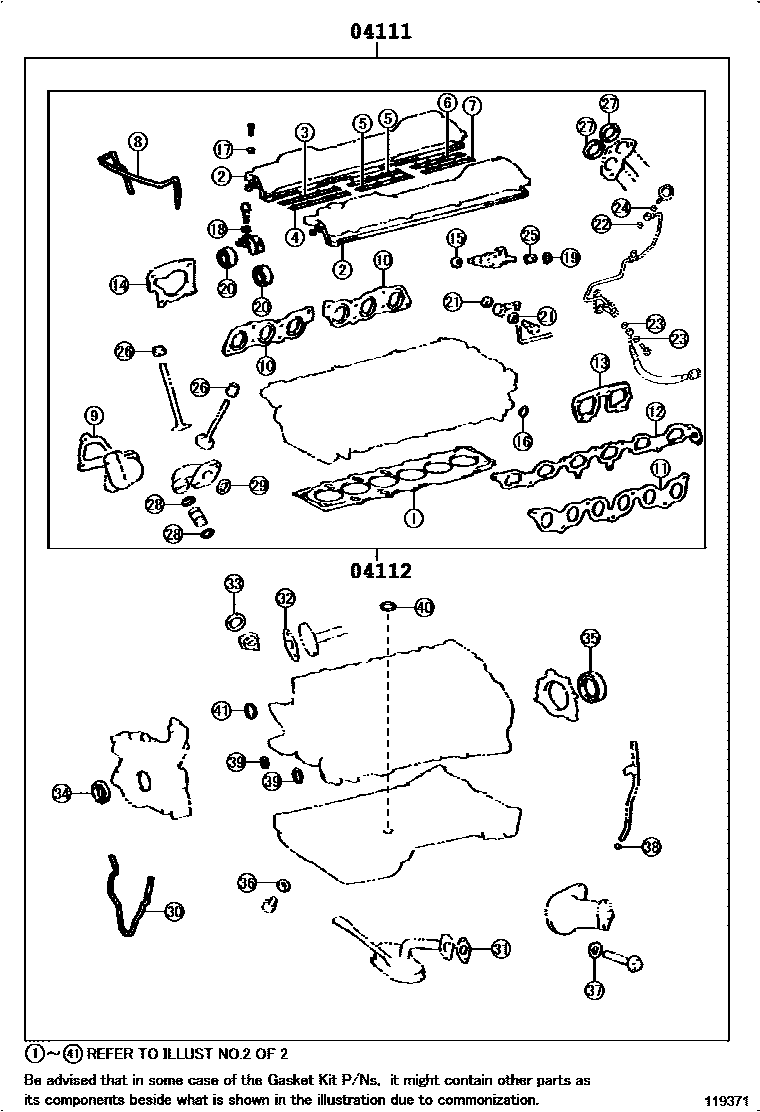

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-46040i199111-199210

main04111-46041i199301-199304

main04111-46043i199304-199306

main04111-46044i199306-199608

main04111-46045i199608-199709

main04111-46070i199210-199301

main04111-46102i199709-200007

main04111-50040i199104-199408

main04111-50042i199408-199509

main04111-50043i199509-199705

main04111-50044i199705-199709

main04111-50110i199709-199711

main04111-50111i199711-199808

main04111-50112i199808

04112GASKET KIT, ENGINE VALVE GRIND

main04112-46040i199111-199210

main04112-46041i199301-199304

main04112-46043i199304-199306

main04112-46044i199306-199608

main04112-46045i199608-199709

main04112-46070i199210-199301

main04112-46102i199709-200007

main04112-50040i199104-199408

main04112-50042i199408-199509

main04112-50043i199509-199705

main04112-50044i199705-199709

main04112-50110i199709-199808

main04112-50111i199808

2 parts on this diagram · 6 diagrams in section
