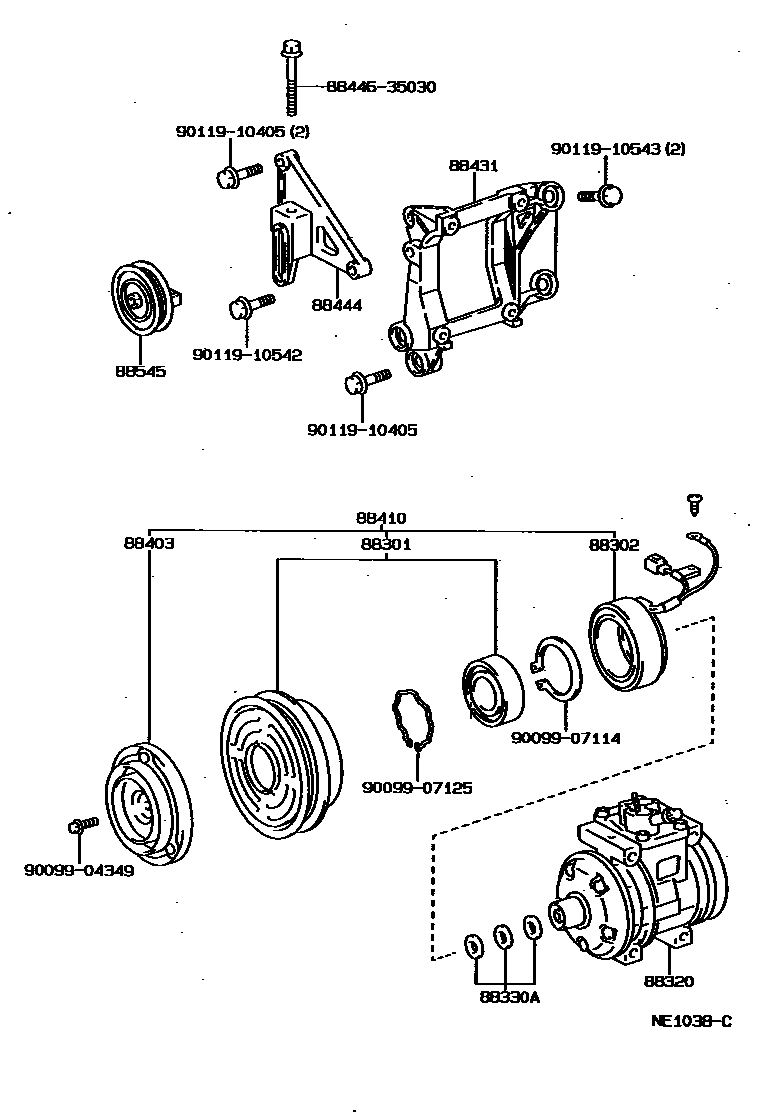

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iMX83198808-199207

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-35030iMX83198808-199207

88320COMPRESSOR ASSY, COOLER

main88320-22580iMX83198808-199207

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMX83198808-199207

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iMX83198808-199207

88410CLUTCH ASSY, MAGNET

main88410-30440iMX83198808-199207

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22240iMX83198808-199207

88444BRACKET, IDLE PULLEY

main88444-24010iMX83198808-199207

88545PULLEY ASSY, IDLE

main88440-22090iMX83198808-199207

8844635030BOLT, IDLE PULLEY

main88446-35030

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9011910405

main90119-10405

9011910542

main90119-10542

9011910543

main90119-10543

16 parts on this diagram · 2 diagrams in section
