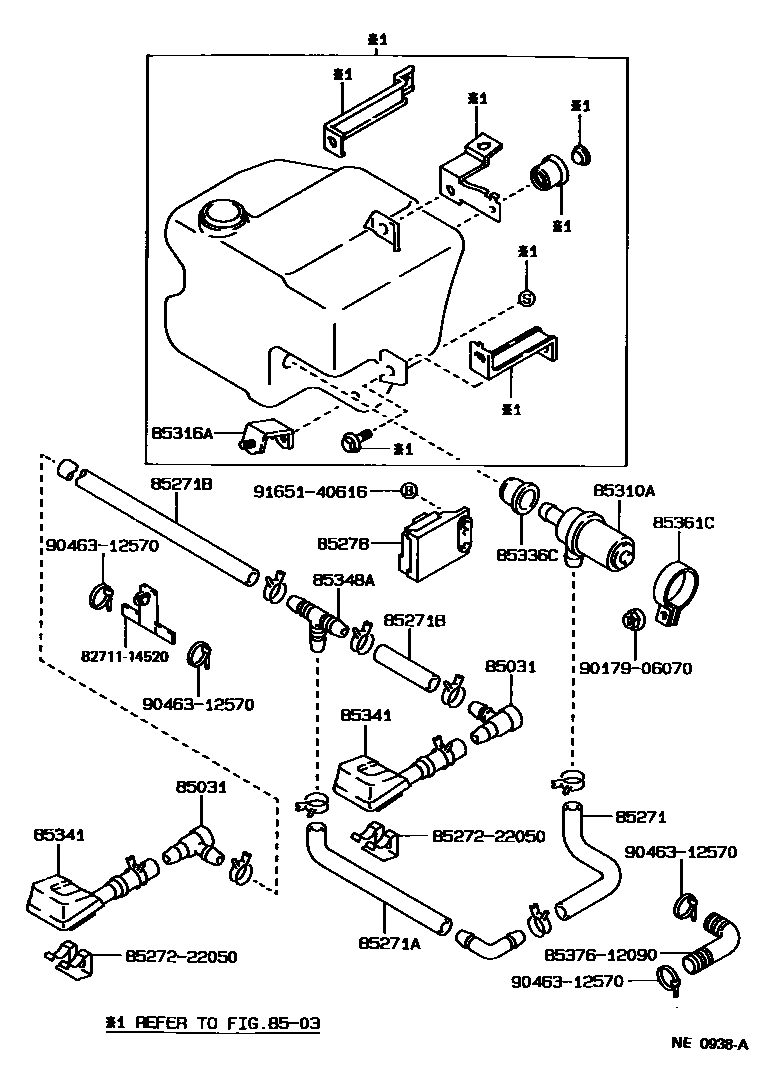

HEADLAMP CLEANER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020×2iMX83..CND198808-199207

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-22480iMX83..CND198808-199207

85271AHOSE, HEADLAMP CLEANER, NO.2

main85375-12510iMX83..CND198808-199207

85271BHOSE, HEADLAMP CLEANER, NO.3

main85376-14301iMX83..CND198808-199207

L=75,LH

main90445-14072iMX83..CND198808-199207

L=1320,RH

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-22070iMX83..CND198808-199207

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-22140iMX83..CND198808-199207

85316AHOLDER, WASHER

main85316-22480iMX83..CND198808-199207

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iMX83..CND198808-199207

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-12131×2iMX83..CND198808-199207

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iMX83..CND198808-199207

85361CBRACKET, WASHER

main85361-90K02iMX83..CND198808-199207

8271114520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14520

8527222050CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22050

8537612090PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-12090

9017906070

main90179-06070

9046312570

main90463-12570

9165140616

main91651-40616

18 parts on this diagram · 1 diagram in section
