WIRING & CLAMP

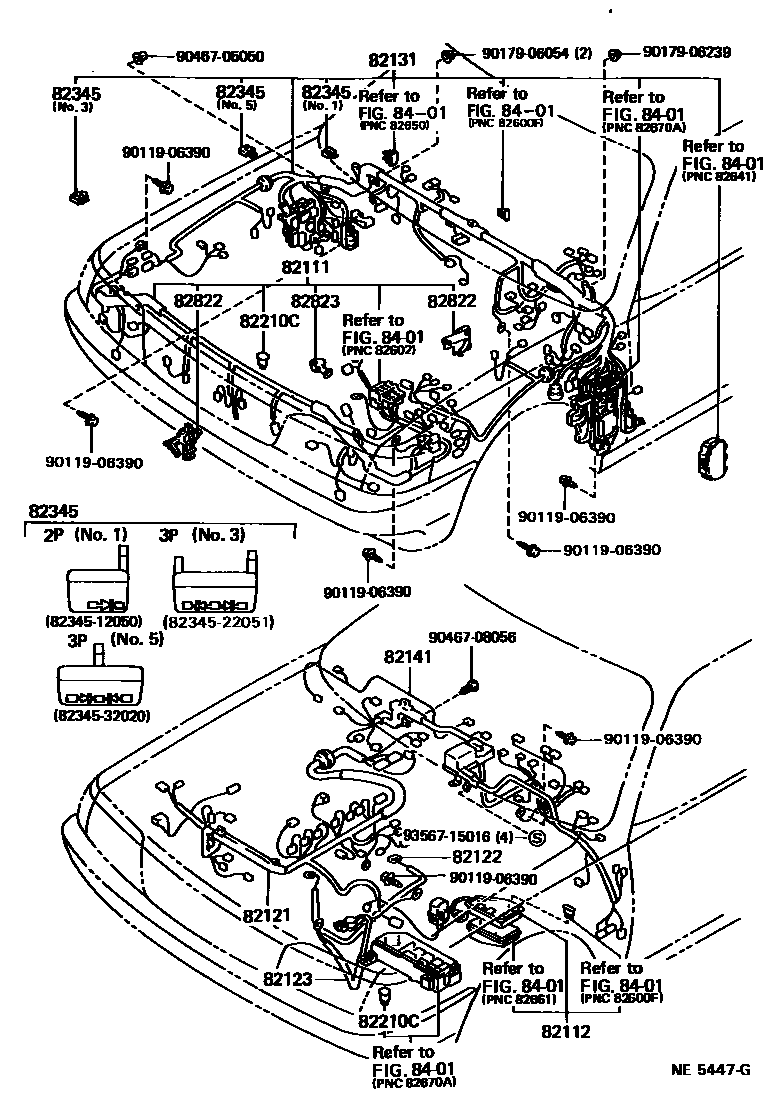

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-2A090i198908-199008
W(ANTI-LOCK BRAKE SYSTEM)
main82111-2A100i198908-199008
main82111-2A400i198908-199008
W(ANTI-LOCK BRAKE SYSTEM)
main82111-2A410i198908-199008
main82111-2A610i199008-199207
W(ANTI-LOCK BRAKE SYSTEM)
main82111-2A620i199008-199207
main82111-2A630i199008-199207
W(ANTI-LOCK BRAKE SYSTEM)
main82111-2A640i199008-199207
82112WIRE, ENGINE ROOM, NO.2
main82112-22030i198908-199207
82121WIRE, ENGINE
main82121-22550i198808-199008
main82121-22580i198808-199008
CALIFORNIA SPEC
main82121-2A020i199008-199108
main82121-2A021i199108-199207
main82121-2A030i199008-199108
CALIFORNIA SPEC
main82121-2A031i199108-199207
CALIFORNIA SPEC
82122WIRE, ENGINE, NO.2
main82122-22100i198808-199207
82123WIRE, ENGINE, NO.3
main82123-22070i198808-199111
82131WIRE, COWL
main82131-2A780i198808-198908
main82131-2C060i198808-199008
W(ANTI-LOCK BRAKE SYSTEM)
main82131-2C070i198808-199008
main82131-2C080i198808-198908
W(ANTI-LOCK BRAKE SYSTEM)
main82131-2C260i198908-199008
W(ANTI-LOCK BRAKE SYSTEM)
main82131-2C270i198908-199008
main82131-2C550i199008-199207
W(ANTI-LOCK BRAKE SYSTEM)
main82131-2C560i199008-199207
main82131-2C570i199008-199207
W(ANTI-LOCK BRAKE SYSTEM)
main82131-2C580i199008-199207
82141WIRE, INSTRUMENT PANEL
main82141-22520i198808-199008
main82141-22530i198808-199008
W(DIGITAL SPEEDOMETER)
main82141-22540i198808-198908
main82141-22550i198808-198908
W(DIGITAL SPEEDOMETER)
main82141-22610i198908-199008
main82141-22620i198908-199008
W(DIGITAL SPEEDOMETER)
main82141-22810i199008-199207
main82141-22820i199008-199207
82210CFUSIBLE LINK
main90982-08188i198808-198908
30A,TERM.:FEMALE,PNK,E/G BLOCK J/B
main90982-08189i198808-198908
40A,TERM.:FEMALE,GRN,E/G BLOCK J/B
main90982-08202i199008-199207
60A,TERM.:MALE,YEL,E/G ROOM F/L BLOCK
main90982-08246i198808-199207
100A,TERM.:MALE,BLUE,E/G ROOM F/L BLOCK
82345DIODE
main82345-12050i198808-199207
COWL,NO.1
main82345-22051×2i198808-199207
COWL,NO.3
main82345-32020×2i198808-199207
COWL,NO.5
82822BRACKET,CONNECTOR BLOCK
main82822-22140i198808-198908
LH
main82822-22150i198808-198908
W(ANTI-LOCK BRAKE SYSTEM),RH
main82822-22160i198808-198908
RH
main82822-22200i199008-199207
W(ANTI-LOCK BRAKE SYSTEM),RH
main82822-22210i199008-199207
LH
main82822-22240i199008-199207
RH
82823CAP, TERMINAL, NO.1
main82823-22060i198812-198908
main82823-22080i199008-199207
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8234512050DIODE
main82345-12050
8234522051DIODE
main82345-22051
8234532020DIODE
main82345-32020
9011906390
main90119-06390
9017906054
main90179-06054
9017906239
main90179-06239
9046705050
main90467-05050
9046708056
main90467-08056
9356715016
main93567-15016

21 parts on this diagram · 4 diagrams in section
