E
EPC Data

MUDGUARD & SPOILER

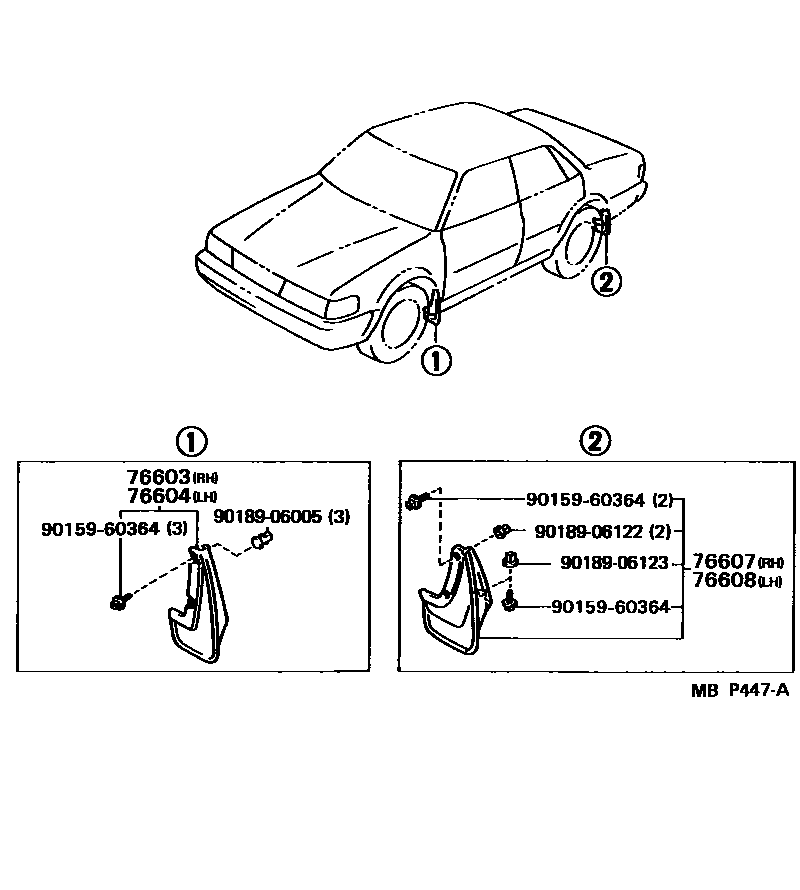

Parts diagram
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76621-29065-01i198808-199008
BLACK,202
main76621-29065-02i198808-199008
DARK RED MICA,3H3
main76621-29065-03i198808-199008
MIST GRAY M,177
main76621-29065-04i198808-199008
BLUE MICA,8E3
main76621-29065-05i199008-199009
BEIGE M.M,4J1
main76621-29065-06i198808-198908
SABLE M M,4K2
main76621-29065-08i198808-199009
SUPER WHITE 4,050
main76621-29065-12i198808-199008
RED MICA,3H4
main76621-29065-13i198808-199008
GRAY MICA M,170
main76621-29065-14i198808-199008
LIGHT BLUE M M,8G2
main76621-29065-16i198908-199008
DK BROWN M M,4L4
main76621-29065-18i198808-199009
WHITE PEARL MICA,049
main76621-29065-21i199008-199009
BLACK M,205
main76621-29065-23i198808-199008
SUPER SILVER 3 M,176
main76621-29065-24i199008-199009
BLUE M,869
main76621-29065-32i199008-199009
RED M.M,3J9
main76621-29065-42i199008-199009
DARK MAUVE MICA,3K1
main76621-29065-53i199008-199009
DARK BLUEISH GRAY M,183
main76621-29066-05i199009-199207
BEIGE M.M,4J1
main76621-29066-08i199009-199207
SUPER WHITE 4,050
main76621-29066-14i199009-199207
LIGHT BLUE M.M,8G2
main76621-29066-18i199009-199207
WHITE PEARL MICA,049
main76621-29066-21i199009-199207
BLACK M,205
main76621-29066-23i199009-199207
SUPER SILVER 3 M,176
main76621-29066-24i199009-199207
BLUE M,869
main76621-29066-32i199009-199207
RED M.M,3J9
main76621-29066-42i199009-199207
DARK MAUVE MICA,3K1
main76621-29066-53i199009-199207
DARK BLUISH GRAY M,183
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76622-29065-01i198808-199008
BLACK,202
main76622-29065-02i198808-199008
DARK RED MICA,3H3
main76622-29065-03i198808-199008
MIST GRAY M,177
main76622-29065-04i198808-199008
BLUE MICA,8E3
main76622-29065-05i199008-199009
BEIGE M.M,4J1
main76622-29065-06i198808-198908
SABLE M M,4K2
main76622-29065-08i198808-199009
SUPER WHITE 4,050
main76622-29065-12i198808-199008
RED MICA,3H4
main76622-29065-13i198808-199008
GRAY MICA M,170
main76622-29065-14i198808-199008
LIGHT BLUE M M,8G2
main76622-29065-16i198908-199008
DK BROWN M M,4L4
main76622-29065-18i198808-199009
WHITE PEARL MICA,049
main76622-29065-21i199008-199009
BLACK M,205
main76622-29065-23i198808-199008
SUPER SILVER 3 M,176
main76622-29065-24i199008-199009
BLUE M,869
main76622-29065-32i199008-199009
RED M.M,3J9
main76622-29065-42i199008-199009
DARK MAUVE MICA,3K1
main76622-29065-53i199008-199009
DARK BLUEISH GRAY M,183
main76622-29066-05i199009-199207
BEIGE M.M,4J1
main76622-29066-08i199009-199207
SUPER WHITE 4,050
main76622-29066-14i199009-199207
LIGHT BLUE M.M,8G2
main76622-29066-18i199009-199207
WHITE PEARL MICA,049
main76622-29066-21i199009-199207
BLACK M,205
main76622-29066-23i199009-199207
SUPER SILVER 3 M,176
main76622-29066-24i199009-199207
BLUE M,869
main76622-29066-32i199009-199207
RED M.M,3J9
main76622-29066-42i199009-199207
DARK MAUVE MICA,3K1
main76622-29066-53i199009-199207
DARK BLUISH GRAY M,183
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76625-29085-01i198808-199008
BLACK,202
main76625-29085-02i198808-199008
DARK RED MICA,3H3
main76625-29085-03i198808-199008
MIST GRAY M,177
main76625-29085-04i198808-199008
BLUE MICA,8E3
main76625-29085-05i199008-199009
BEIGE M.M,4J1
main76625-29085-06i198808-198908
SABLE M M,4K2
main76625-29085-08i198808-199009
SUPER WHITE 4,050
main76625-29085-12i198808-199008
RED MICA,3H4
main76625-29085-13i198808-199008
GRAY MICA M,170
main76625-29085-14i198808-199008
LIGHT BLUE M M,8G2
main76625-29085-16i198908-199008
DK BROWN M M,4L4
main76625-29085-18i198808-199009
WHITE PEARL MICA,049
main76625-29085-21i199008-199009
BLACK M,205
main76625-29085-23i198808-199008
SUPER SILVER 3 M,176
main76625-29085-24i199008-199009
BLUE M,869
main76625-29085-32i199008-199009
RED M.M,3J9
main76625-29085-42i199008-199009
DARK MAUVE MICA,3K1
main76625-29085-53i199008-199009
DARK BLUEISH GRAY M,183
main76625-29086-05i199009-199207
BEIGE M.M,4J1
main76625-29086-08i199009-199207
SUPER WHITE 4,050
main76625-29086-14i199009-199207
LIGHT BLUE M.M,8G2
main76625-29086-18i199009-199207
WHITE PEARL MICA,049
main76625-29086-21i199009-199207
BLACK M,205
main76625-29086-23i199009-199207
SUPER SILVER 3 M,176
main76625-29086-24i199009-199207
BLUE M,869
main76625-29086-32i199009-199207
RED M.M,3J9
main76625-29086-42i199009-199207
DARK MAUVE MICA,3K1
main76625-29086-53i199009-199207
DARK BLUISH GRAY M,183
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
main76626-29085-01i198808-199008
BLACK,202
main76626-29085-02i198808-199008
DARK RED MICA,3H3
main76626-29085-03i198808-199008
MIST GRAY M,177
main76626-29085-04i198808-199008
BLUE MICA,8E3
main76626-29085-05i199008-199009
BEIGE M.M,4J1
main76626-29085-06i198808-198908
SABLE M M,4K2
main76626-29085-08i198808-199009
SUPER WHITE 4,050
main76626-29085-12i198808-199008
RED MICA,3H4
main76626-29085-13i198808-199008
GRAY MICA M,170
main76626-29085-14i198808-199008
LIGHT BLUE M M,8G2
main76626-29085-16i198908-199008
DK BROWN M M,4L4
main76626-29085-18i198808-199009
WHITE PEARL MICA,049
main76626-29085-21i199008-199009
BLACK M,205
main76626-29085-23i198808-199008
SUPER SILVER 3 M,176
main76626-29085-24i199008-199009
BLUE M,869
main76626-29085-32i199008-199009
RED M.M,3J9
main76626-29085-42i199008-199009
DARK MAUVE MICA,3K1
main76626-29085-53i199008-199009
DARK BLUEISH GRAY M,183
main76626-29086-05i199009-199207
BEIGE M.M,4J1
main76626-29086-08i199009-199207
SUPER WHITE 4,050
main76626-29086-14i199009-199207
LIGHT BLUE M.M,8G2
main76626-29086-18i199009-199207
WHITE PEARL MICA,049
main76626-29086-21i199009-199207
BLACK M,205
main76626-29086-23i199009-199207
SUPER SILVER 3 M,176
main76626-29086-24i199009-199207
BLUE M,869
main76626-29086-32i199009-199207
RED M.M,3J9
main76626-29086-42i199009-199207
DARK MAUVE MICA,3K1
main76626-29086-53i199009-199207
DARK BLUISH GRAY M,183
9015960364
main90159-60364
9018906005
main90189-06005
9018906122
main90189-06122
9018906123
main90189-06123

8 parts on this diagram · 1 diagram in section
