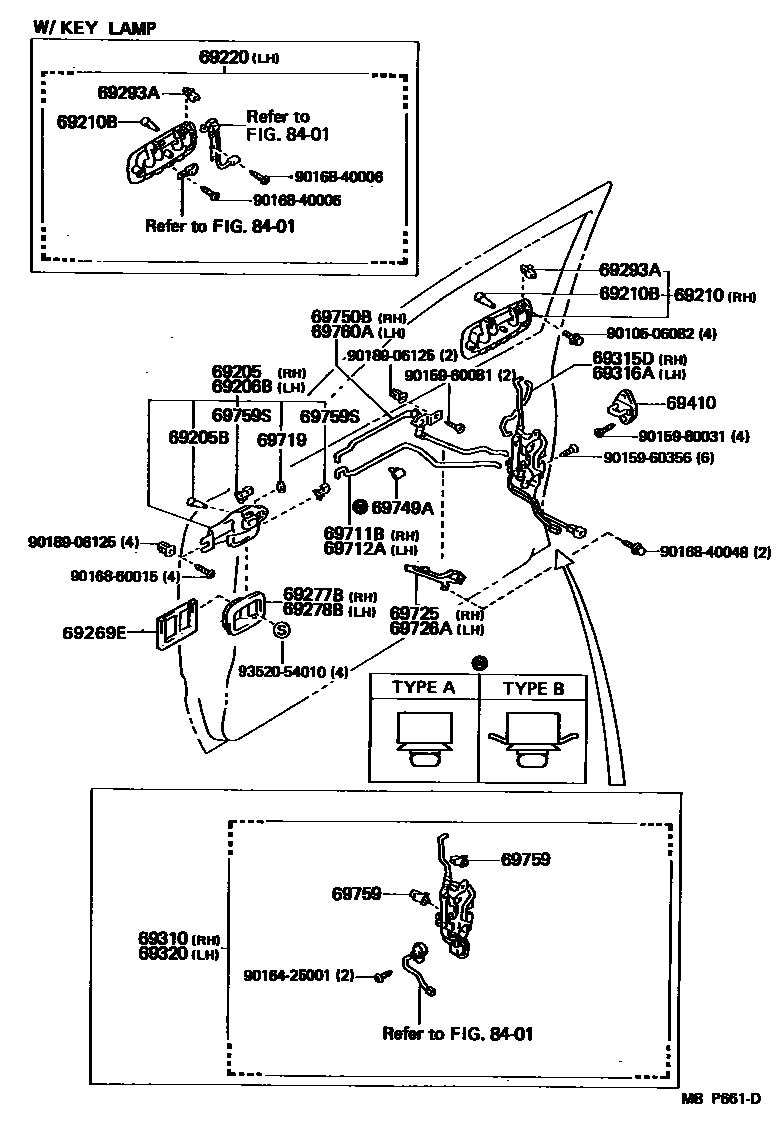

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
OD=8.5
OD=12
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
BLACK,202
DK. RED MICA,3H3
SUPER SILVER 3 M.,176
BLUE MICA,8E3
SABLE M. M.,4K2
WHITE PEARL MICA,049
BLACK M,205
RED MICA,3H4
MIST GRAY M.,177
LIGHT BLUE M. M.,8G2
DK. BROWN M. M.,4L4
SUPER WHITE 4,050
RED M.M,3J9
GRAY M. M.,170
BLUE M.,869
BEIGE M.M,4J1
DARK BLUISH GRAY M,183
DARK MAUVE MICA,3K1
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269ESEAL, FRONT DOOR INSIDE HANDLE
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69719CUSHION, DOOR LOCK CONTROL
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
TYPE A
TYPE B
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
NATURAL
BLUE
GREEN
GRAY
8401
9010506082
main90105-06082
9015960081
main90159-60081
9015960356
main90159-60356
9015980031
main90159-80031
9016425001
main90164-25001
9016840006
main90168-40006
9016840048
main90168-40048
9016860015
main90168-60015
9018906125
main90189-06125
9352054010
main93520-54010
36 parts on this diagram · 1 diagram in section
