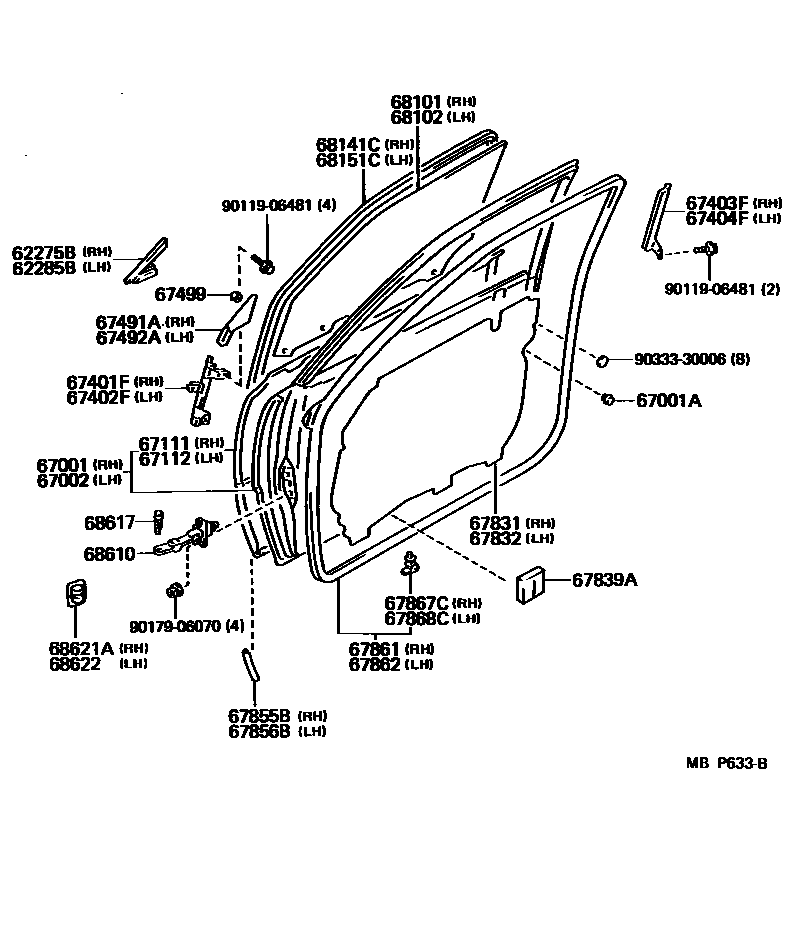

FRONT DOOR PANEL & GLASS
62275BCOVER, SIDE WINDOW, RH
62285BCOVER, SIDE WINDOW, LH
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
BLACK,TRIM3#,4#,8#
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
BLACK,TRIM3#,4#,8#
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67839ACOVER, FRONT DOOR SERVICE HOLE, LOWER
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0
*TEM,T=4.0,BRONZE
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0
*TEM,T=4.0,BRONZE
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
9011906481
main90119-06481
9017906070
main90179-06070
9033330006
main90333-30006
34 parts on this diagram · 2 diagrams in section
