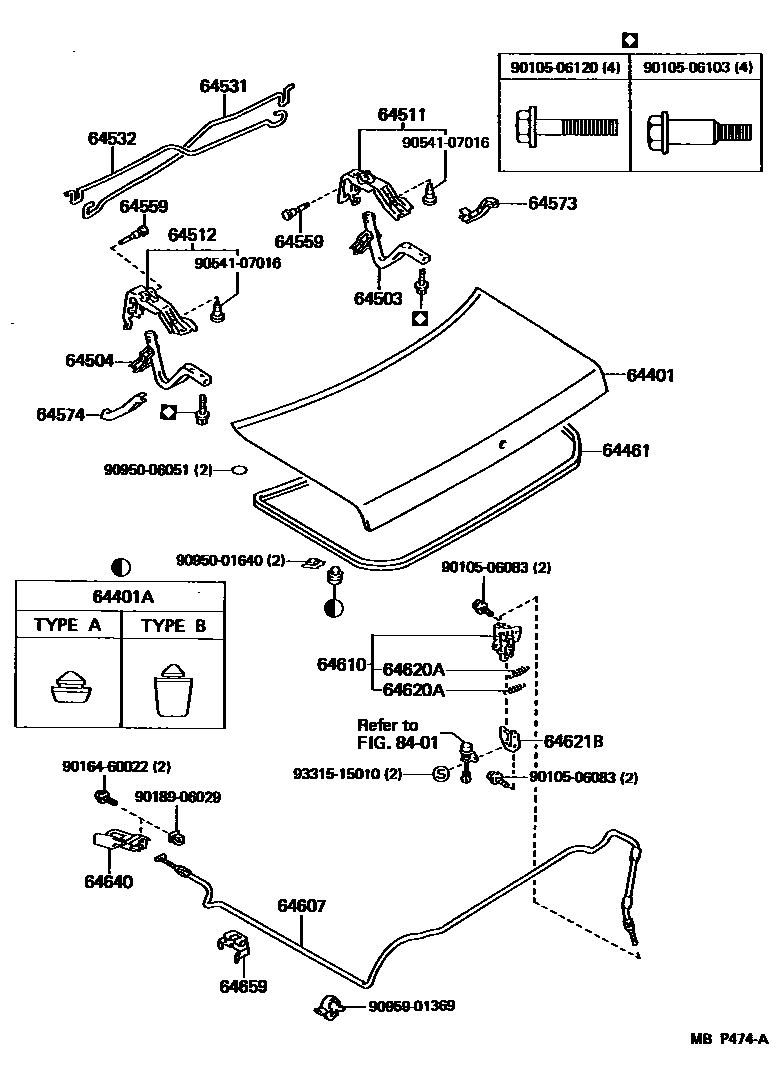

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
TYPE A
TYPE B
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64573PROTECTOR, LUGGAGE DOOR OPENER CABLE, RH
64574PROTECTOR, LUGGAGE DOOR OPENER CABLE, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
YELLOW
WHITE
GREEN
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64640OPENER ASSY, LUGGAGE DOOR LOCK
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
64659BRACKET, LUGGAGE CONTROL CABLE, LH
8401SWITCH & RELAY & COMPUTER
9010506083
main90105-06083
9010506103
main90105-06103
9010506120
main90105-06120
9016460022
main90164-60022
9018906029
main90189-06029
9054107016
main90541-07016
9095001640
main90950-01640
9095006051
main90950-06051
9095901369
main90959-01369
9331515010
main93315-15010
29 parts on this diagram · 1 diagram in section
