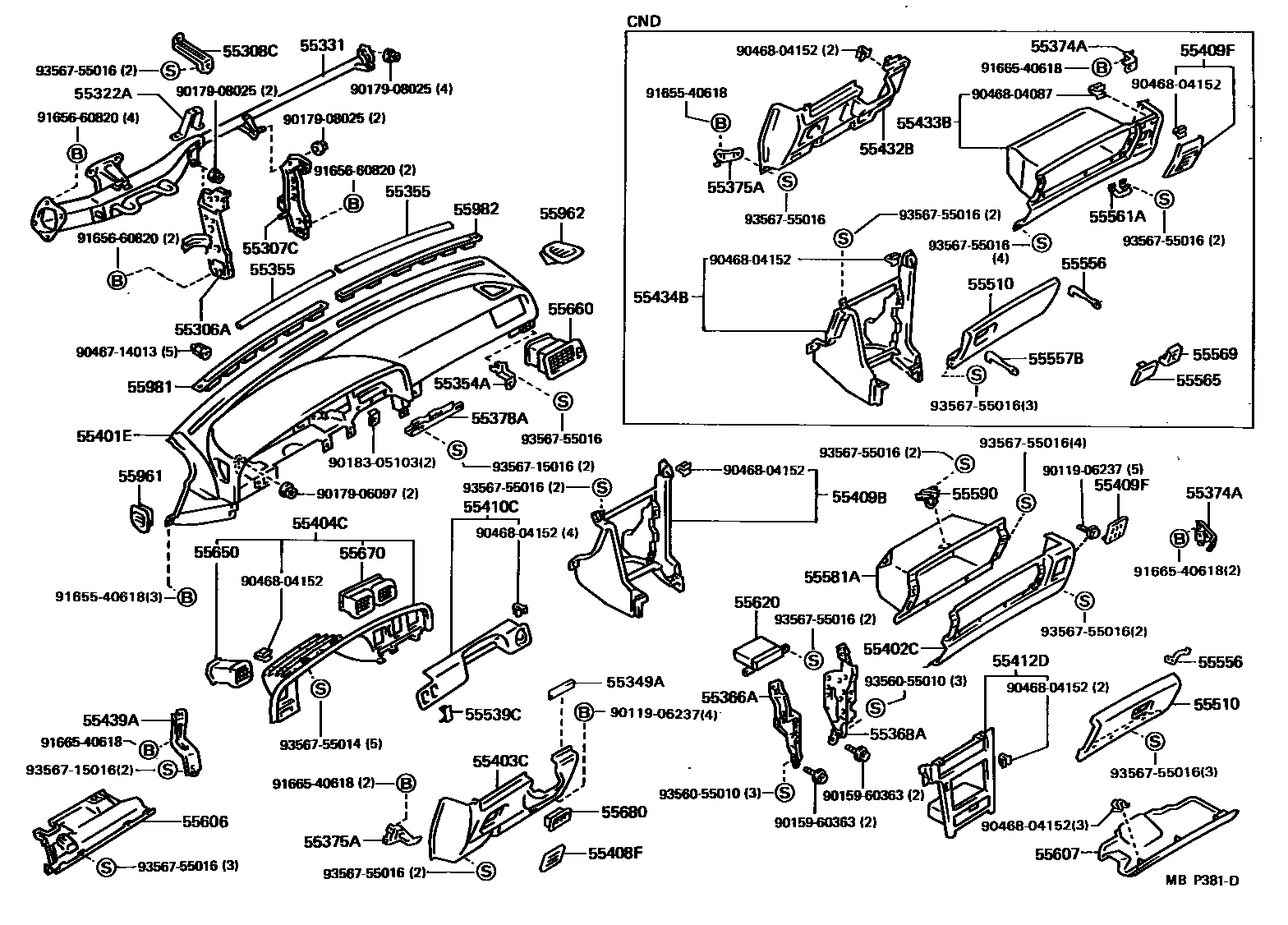

INSTRUMENT PANEL & GLOVE COMPARTMENT

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-22170iMX83..CND198808-199207

main55306-22180iMX83..USA198808-199207

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-22220iMX83..CND198808-199207

main55307-22230iMX83..USA198808-199207

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-22120iMX83..CND198808-199207

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-22050iMX83..USA198808-199207

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-22120iMX83..CND198808-199207

main55330-22130iMX83..USA198808-199207

55349ACUSHION, INSTRUMENT PANEL

main55349-16010×2iMX83..USA198808-199207

55354ABRACKET, SPEAKER MOUNTING, NO.2

main55354-22010iMX83..USA198808-199207

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-20060×2iMX83..USA198808-199207

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-22070iMX83198808-199207

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-22050iMX83198808-199207

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-22060iMX83..CND198808-199207

main55374-22070iMX83..USA198808-199207

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-22060iMX83..CND198808-199207

main55375-22070iMX83..USA198808-199207

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-22080iMX83198808-199207

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-22250-02iMX83198808-199207

NEW MAROON,TRIM3#

main55401-22250-03iMX83..USA198808-199008

MEDIUM GRAY,TRIM1#

main55401-22250-04iMX83198808-199008

DARK BLUE,TRIM8#

main55401-22250-06iMX83198808-198908

SABLE,TRIM4#

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-22040-02iMX83..USA198808-199207

NEW MAROON,TRIM3#

main55402-22040-03iMX83..USA198808-199207

MEDIUM GRAY,TRIM1#

main55402-22040-04iMX83..USA198808-199207

DARK BLUE,TRIM8#

main55402-22040-06iMX83..USA198808-199207

SABLE,TRIM4#

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-22040-02iMX83..USA198808-199207

NEW MAROON,TRIM3#

main55403-22040-03iMX83..USA198808-199207

MEDIUM GRAY,TRIM1#

main55403-22040-04iMX83..USA198808-199207

DARK BLUE,TRIM8#

main55403-22040-06iMX83..USA198808-199207

SABLE,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-22110iMX83198808-199008

main55404-22150iMX83199008-199207

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-22100-02iMX83..CND198808-199207

NEW MAROON,TRIM3#

main55408-22100-03iMX83..CND199008-199207

MEDIUM GRAY,TRIM1#

main55408-22100-04iMX83..CND198808-199008

DARK BLUE,TRIM8#

main55408-22100-06iMX83..CND199008-199207

SABLE,TRIM4#

main55472-22050-02iMX83..USA198808-199207

NEW MAROON,TRIM3#

main55472-22050-03iMX83..USA198808-199207

MEDIUM GRAY,TRIM1#

main55472-22050-04iMX83..USA198808-199207

DARK BLUE,TRIM8#

main55472-22050-06iMX83..USA198808-199207

SABLE,TRIM4#

55409BPAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER

main55409-22140-02iMX83..USA198808-199207

NEW MAROON,TRIM3#

main55409-22140-03iMX83..USA198808-199207

MEDIUM GRAY,TRIM1#

main55409-22140-04iMX83..USA198808-199207

DARK BLUE,TRIM8#

main55409-22140-06iMX83..USA198808-199207

SABLE,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-22130-02iMX83..CND198808-199207

NEW MAROON,TRIM3#

main55409-22130-03iMX83..CND199008-199207

MEDIUM GRAY,TRIM1#

main55409-22130-04iMX83..CND198808-199008

DARK BLUE,TRIM8#

main55409-22130-06iMX83..CND198808-198908

SABLE,TRIM4#

main55473-22110-02iMX83..USA198808-199207

NEW MAROON,TRIM3#

main55473-22110-03iMX83..USA198808-199207

MEDIUM GRAY,TRIM1#

main55473-22110-04iMX83..USA198808-199207

DARK BLUE,TRIM8#

main55473-22110-06iMX83..USA198808-199207

SABLE,TRIM4#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-22200iMX83..USA198808-199207

main55410-22230iMX83..CND198808-199207

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-22170iMX83198808-199008

main55412-22270iMX83199008-199207

main55412-22280iMX83..CND199008-199207

W(SEAT HEATER)

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55046-22020-02iMX83..CND198808-199207

NEW MAROON,TRIM3#

main55046-22020-03iMX83..CND199008-199207

MEDIUM GRAY,TRIM1#

main55046-22020-04iMX83..CND198808-199008

DARK BLUE,TRIM8#

main55046-22020-06iMX83..CND198808-198908

SABLE,TRIM4#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-22120-02iMX83..CND198808-199207

NEW MAROON,TRIM3#

main55433-22120-03iMX83..CND199008-199207

MEDIUM GRAY,TRIM1#

main55433-22120-04iMX83..CND198808-199008

DARK BLUE,TRIM8#

main55433-22120-06iMX83..CND199008-199207

SABLE,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-22100-02iMX83..CND198808-199207

NEW MAROON,TRIM3#

main55434-22100-03iMX83..CND199008-199207

MEDIUM GRAY,TRIM1#

main55434-22100-04iMX83..CND198808-199008

DARK BLUE,TRIM8#

main55434-22100-06iMX83..CND198808-198908

SABLE,TRIM4#

55439ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3

main55439-22050iMX83198808-199207

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-22130-02iMX83..CND198808-199207

NEW MAROON,TRIM3#

main55550-22130-03iMX83..CND199008-199207

MEDIUM GRAY,TRIM1#

main55550-22130-04iMX83..CND198808-199008

DARK BLUE,TRIM8#

main55550-22130-06iMX83..CND199008-199207

SABLE,TRIM4#

main55550-22150-02iMX83..USA198808-199207

NEW MAROON,TRIM3#

main55550-22150-03iMX83..USA198808-199207

MEDIUM GRAY,TRIM1#

main55550-22150-04iMX83..USA198808-199207

DARK BLUE,TRIM8#

main55550-22150-06iMX83..USA198808-199207

SABLE,TRIM4#

55539CCOVER, SPARE SWITCH HOLE

main55539-22060iMX83..USA198808-199207

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-22090iMX83..CND198808-199207

main55556-22100iMX83..USA198808-199207

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-22010iMX83..CND198808-199207

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-22030iMX83..CND198808

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22020-02iMX83..CND198808-199207

NEW MAROON,TRIM3#

main55565-22020-03iMX83..CND199008-199207

MEDIUM GRAY,TRIM1#

main55565-22020-04iMX83..CND198808-199008

DARK BLUE,TRIM8#

main55565-22020-06iMX83..CND199008-199207

SABLE,TRIM4#

main55565-22020-B0iMX83..CND199106-199207

MEDIUM GRAY,TRIM1#

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22030-02iMX83..CND198808-199207

NEW MAROON,TRIM3#

main55569-22030-03iMX83..CND199008-199207

MEDIUM GRAY,TRIM1#

main55569-22030-04iMX83..CND198808-199008

DARK BLUE,TRIM8#

main55569-22030-06iMX83..CND198808-198908

SABLE,TRIM4#

55581ACOMPARTMENT, GLOVE

main55581-22130iMX83..USA198808-199207

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-22020iMX83..USA198808-199207

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-22120iMX83198808-199207

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-22080-02iMX83198808-199207

NEW MAROON,TRIM3#

main55607-22080-03iMX83..USA198808-199008

MEDIUM GRAY,TRIM1#

main55607-22080-04iMX83198808-199008

DARK BLUE,TRIM8#

main55607-22080-06iMX83198808-198908

SABLE,TRIM4#

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-22020iMX83198808-199207

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22130iMX83198808-199207

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-22130-02iMX83198808-199207

NEW MAROON,TRIM3#

main55660-22130-03iMX83199008-199207

MEDIUM GRAY,TRIM1#

main55660-22130-04iMX83..USA199008-199207

DARK BLUE,TRIM8#

main55660-22130-06iMX83199008-199207

SABLE,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22150iMX83198808-199207

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-16iMX83..CND198808-198908

SABLE,TRIM4#

main55680-14030-22iMX83..CND198808-199207

NEW MAROON,TRIM3#

main55680-14030-24iMX83..CND198808-199008

DARK BLUE,TRIM8#

main55680-14030-B0iMX83..CND199008-199207

MEDIUM GRAY,TRIM1#

main55680-22020-02iMX83..USA198808-199207

NEW MAROON,TRIM3#

main55680-22020-03iMX83..USA198808-199207

MEDIUM GRAY,TRIM1#

main55680-22020-04iMX83..USA198808-199207

DARK BLUE,TRIM8#

main55680-22020-06iMX83..USA198808-199207

SABLE,TRIM4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22070-02iMX83198808-199207

NEW MAROON,TRIM3#

main55961-22070-03iMX83199008-199207

MEDIUM GRAY,TRIM1#

main55961-22070-04iMX83..USA199008-199207

DARK BLUE,TRIM8#

main55961-22070-06iMX83198808-198908

SABLE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22070-02iMX83198808-199207

NEW MAROON,TRIM3#

main55962-22070-03iMX83199008-199207

MEDIUM GRAY,TRIM1#

main55962-22070-04iMX83198808-199008

DARK BLUE,TRIM8#

main55962-22070-06iMX83198808-198908

SABLE,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-22020-02iMX83198808-199207

NEW MAROON,TRIM3#

main55981-22020-03iMX83..USA198808-199008

MEDIUM GRAY,TRIM1#

main55981-22020-04iMX83198808-199008

DARK BLUE,TRIM8#

main55981-22020-06iMX83198808-198908

SABLE,TRIM4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-22020-02iMX83198808-198904

NEW MAROON,TRIM3#

main55982-22020-03iMX83..USA198808-198904

MEDIUM GRAY,TRIM1#

main55982-22020-04iMX83198808-198904

DARK BLUE,TRIM8#

main55982-22020-06iMX83198808-198904

SABLE,TRIM4#

main55982-22021-02iMX83198904-199207

NEW MAROON,TRIM3#

main55982-22021-03iMX83199008-199207

MEDIUM GRAY,TRIM1#

main55982-22021-04iMX83198904-199008

DARK BLUE,TRIM8#

main55982-22021-06iMX83198904-198908

SABLE,TRIM4#

9011906237

main90119-06237

9015960363

main90159-60363

9017906097

main90179-06097

9017908025

main90179-08025

9018305103

main90183-05103

9046714013

main90467-14013

9046804087

main90468-04087

9046804152

main90468-04152

9165540618

main91655-40618

9165660820

main91656-60820

9166540618

main91665-40618

9356055010

main93560-55010

9356715016

main93567-15016

9356755014

main93567-55014

9356755016

main93567-55016

61 parts on this diagram · 1 diagram in section
