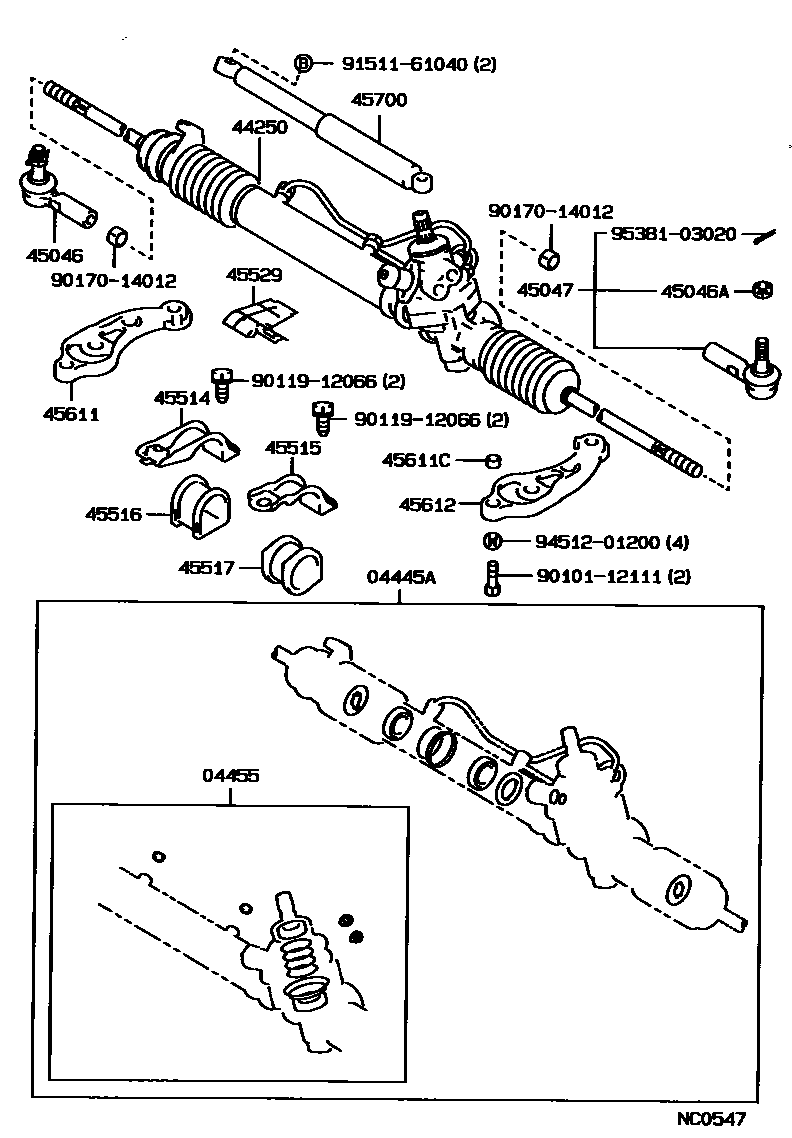

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-22120iMX83198808-199008

main04445-22140iMX83199008-199207

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-22070iMX83198808-199104

main04455-22071iMX83199104-199207

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-22231iMX83198808-199008

main44250-22232iMX83199008-199207

45046END SUB-ASSY, TIE ROD, RH

main45046-29205iMX83198808-199207

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iMX83198808-199207

45047END SUB-ASSY, TIE ROD, LH

main45046-29205iMX83198808-199207

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-22100iMX83198808-199207

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22080iMX83..USA198808-199207

CARIFORNIA SPEC

main45515-22100iMX83198808-199207

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-22010iMX83198808-199008

main45516-22011iMX83199008-199207

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22030iMX83198808-199008

main45517-22031iMX83199008-199207

45529INSULATOR, STEERING RACK BOOT HEAT

main45529-22010iMX83..USA198808-199207

CARIFORNIA SPEC

45611ARM, STEERING KNUCKLE, RH

main45611-22110iMX83198808-199010

main45611-22111iMX83199010-199207

45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90253-15016×4iMX83198808-199111

45612ARM, STEERING KNUCKLE, LH

main45612-22110iMX83198808-199010

main45612-22111iMX83199010-199207

45700DAMPER ASSY, STEERING

main45700-22010iMX83198808-199207

9010112111

main90101-12111

9011912066

main90119-12066

9017014012

main90170-14012

9151161040

main91511-61040

9451201200

main94512-01200

9538103020

main95381-03020

21 parts on this diagram · 2 diagrams in section
