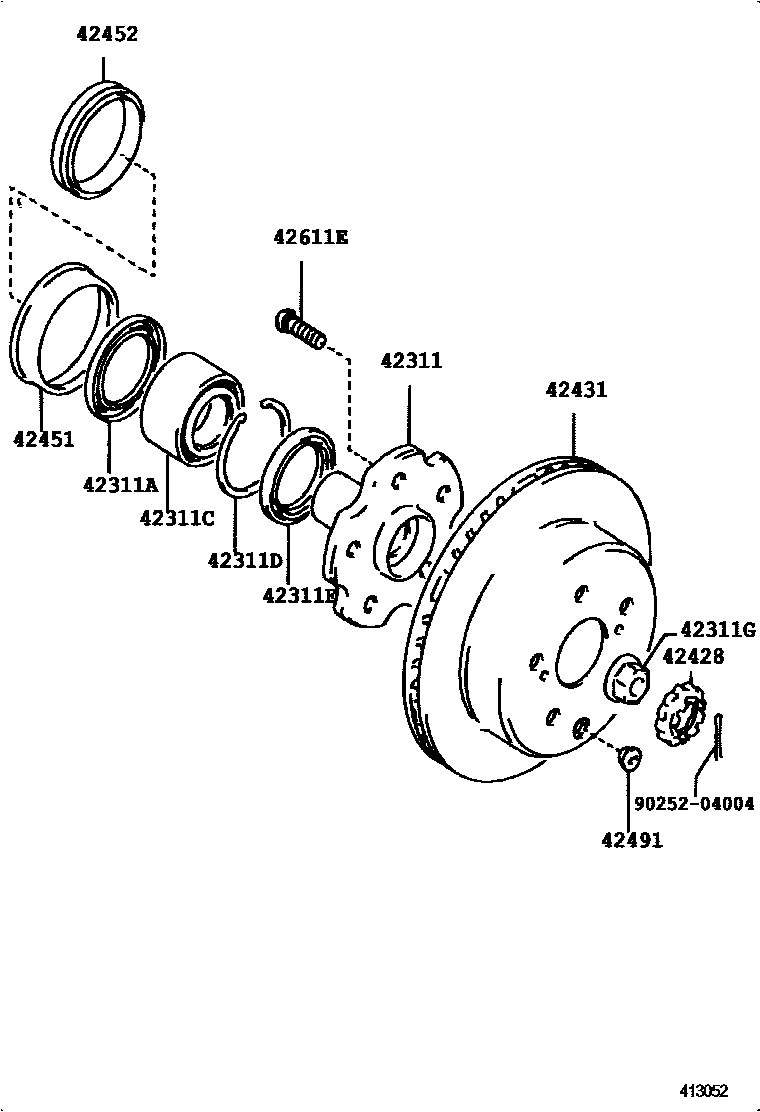

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311SHAFT, REAR AXLE

main42311-22120×2iMX83198808-199008

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-63001×2iMX83198808-199207

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-43005×2iMX83198808-199207

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90521-85002×2iMX83198808-199207

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90311-57001×2iMX83198808-199207

42311GNUT(FOR REAR AXLE SHAFT)

main90179-24007×2iMX83198808-199207

42428PLATE, REAR AXLE LOCK NUT

main42428-22010×2iMX83198808-199207

42431DISC, REAR

main42431-22090×2iMX83198808-199008

main42431-22120×2iMX83199008-199207

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-14010×2iMX83198808-199207

42452DEFLECTOR, REAR WHEEL BEARING DUST, NO.2

main42452-14010×2iMX83198808-199207

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iMX83198808-199207

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02049×10iMX83198808-199008

9025204004

main90252-04004

13 parts on this diagram · 2 diagrams in section
