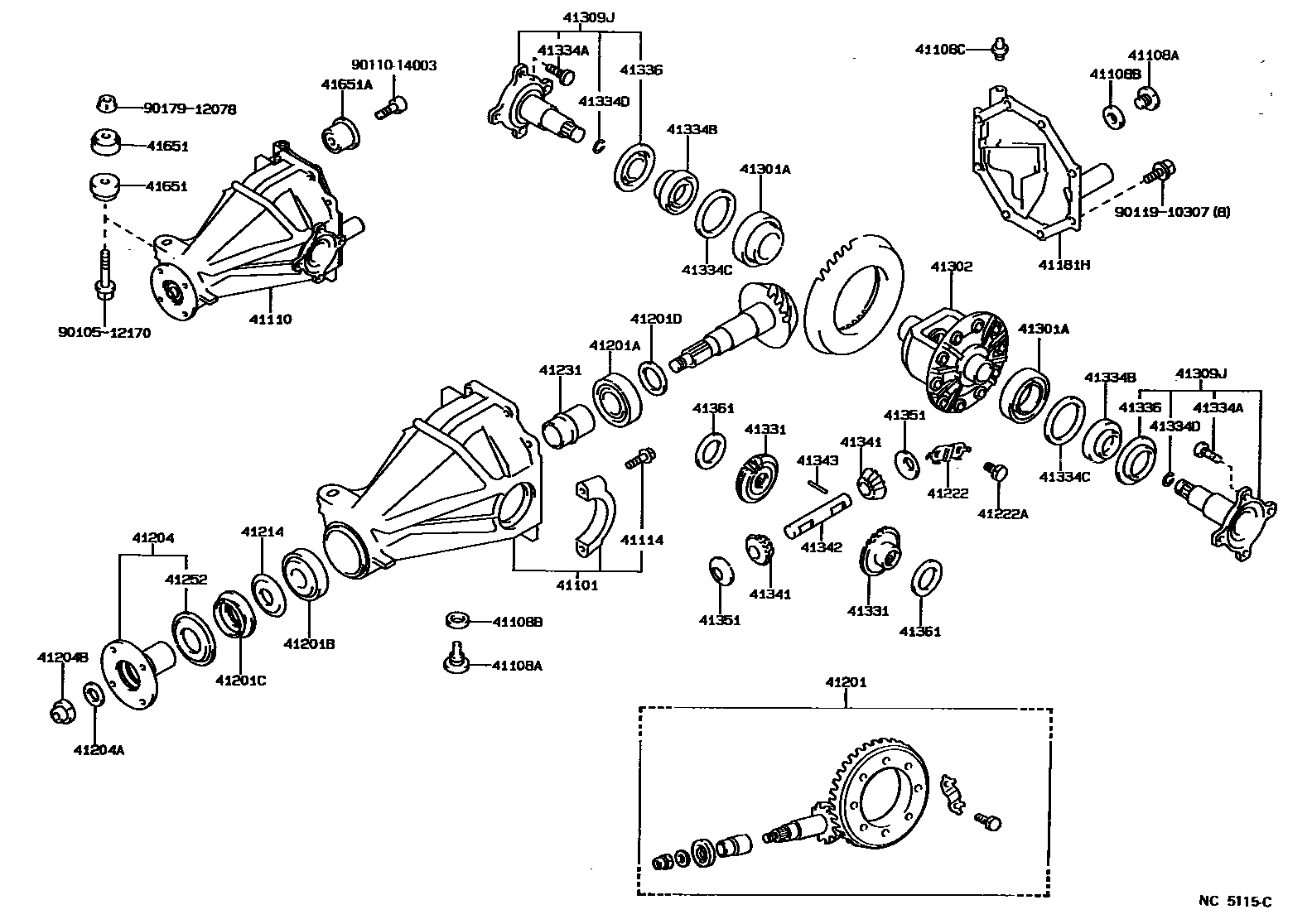

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
FILLER
DRAIN
41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=43:11=3.909
*FGR=43:11=3.909
*FGR=43:11=3.909
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41181HCOVER, REAR DIFFERENTIAL CARRIER
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=43:11=3.909
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
OD=37
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
W(LSD)
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
W(LSD)
41309JSHAFT, DIFFERENTIAL SIDE GEAR
W(LSD)
41331GEAR, REAR DIFFERENTIAL SIDE
W(LSD)
41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.58,MARK 01
T=2.61,MARK 02
T=2.64,MARK 03
T=2.67,MARK 04
T=2.70,MARK 05
T=2.73,MARK 06
T=2.76,MARK 07
T=2.79,MARK 08
T=2.82,MARK 09
T=2.85,MARK 10
T=2.88,MARK 11
T=2.91,MARK 12
T=2.94,MARK 13
T=2.97,MARK 14
T=3.00,MARK 15
T=3.03,MARK 16
T=3.06,MARK 17
T=3.09,MARK 18
T=3.12,MARK 19
T=3.15,MARK 20
T=3.18,MARK 21
T=3.21,MARK 22
T=3.24,MARK 23
T=3.27,MARK 24
T=3.30,MARK 25
T=3.33,MARK 26
T=3.36,MARK 27
T=3.39,MARK 28
T=3.42,MARK 29
T=3.45,MARK 30
T=3.48,MARK 31
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.8
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41341PINION, REAR DIFFERENTIAL
W(LSD)
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
W(LSD)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.80,W(LSD)
T=1.8,W(LSD)
T=1.6
T=1.7
T=1.8
41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
UPR
LWR
41651ACUSHION, REAR DIFFERENTIAL MOUNT, NO.2
9010512170
main90105-12170
9011014003
main90110-14003
9011910307
main90119-10307
9017912078
main90179-12078
40 parts on this diagram · 2 diagrams in section
