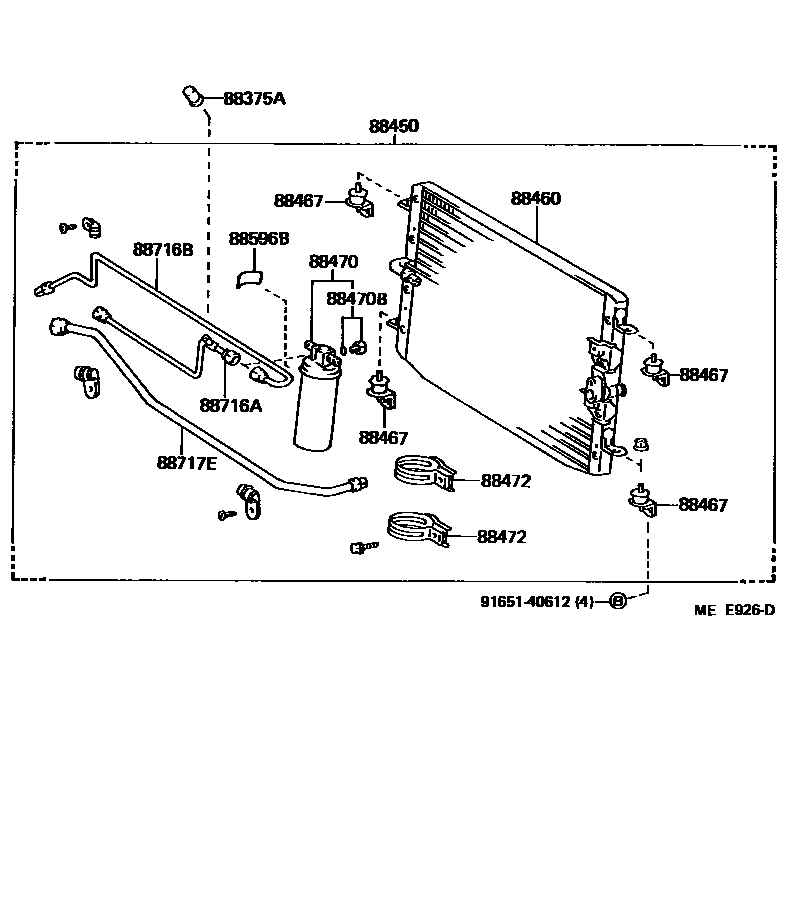

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-20010iMX7#198703-198808

main88375-30270iMX7#198408-198703

88450CONDENSER ASSY, W/RECEIVER

main88460-22250iMX7#198408-198501

main88460-22251iMX7#198501-198508

88460CONDENSER ASSY, COOLER

main88460-22270iMX7#198408-198501

main88460-22271iMX7#198501-198508

main88460-22301iMX7#198508-198808

88467CUSHION, COOLER CONDENSER, NO.1

main88467-22060×4iMX7#198408-198808

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iMX7#198408-198808

88470BBOLT, FUSE

main88475-12020iMX7#198408-198808

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090×2iMX7#198408-198808

88596BPLATE, CAUTION, NO.1

main88596-14010iMX7#198508-198608

BLOWER

main88723-12010iMX7#198608-198808

RECEIVER

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22430iMX7#198408-198508

main88716-22580iMX7#198508-198608

main88716-22581iMX7#198608-198703

main88716-22582iMX7#198703-198808

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-22460iMX7#198408-198508

main88716-22490iMX7#198508-198608

main88716-22491iMX7#198608-198808

88717EPIPE, COOLER REFRIGERANT SUCTION, E

main88717-22250iMX7#198408-198508

main88717-22310iMX7#198508-198608

main88717-22311iMX7#198608-198803

main88717-22312iMX73198803-198808

9165140612

main91651-40612

12 parts on this diagram · 3 diagrams in section
