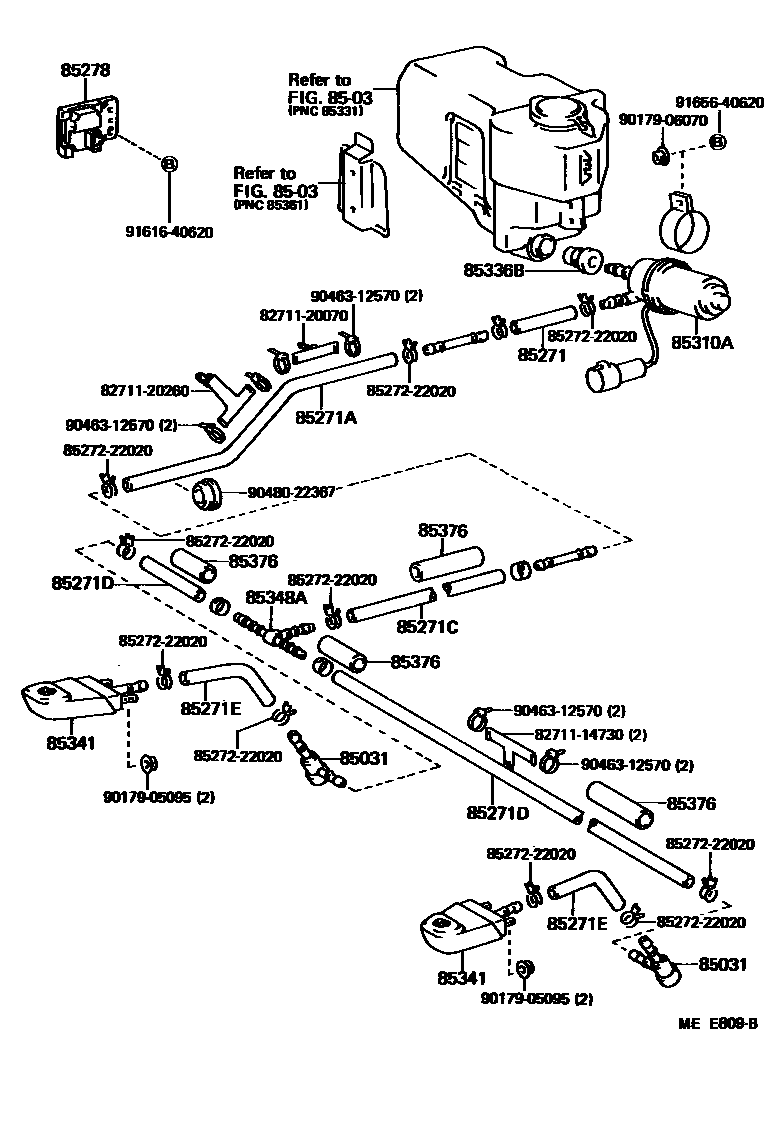

HEADLAMP CLEANER

0001 1 0002 1

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020×2iMX73198608-198808

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-20190iMX7#198408-198608

L=90

85271AHOSE, HEADLAMP CLEANER, NO.2

main85375-22080iMX7#198408-198608

85271CHOSE, HEADLAMP CLEANER, NO.4

main85375-22150iMX73198608-198808

L=300

85271DHOSE, HEADLAMP CLEANER, NO.5

main85271-20020iMX73198608-198808

RH

main85375-28010iMX73198608-198808

LH

main90445-14037iMX7#198408-198608

L=1320(*H,L=940)

main90445-14055iMX7#198408-198608

L=60

85271EHOSE, HEADLAMP CLEANER, NO.6

main85271-22020×2iMX7#198408-198608

main85343-95700×2iMX73198608-198808

L=135

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-22070iMX7#198408-198608

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-22100iMX7#198408-198608

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iMX7#198408-198608

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-22130×2iMX7#198408-198608

main85035-22180×2iMX73198608-198808

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iMX7#198408-198608

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-22140iMX7#198408-198608

L=120

main85376-22150iMX7#198408-198608

L=70

main85377-22150iMX7#198408-198608

L=200

main85378-22150iMX7#198408-198608

L=30

8271114730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14730

8271120070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20070

8271120260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20260

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

9017905095

main90179-05095

9017906070

main90179-06070

9046312570

main90463-12570

9048022367

main90480-22367

9161640620

main91616-40620

9165640620

main91656-40620

23 parts on this diagram · 2 diagrams in section
