ELECTRONIC MODULATED SUSPENSION

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-22010×2iMX73..MTM198408-198508

89243COMPUTER, ABSORBER CONTROL

main89243-22020iMX73..MTM198408-198508

main89243-22021iMX73..USA198508-198608

main89243-22040iMX73..USA198608-198808

89245SENSOR, STEERING

main89245-22010iMX73..MTM198408-198508

89246DISC, SENSOR STEERING

main89246-22010iMX73..MTM198408-198508

89249SWITCH, ABSORBER CONTROL

main89249-22020iMX73..MTM198408-198508

main89249-22040iMX73..USA198608-198808

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10090iMX73..USA198608-198808

12V 1.8W,12V 1.8W

9052027001

main90520-27001

9165540616

main91655-40616

9331514012

main93315-14012

9356755016

main93567-55016

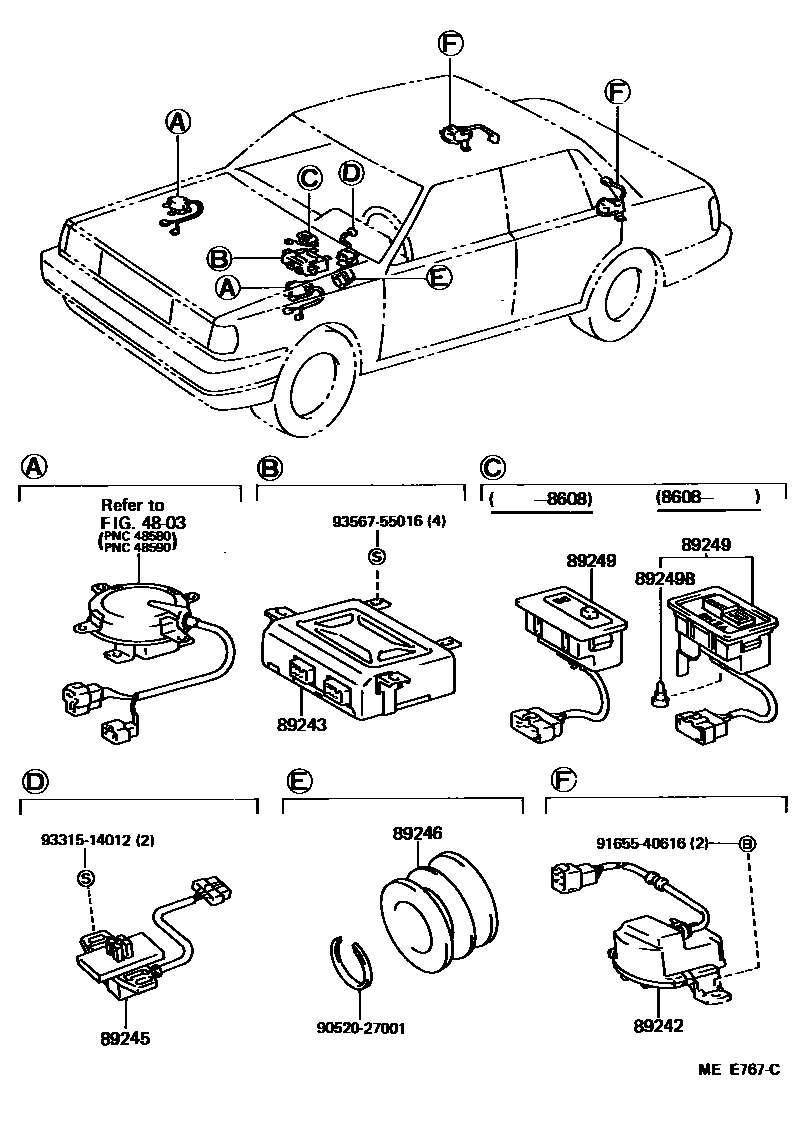

11 parts on this diagram · 1 diagram in section
