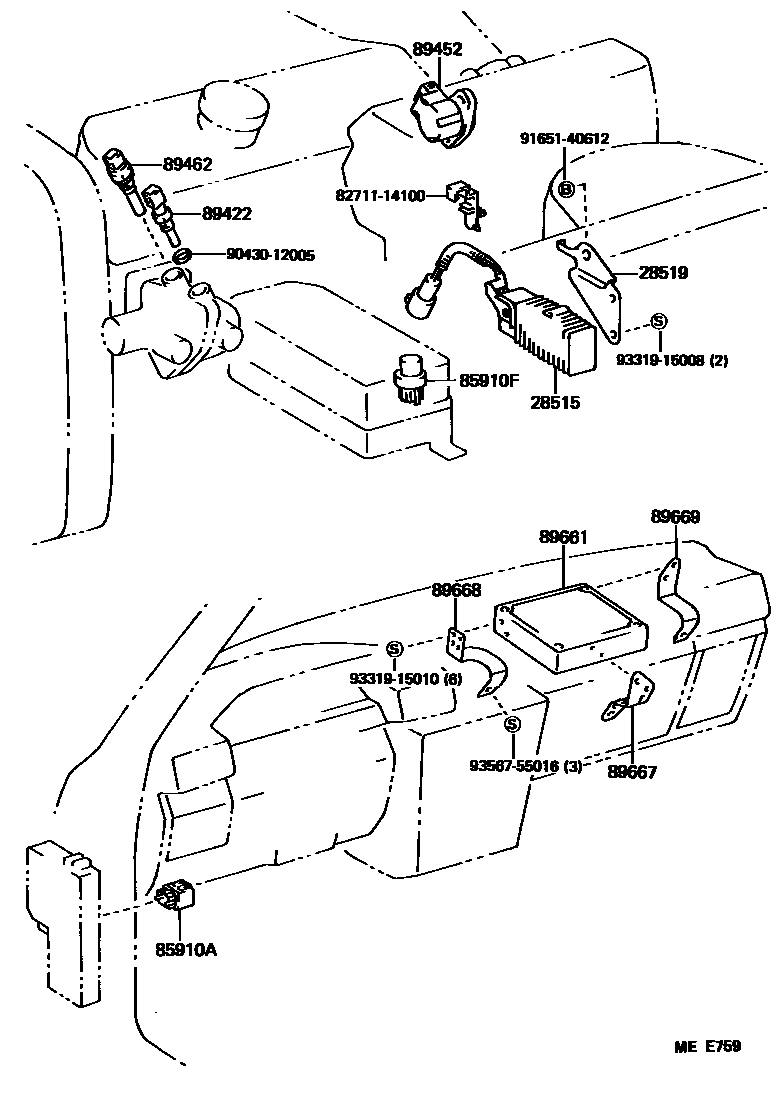

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-43030i5MGE..MX7#198408-198808

28519BRACKET, SOLENOID RESISTOR

main28519-22080i5MGE..MX7#198408-198808

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iMX7#198408-198808

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iMX7#198408-198808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iMX7#198408-198808

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-28010iMX7#198408-198508

main89452-28040iMX7#198508-198808

89462SWITCH, START INJECTOR TIME

main89462-30011iMX7#198408-198808

89661COMPUTER, ENGINE CONTROL

main89661-22080iMX73..MTM198408-198608

main89661-22081iMX73..MTM198608-198708

main89661-22090iMX7#..ATM198408-198508

main89661-30160iMX7#..ATM198508-198608

main89661-30161iMX7#..ATM198608-198808

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-22040iMX7#198408-198808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-22100iMX7#198408-198608

main89668-22120iMX7#198608-198808

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89668-22110iMX7#198408-198608

main89668-22130iMX7#198608-198808

8271114100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14100

9043012005

main90430-12005

9165140612

main91651-40612

9331915008

main93319-15008

9331915010

main93319-15010

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
