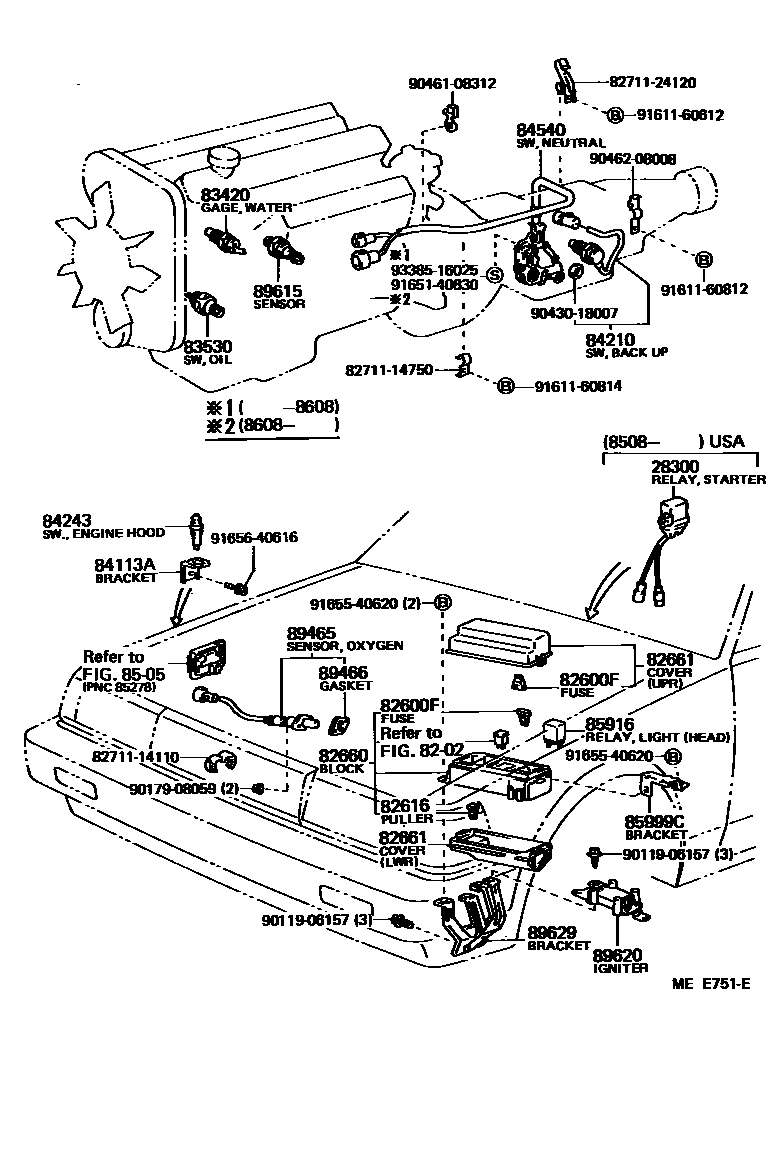

SWITCH & RELAY & COMPUTER
28300RELAY ASSY, STARTER
8202WIRING & CLAMP
82600FFUSE, FUSE BLOCK
10A,10A
15A,15A
20A,YELLOW,20A
7.5A,7.5A
82616PULLER, FUSE
82660BLOCK ASSY, RELAY, ENGINE ROOM
82661COVER, RELAY BLOCK, NO.1
UPR
UPR
LWR
LWR
UPR,W/CD PLAYER
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84113ABRACKET, SWITCH, NO.1
84210SWITCH ASSY, BACK-UP LAMP
84243SWITCH, ENGINE HOOD
84540SWITCH ASSY, NEUTRAL START
8505HEADLAMP CLEANER
85916RELAY, LIGHT CONTROL
TAIL,MARUKO
TAIL,DENSO
HEAD
85999BRACKET, COMBINATION RELAY
89465SENSOR, OXYGEN
89466GASKET, OXYGEN SENSOR
89615SENSOR, KNOCK CONTROL
89620IGNITER ASSY
89629BRACKET, IGNITER ASSY
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14750
8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24120
9011906157
main90119-06157
9017908059
main90179-08059
9043018007
main90430-18007
9046108312
main90461-08312
9046208008
main90462-08008
9161160612
main91611-60612
9161160812
main91611-60812
9165140830
main91651-40830
9165540620
main91655-40620
9165640616
main91656-40616
9181160814
main91811-60814
9338516025
main93385-16025
36 parts on this diagram · 5 diagrams in section
