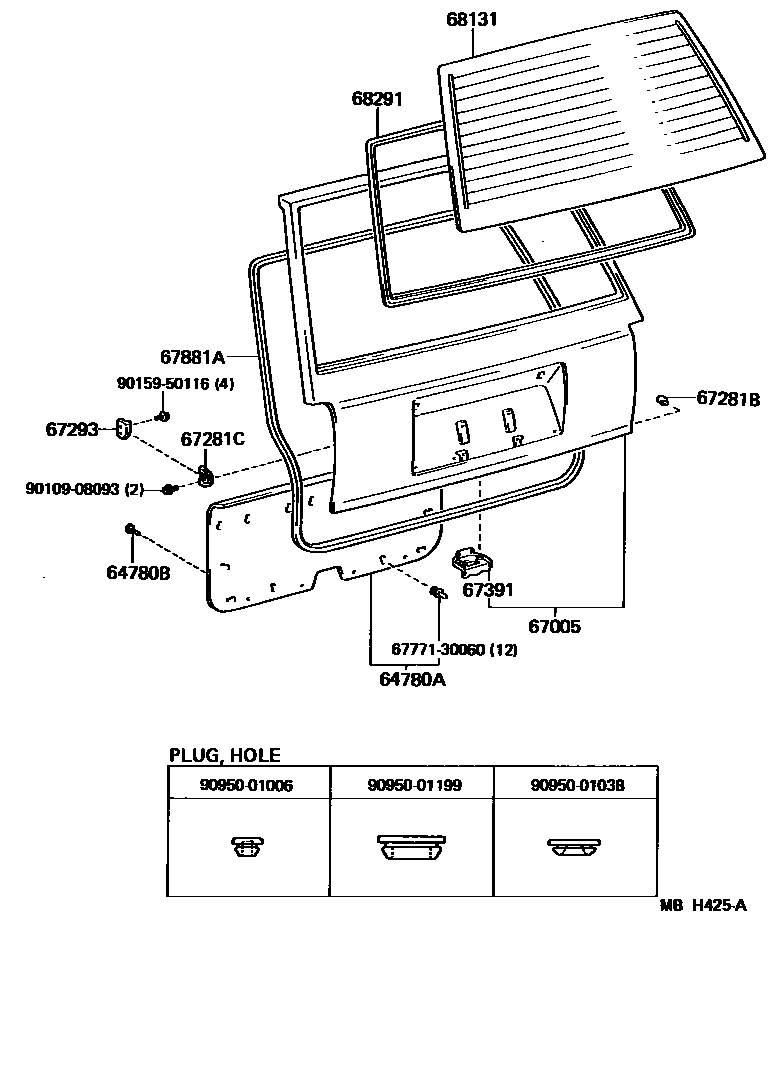

BACK DOOR PANEL & GLASS

64780APANEL ASSY, BACK DOOR TRIM

main64780-23020-02iMX72198411-198508

MAROON,MAROON

main64780-23020-03iMX72198411-198508

GRAY,COOL GRAY

main64780-23020-05iMX72198411-198508

BEIGE,BEIGE

main64780-23040-02iMX72198508-198601

MAROON,MAROON

main64780-23040-03iMX72198508-198601

GRAY,COOL GRAY

main64780-23040-05iMX72198508-198601

BEIGE,BEIGE

main64780-23041-02iMX72198601-198608

MAROON,MAROON

main64780-23041-03iMX72198601-198608

GRAY,COOL GRAY

main64780-23041-04iMX72198608-198708

BLUE,DARK BLUE

main64780-23041-05iMX72198601-198608

BEIGE,BEIGE

main64780-23041-12iMX72198608-198708

MAROON,MAROON

main64780-23041-15iMX72198608-198708

BEIGE,DARK BEIGE

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-08114-32×6iMX72198411-198708

MAROON,MAROON

main90467-08114-40×6iMX72198411-198608

GRAY,GRAY

main90467-08114-50×6iMX72198411-198608

BEIGE,BEIGE

main90467-08114-58×6iMX72198608-198708

BLUE,DARK BLUE

main90467-08114-59×6iMX72198608-198708

BEIGE,DARK BEIGE

67005PANEL SUB-ASSY, BACK DOOR

main67005-23020iMX72198411-198508

main67005-23021iMX72198508-198708

67281BSTOPPER, BACK DOOR, LOWER

main67281-13030iMX72198411-198708

67281CPLATE, BACK DOOR LOWER STOPPER

main67281-23010×2iMX72198411-198708

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-23010iMX72198411-198708

RH

main67294-23010iMX72198411-198708

LH

67391REINFORCEMENT, BACK DOOR LOCK

main67391-23010iMX72198411-198708

67881AWEATHERSTRIP, BACK DOOR

main67881-23010iMX72198411-198501

main67881-91702iMX72198501-198708

68131GLASS, BACK DOOR

main68105-23020iMX72198411-198708

*EHTT,T=3.5

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-23010iMX72198411-198708

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9010908093

main90109-08093

9015950116

main90159-50116

9095001006

main90950-01006

9095001038

main90950-01038

9095001199

main90950-01199

16 parts on this diagram · 1 diagram in section
