EPC Data

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

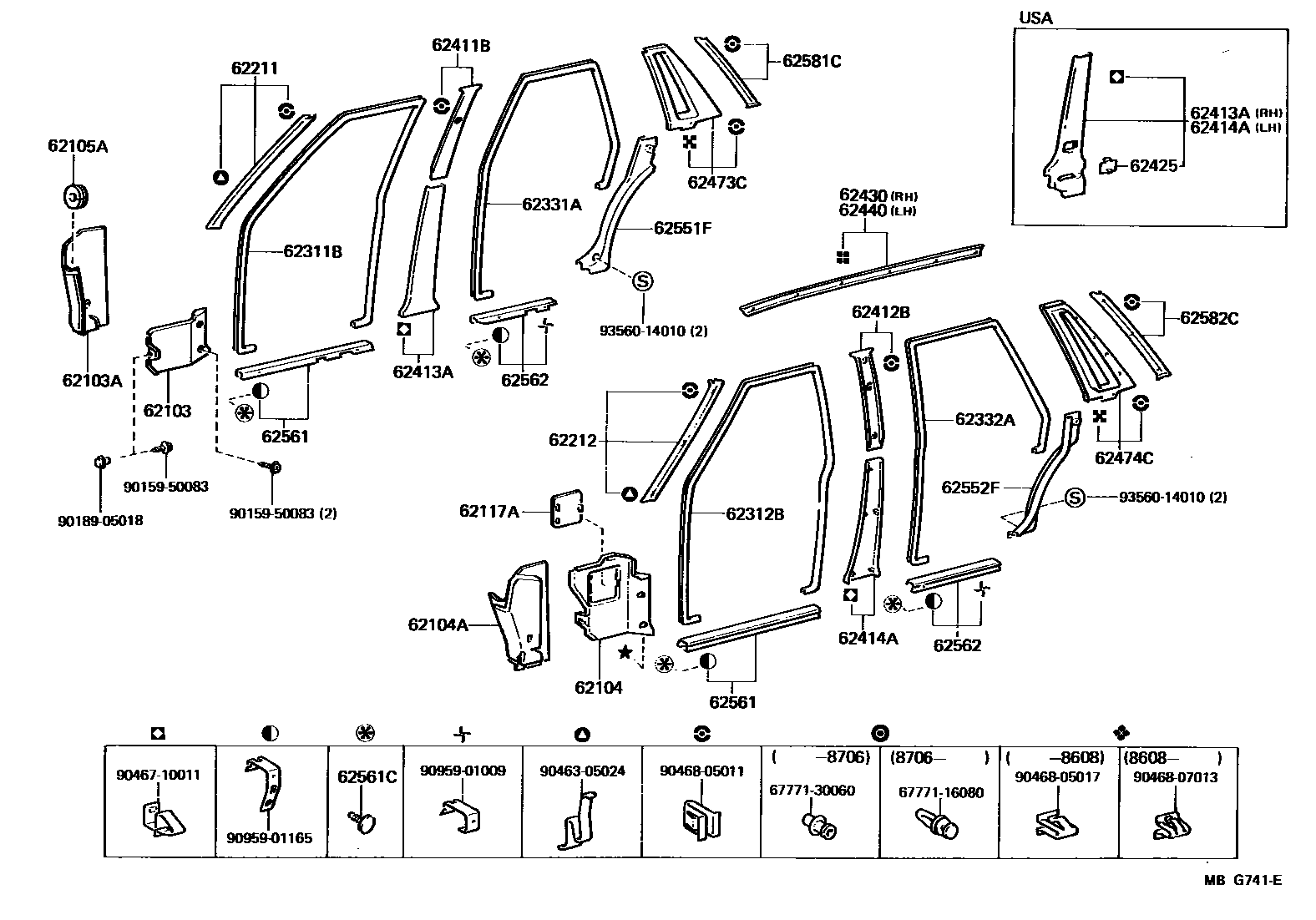

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-22170-02i198408-198601
MAROON,MAROON
sub62101-22171
main62101-22170-03i198408-198601
GRAY,COOL GRAY
sub62101-22171
main62101-22170-05i198408-198601
BEIGE,BEIGE
sub62101-22171
main62101-22170-07i198408-198601
GREEN,GREEN
sub62101-22171
main62101-22180-02i198601-198608
MAROON,MAROON
main62101-22180-03i198601-198608
GRAY,COOL GRAY
main62101-22180-05i198601-198608
BEIGE,BEIGE
main62101-22180-07i198601-198608
GREEN,GREEN
main62101-22181-02i198608-198808
MAROON,MAROON
main62101-22181-03i198608-198808
GRAY,MEDIUM GRAY
main62101-22181-04i198608-198808
BLUE,DARK BLUE
main62101-22181-05i198608-198808
BEIGE,DARK BEIGE
62103AINSULATOR SUB-ASSY, COWL SIDE, RH
main62105-22020i198408-198808
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-22200-02i198408-198601
MAROON,MAROON
main62102-22200-03i198408-198601
GRAY,COOL GRAY
main62102-22200-05i198408-198601
BEIGE,BEIGE
main62102-22200-07i198408-198601
GREEN,GREEN
main62102-22220-02i198601-198608
MAROON,MAROON
main62102-22220-03i198601-198608
GRAY,COOL GRAY
main62102-22220-04i198608-198808
BLUE,DARK BLUE
main62102-22220-05i198601-198608
BEIGE,BEIGE
main62102-22220-07i198601-198608
GREEN,GREEN
main62102-22220-12i198608-198808
MAROON,MAROON
main62102-22220-13i198608-198808
GRAY,MEDIUM GRAY
main62102-22220-15i198608-198808
BEIGE,DARK BEIGE
62104AINSULATOR SUB-ASSY, COWL SIDE, LH
main62106-22020i198408-198808
62105AINSULATOR SUB-ASSY, COWL SIDE, UPPER RH
main62107-22010i198408-198808
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-22040-02i198408-198508
MAROON,MAROON
main62117-22040-03i198408-198508
GRAY,COOL GRAY
main62117-22040-05i198408-198508
BEIGE,BEIGE
main62117-22040-07i198408-198508
GREEN,GREEN
main62117-22041-02i198508-198608
MAROON,MAROON
main62117-22041-03i198508-198608
GRAY,COOL GRAY
main62117-22041-05i198508-198608
BEIGE,BEIGE
main62117-22041-07i198508-198608
GREEN,GREEN
main62117-22060-02i198608-198808
MAROON,MAROON
main62117-22060-03i198608-198808
GRAY,MEDIUM GRAY
main62117-22060-04i198608-198808
BLUE,DARK BLUE
main62117-22060-05i198608-198808
BEIGE,DARK BEIGE
62211GARNISH, FRONT PILLAR, RH
main62210-22010-02i198608-198808
MAROON,MAROON
main62210-22010-04i198608-198808
BLUE,DARK BLUE
main62210-22010-05i198608-198808
BEIGE,DARK BEIGE
main62210-22020-02i198608-198808
MAROON,MAROON
main62210-22020-03i198608-198808
GRAY,MEDIUM GRAY
main62210-22020-04i198608-198808
BLUE,DARK BLUE
main62210-22020-05i198608-198808
BEIGE,DARK BEIGE
main62211-22130-02i198408-198608
MAROON,MAROON
main62211-22130-03i198408-198608
GRAY,COOL GRAY
main62211-22130-05i198408-198608
BEIGE,BEIGE
main62211-22160-02i198408-198608
MAROON,MAROON
main62211-22160-03i198408-198608
GRAY,COOL GRAY
main62211-22160-05i198408-198608
BEIGE,BEIGE
main62211-22160-07i198408-198608
GREEN,GREEN
62212GARNISH, FRONT PILLAR, LH
main62212-22140-02i198408-198608
MAROON,MAROON
main62212-22140-03i198408-198608
GRAY,COOL GRAY
main62212-22140-05i198408-198608
BEIGE,BEIGE
main62212-22170-02i198408-198608
MAROON,MAROON
main62212-22170-03i198408-198608
GRAY,COOL GRAY
main62212-22170-05i198408-198608
BEIGE,BEIGE
main62212-22170-07i198408-198608
GREEN,GREEN
main62220-22010-02i198608-198808
MAROON,MAROON
main62220-22010-04i198608-198808
BLUE,DARK BLUE
main62220-22010-05i198608-198808
BEIGE,DARK BEIGE
main62220-22020-02i198608-198808
MAROON,MAROON
main62220-22020-03i198608-198808
GRAY,MEDIUM GRAY
main62220-22020-04i198608-198808
BLUE,DARK BLUE
main62220-22020-05i198608-198808
BEIGE,DARK BEIGE
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-22010-02i198408-198608
MAROON,MAROON
main62311-22010-03i198408-198608
GRAY,COOL GRAY
main62311-22010-05i198408-198608
BEIGE,BEIGE
main62311-22011-02i198608-198808
MAROON,MAROON
main62311-22011-04i198608-198808
BLUE,DARK BLUE
main62311-22011-05i198608-198808
BEIGE,DARK BEIGE
main62311-22020-02i198408-198608
MAROON,MAROON
main62311-22020-03i198408-198608
GRAY,COOL GRAY
main62311-22020-05i198408-198608
BEIGE,BEIGE
main62311-22020-07i198408-198608
GREEN,GREEN
main62311-22021-02i198608-198808
MAROON,MAROON
main62311-22021-03i198608-198808
GRAY,MEDIUM GRAY
main62311-22021-04i198608-198808
BLUE,DARK BLUE
main62311-22021-05i198608-198808
BEIGE,DARK BEIGE
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-22010-02i198408-198608
MAROON,MAROON
main62312-22010-03i198408-198608
GRAY,COOL GRAY
main62312-22010-05i198408-198608
BEIGE,BEIGE
main62312-22011-02i198608-198808
MAROON,MAROON
main62312-22011-04i198608-198808
BLUE,DARK BLUE
main62312-22011-05i198608-198808
BEIGE,DARK BEIGE
main62312-22020-02i198408-198608
MAROON,MAROON
main62312-22020-03i198408-198608
GRAY,COOL GRAY
main62312-22020-05i198408-198608
BEIGE,BEIGE
main62312-22020-07i198408-198608
GREEN,GREEN
main62312-22021-02i198608-198808
MAROON,MAROON
main62312-22021-03i198608-198808
GRAY,MEDIUM GRAY
main62312-22021-04i198608-198808
BLUE,DARK BLUE
main62312-22021-05i198608-198808
BEIGE,DARK BEIGE
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-22010-02i198408-198808
MAROON,MAROON
main62331-22010-03i198408-198608
GRAY,COOL GRAY
main62331-22010-04i198608-198808
BLUE,DARK BLUE
main62331-22010-05i198408-198608
BEIGE,BEIGE
main62331-22010-07i198408-198608
GREEN,GREEN
main62331-22010-13i198608-198808
GRAY,MEDIUM GRAY
main62331-22010-15i198608-198808
BEIGE,DARK BEIGE
main62331-23010-02i198411-198808
MAROON,MAROON
main62331-23010-03i198411-198608
GRAY,COOL GRAY
main62331-23010-04i198608-198708
BLUE,DARK BLUE
main62331-23010-05i198411-198708
BEIGE,BEIGE
main62331-23010-15i198608-198708
BEIGE,DARK BEIGE
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-22010-02i198408-198808
MAROON,MAROON
main62332-22010-03i198408-198608
GRAY,COOL GRAY
main62332-22010-04i198608-198808
BLUE,DARK BLUE
main62332-22010-05i198408-198608
BEIGE,BEIGE
main62332-22010-07i198408-198608
GREEN,GREEN
main62332-22010-13i198608-198808
GRAY,MEDIUM GRAY
main62332-22010-15i198608-198808
BEIGE,DARK BEIGE
main62332-23010-02i198411-198708
MAROON,MAROON
main62332-23010-03i198411-198608
GRAY,COOL GRAY
main62332-23010-04i198608-198708
BLUE,DARK BLUE
main62332-23010-05i198411-198608
BEIGE,BEIGE
main62332-23010-15i198608-198708
BEIGE,DARK BEIGE
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-22020-02i198608-198808
MAROON,MAROON
main62410-22020-03i198608-198808
GRAY,MEDIUM GRAY
main62410-22020-04i198608-198808
BLUE,DARK BLUE
main62410-22020-05i198608-198808
BEIGE,DARK BEIGE
main62411-22150-02i198408-198808
MAROON,MAROON
main62411-22150-03i198408-198608
GRAY,COOL GRAY
main62411-22150-04i198608-198808
BLUE,DARK BLUE
main62411-22150-05i198408-198608
BEIGE,BEIGE
main62411-22150-15i198608-198808
BEIGE,DARK BEIGE
main62411-22180-02i198408-198608
MAROON,MAROON
main62411-22180-03i198408-198608
GRAY,COOL GRAY
main62411-22180-05i198408-198608
BEIGE,BEIGE
main62411-22180-07i198408-198608
GREEN,GREEN
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-22170-02i198408-198808
MAROON,MAROON
main62412-22170-03i198408-198608
GRAY,COOL GRAY
main62412-22170-04i198608-198808
BLUE,DARK BLUE
main62412-22170-05i198408-198608
BEIGE,BEIGE
main62412-22170-15i198608-198808
BEIGE,DARK BEIGE
main62412-22200-02i198408-198608
MAROON,MAROON
main62412-22200-03i198408-198608
GRAY,COOL GRAY
main62412-22200-05i198408-198608
BEIGE,BEIGE
main62412-22200-07i198408-198608
GREEN,GREEN
main62420-22020-02i198608-198808
MAROON,MAROON
main62420-22020-03i198608-198808
GRAY,MEDIUM GRAY
main62420-22020-04i198608-198808
BLUE,DARK BLUE
main62420-22020-05i198608-198808
BEIGE,DARK BEIGE
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-22040-02i198408-198808
MAROON,MAROON
main62413-22040-03i198408-198608
GRAY,COOL GRAY
main62413-22040-04i198608-198808
BLUE,DARK BLUE
main62413-22040-05i198408-198608
BEIGE,BEIGE
main62413-22040-15i198608-198808
BEIGE,DARK BEIGE
main62413-22050-02i198408-198808
MAROON,MAROON
main62413-22050-03i198408-198608
GRAY,COOL GRAY
main62413-22050-04i198608-198808
BLUE,DARK BLUE
main62413-22050-05i198408-198608
BEIGE,BEIGE
main62413-22050-07i198408-198608
GREEN,GREEN
main62413-22050-13i198608-198808
GRAY,MEDIUM GRAY
main62413-22050-15i198608-198808
BEIGE,DARK BEIGE
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-22040-02i198408-198808
MAROON,MAROON
main62414-22040-03i198408-198608
GRAY,COOL GRAY
main62414-22040-04i198608-198808
BLUE,DARK BLUE
main62414-22040-05i198408-198608
BEIGE,BEIGE
main62414-22040-15i198608-198808
BEIGE,DARK BEIGE
main62414-22050-02i198408-198808
MAROON,MAROON
main62414-22050-03i198408-198608
GRAY,COOL GRAY
main62414-22050-04i198608-198808
BLUE,DARK BLUE
main62414-22050-05i198408-198608
BEIGE,BEIGE
main62414-22050-07i198408-198608
GREEN,GREEN
main62414-22050-13i198608-198808
GRAY,MEDIUM GRAY
main62414-22050-15i198608-198808
BEIGE,DARK BEIGE
62425COVER, CENTER PILLAR GARNISH
main62421-22020-02×2i198408-198808
MAROON,MAROON
main62421-22020-03×2i198408-198608
GRAY,COOL GRAY
main62421-22020-04×2i198608-198808
BLUE,DARK BLUE
main62421-22020-05×2i198408-198608
BEIGE,BEIGE
main62421-22020-07×2i198408-198608
GREEN,GREEN
main62421-22020-13×2i198608-198808
GRAY,MEDIUM GRAY
main62421-22020-15×2i198608-198808
BEIGE,DARK BEIGE
62430GARNISH ASSY, ROOF SIDE RAIL, RH
main62430-22010-02i198608-198808
MAROON,MAROON
main62430-22010-04i198608-198808
BLUE,DARK BLUE
main62430-22010-05i198608-198808
BEIGE,DARK BEIGE
main62430-22020-02i198608-198808
MAROON,MAROON
main62430-22020-03i198608-198808
GRAY,MEDIUM GRAY
main62430-22020-04i198608-198808
BLUE,DARK BLUE
main62430-22020-05i198608-198808
BEIGE,DARK BEIGE
main62430-22030-02i198608-198708
MAROON,MAROON
main62430-22030-04i198608-198708
BLUE,DARK BLUE
main62430-22030-05i198608-198708
BEIGE,DARK BEIGE
main62431-22070-02i198408-198608
MAROON,MAROON
main62431-22070-03i198408-198608
GRAY,COOL GRAY
main62431-22070-05i198408-198608
BEIGE,BEIGE
main62431-22100-02i198408-198608
MAROON,MAROON
main62431-22100-03i198408-198608
GRAY,COOL GRAY
main62431-22100-05i198408-198608
BEIGE,BEIGE
main62431-22100-07i198408-198608
GREEN,GREEN
main62431-23020-02i198411-198608
MAROON,MAROON
main62431-23020-03i198411-198608
GRAY,COOL GRAY
main62431-23020-05i198411-198608
BEIGE,BEIGE
main62431-23030-02i198411-198608
MAROON,MAROON
main62431-23030-03i198411-198608
GRAY,COOL GRAY
main62431-23030-05i198411-198608
BEIGE,BEIGE
62440GARNISH ASSY, ROOF SIDE RAIL, LH
main62432-22070-02i198408-198608
MAROON,MAROON
main62432-22070-03i198408-198608
GRAY,COOL GRAY
main62432-22070-05i198408-198608
BEIGE,BEIGE
main62432-22100-02i198408-198608
MAROON,MAROON
main62432-22100-03i198408-198608
GRAY,COOL GRAY
main62432-22100-05i198408-198608
BEIGE,BEIGE
main62432-22100-07i198408-198608
GREEN,GREEN
main62432-23020-02i198411-198608
MAROON,MAROON
main62432-23020-03i198411-198608
GRAY,COOL GRAY
main62432-23020-05i198411-198608
BEIGE,BEIGE
main62432-23030-02i198411-198608
MAROON,MAROON
main62432-23030-03i198411-198608
GRAY,COOL GRAY
main62432-23030-05i198411-198608
BEIGE,BEIGE
main62440-22010-02i198608-198808
MAROON,MAROON
main62440-22010-04i198608-198808
BLUE,DARK BLUE
main62440-22010-05i198608-198808
BEIGE,DARK BEIGE
main62440-22020-02i198608-198808
MAROON,MAROON
main62440-22020-03i198608-198808
GRAY,MEDIUM GRAY
main62440-22020-04i198608-198808
BLUE,DARK BLUE
main62440-22020-05i198608-198808
BEIGE,DARK BEIGE
main62440-22030-02i198608-198708
MAROON,MAROON
main62440-22030-04i198608-198708
BLUE,DARK BLUE
main62440-22030-05i198608-198708
BEIGE,DARK BEIGE
62473CBOARD, ROOF SIDE INNER GARNISH, RH
main62470-22060-02i198608-198708
MAROON,MAROON
main62470-22060-03i198608-198708
GRAY,MEDIUM GRAY
main62470-22060-04i198608-198708
BLUE,DARK BLUE
main62470-22060-05i198608-198708
BEIGE,DARK BEIGE
main62470-22061-02i198708-198808
MAROON,MAROON
main62470-22061-03i198708-198808
GRAY,MEDIUM GRAY
main62470-22061-04i198708-198808
BLUE,DARK BLUE
main62470-22061-05i198708-198808
BEIGE,DARK BEIGE
main62473-22150-02i198408-198608
MAROON,MAROON
main62473-22150-03i198408-198608
GRAY,COOL GRAY
main62473-22150-05i198408-198608
BEIGE,BEIGE
main62473-22150-07i198408-198608
GREEN,GREEN
62474CBOARD, ROOF SIDE INNER GARNISH, LH
main62474-22150-02i198408-198608
MAROON,MAROON
main62474-22150-03i198408-198608
GRAY,COOL GRAY
main62474-22150-05i198408-198608
BEIGE,BEIGE
main62474-22150-07i198408-198608
GREEN,GREEN
main62480-22060-02i198608-198708
MAROON,MAROON
main62480-22060-03i198608-198708
GRAY,MEDIUM GRAY
main62480-22060-04i198608-198708
BLUE,DARK BLUE
main62480-22060-05i198608-198708
BEIGE,DARK BEIGE
main62480-22061-02i198708-198808
MAROON,MAROON
main62480-22061-03i198708-198808
GRAY,MEDIUM GRAY
main62480-22061-04i198708-198808
BLUE,DARK BLUE
main62480-22061-05i198708-198808
BEIGE,DARK BEIGE
62551FGARNISH, REAR SEAT SIDE, RH
main62551-22020-02i198408-198808
MAROON,MAROON
main62551-22020-03i198408-198608
GRAY,COOL GRAY
main62551-22020-04i198608-198808
BLUE,DARK BLUE
main62551-22020-05i198408-198608
BEIGE,BEIGE
main62551-22020-07i198408-198608
GREEN,GREEN
main62551-22020-13i198608-198808
GRAY,MEDIUM GRAY
main62551-22020-15i198608-198808
BEIGE,DARK BEIGE
62552FGARNISH, REAR SEAT SIDE, LH
main62552-22020-02i198408-198808
MAROON,MAROON
main62552-22020-03i198408-198608
GRAY,COOL GRAY
main62552-22020-04i198608-198808
BLUE,DARK BLUE
main62552-22020-05i198408-198608
BEIGE,BEIGE
main62552-22020-07i198408-198608
GREEN,GREEN
main62552-22020-13i198608-198808
GRAY,MEDIUM GRAY
main62552-22020-15i198608-198808
BEIGE,DARK BEIGE
62561PROTECTOR, ROCKER PANEL, INNER FRONT
main62561-22030i198408-198808
RH
main62561-22040i198408-198808
RH
main62562-22030i198408-198808
LH
main62562-22040i198408-198808
LH
62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)
main90467-08056-03×6i198408-198808
GRAY,LIGHT GRAY
62562PROTECTOR, ROCKER PANEL, INNER REAR
main62563-22020i198408-198808
RH
main62564-22010i198408-198808
LH
62581CGARNISH, REAR WINDOW SIDE, RH
main62550-22010-02i198608-198808
MAROON,MAROON
sub62581-22050
main62550-22010-03i198608-198808
GRAY,MEDIUM GRAY
sub62581-22050
main62550-22010-04i198608-198808
BLUE,DARK BLUE
sub62581-22050
main62550-22010-05i198608-198808
BEIGE,DARK BEIGE
sub62581-22050
main62581-22060-02i198408-198608
MAROON,MAROON
sub62581-22050
main62581-22060-03i198408-198608
GRAY,COOL GRAY
sub62581-22050
main62581-22060-05i198408-198608
BEIGE,BEIGE
sub62581-22050
main62581-22060-07i198408-198608
GREEN,GREEN
sub62581-22050
62582CGARNISH, REAR WINDOW SIDE, LH
main62560-22010-02i198608-198808
MAROON,MAROON
sub62582-22030
main62560-22010-03i198608-198808
GRAY,MEDIUM GRAY
sub62582-22030
main62560-22010-04i198608-198808
BLUE,DARK BLUE
sub62582-22030
main62560-22010-05i198608-198808
BEIGE,DARK BEIGE
sub62582-22030
main62582-22040-02i198408-198608
MAROON,MAROON
sub62582-22030
main62582-22040-03i198408-198608
GRAY,COOL GRAY
sub62582-22030
main62582-22040-05i198408-198608
BEIGE,BEIGE
sub62582-22030
main62582-22040-07i198408-198608
GREEN,GREEN
sub62582-22030
6777116080WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16080
6777130060WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30060
9015950083
main90159-50083
9018905018
main90189-05018
9046305024
main90463-05024
9046710011
main90467-10011
9046805011
main90468-05011
9046805017
main90468-05017
9046807013
main90468-07013
9095901009
main90959-01009
9095901165
main90959-01165
9356014010
main93560-14010

40 parts on this diagram · 2 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
