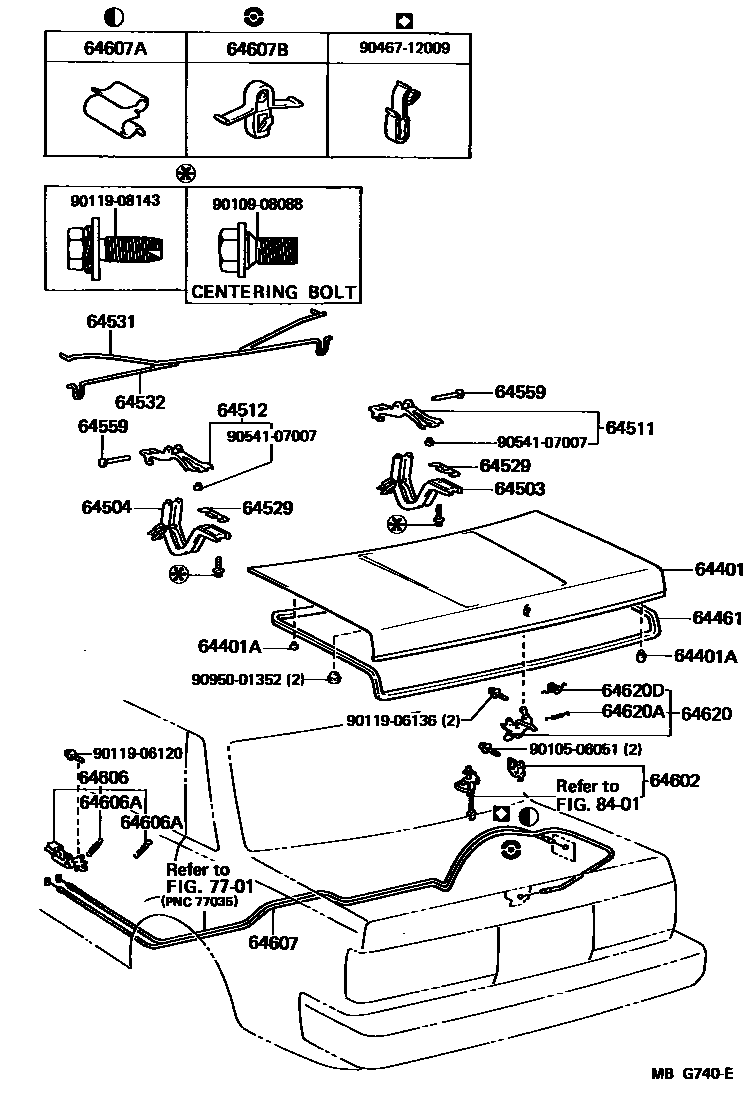

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22270iMX73198408-198808

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iMX73198408-198808

FR

main90541-09042×2iMX73198408-198808

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22120iMX73198408-198808

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-22010iMX73198408-198808

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-22010iMX73198408-198808

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-22070iMX73198408-198808

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-22070iMX73198408-198808

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010×2iMX73198506-198808

main64529-20010×2iMX73198408-198506

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-22120iMX73198408-198508

main64531-22200iMX73198508-198808

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-22120iMX73198408-198508

main64532-22200iMX73198508-198808

64559PIN, LUGGAGE DOOR HINGE

main64559-22010×2iMX73198408-198808

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12070iMX73198408-198503

main64620-22040iMX73198503-198808

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-22080iMX73198408-198608

main64606-22100iMX73198608-198808

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iMX73198408-198808

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22140iMX73198408-198508

main64607-22141iMX73198508-198608

main64607-22280iMX73198608-198808

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01158iMX73198408-198808

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01209×2iMX73198408-198808

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-22040iMX73198408-198508

main64610-22100iMX73198508-198808

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iMX73198408-198808

CW=13,WD=0.8

64620DSPRING, TORSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90508-09001iMX73198508-198808

CW=3,WD=0.8

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506051

main90105-06051

9010908088

main90109-08088

9011906120

main90119-06120

9011906136

main90119-06136

9011908143

main90119-08143

9046712009

main90467-12009

9054107007

main90541-07007

9095001352

main90950-01352

30 parts on this diagram · 1 diagram in section
