FLOOR INSULATOR

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-22030iMX7#198408-198808

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-22030×2iMX7#198408-198808

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-22050iMX7#198408-198808

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-22050iMX73198408-198808

main58327-23010iMX72198411-198708

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-91601iMX72198411-198708

9054107001

main90541-07001

9166140612

main91661-40612

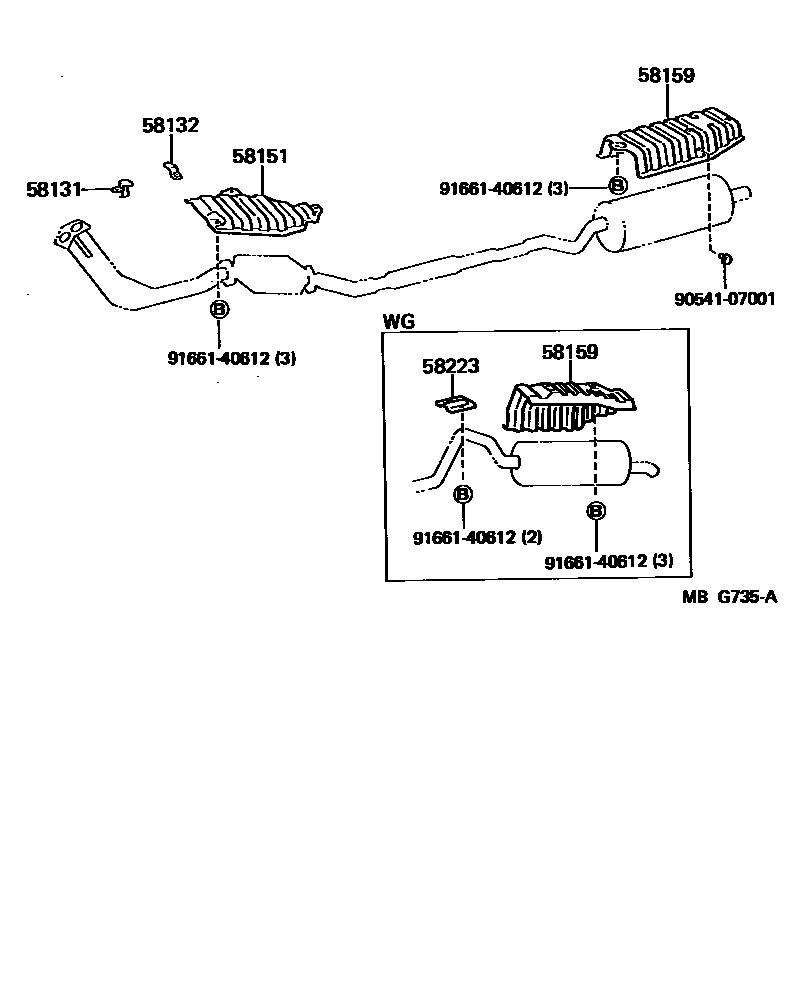

7 parts on this diagram · 1 diagram in section
