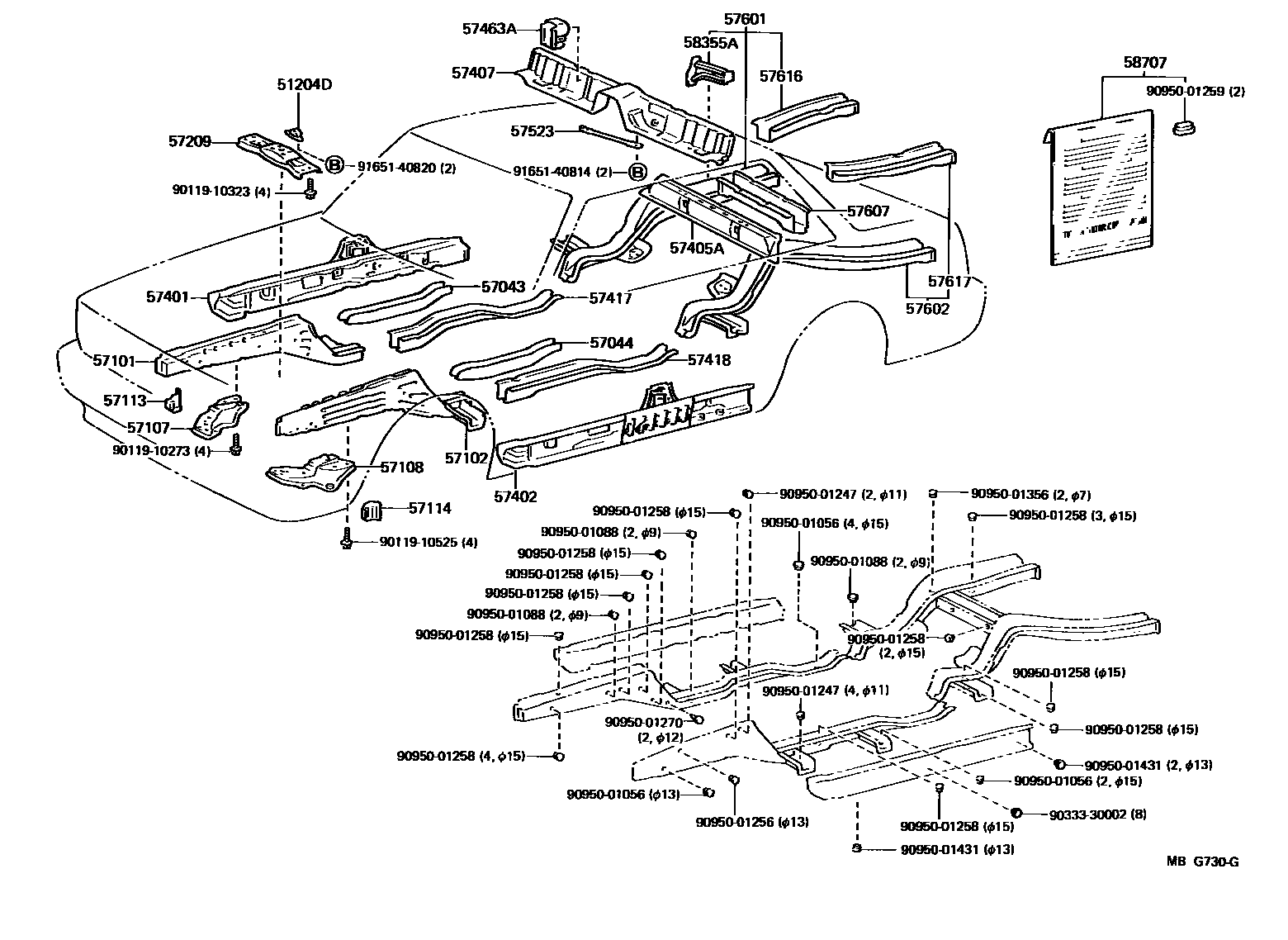

FLOOR SIDE MEMBER

0001 1 0002 1

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-22050iMX73..ATM198408-198808

main51204-22070iMX72198411-198708

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-22030iMX7#198408-198808

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-22010iMX7#198408-198808

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-22260iMX7#198408-198808

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-22300iMX7#198408-198808

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-22070iMX7#198408-198808

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-22140iMX7#198408-198808

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22070iMX7#198408-198808

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22070iMX7#198408-198808

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-22150iMX73..MTM198408-198708

main57255-22200iMX7#..ATM198408-198808

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22100iMX7#..USA198408-198808

main57401-22110iMX7#..CND198408-198808

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22100iMX7#..USA198408-198808

main57402-22110iMX7#..CND198408-198808

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-22010iMX73198408-198808

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-22050iMX73198408-198608

main57407-22070iMX73198608-198808

main57407-23010iMX72198411-198708

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-22050iMX7#198408-198808

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-22050iMX7#198408-198808

57463AREINFORCEMENT, CENTER FLOOR CROSSMEMBER

main57463-22020×2iMX73198408-198808

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-22010iMX73198408-198808

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-22250iMX73198408-198808

main57601-23040iMX72198411-198708

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-22250iMX73198408-198808

main57602-23030iMX72198411-198708

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-22060iMX73198408-198808

main57652-91604iMX72198411-198708

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-22902iMX73198408-198808

main57615-23020iMX72198411-198708

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-22902iMX73198408-198808

main57616-23020iMX72198411-198708

58355AREINFORCEMENT, FLOOR SIDE PLATE, RH

main58355-22030iMX73198408-198808

58707PLUG SET, HOLE

main58707-22020iMX73198408-198808

9011910273

main90119-10273

9011910323

main90119-10323

9011910525

main90119-10525

9033330002

main90333-30002

9095001056

main90950-01056

9095001088

main90950-01088

9095001247

main90950-01247

9095001256

main90950-01256

9095001258

main90950-01258

9095001259

main90950-01259

9095001270

main90950-01270

9095001356

main90950-01356

9095001431

main90950-01431

9165140814

main91651-40814

9165140820

main91651-40820

40 parts on this diagram · 2 diagrams in section
