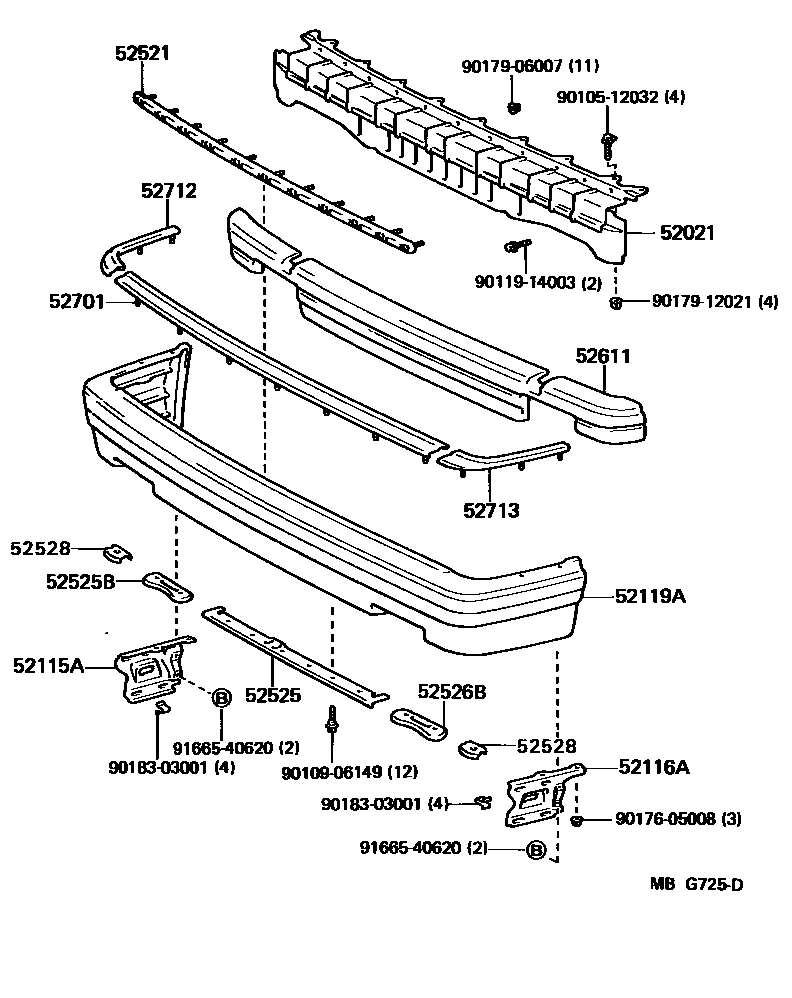

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-22140iMX7#198408-198808

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-22100iMX7#198408-198808

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-22070iMX7#198408-198808

52119ACOVER, FRONT BUMPER

main52119-22906iMX7#198408-198808

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-22090iMX7#198408-198808

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-22020iMX7#198408-198808

52525BRETAINER, FRONT BUMPER, LOWER SIDE RH

main52526-22011iMX7#198408-198808

52526BRETAINER, FRONT BUMPER, LOWER SIDE LH

main52526-22011iMX7#198408-198808

52528RETAINER, FRONT BUMPER, LOWER CORNER

main52528-22020×2iMX7#198408-198808

52611ABSORBER, FRONT BUMPER ENERGY

main52611-22060iMX7#198408-198808

52701MOULDING SUB-ASSY, FRONT BUMPER

main52711-22070iMX7#198408-198808

52712MOULDING, FRONT BUMPER SIDE, RH

main52702-22020iMX7#198408-198808

52713PLUG, FRONT BUMPER MOULDING

main52703-22020iMX7#198408-198808

9010512032

main90105-12032

9010906149

main90109-06149

9011914003

main90119-14003

9017605008

main90176-05008

9017906007

main90179-06007

9017912021

main90179-12021

9018303001

main90183-03001

9166540620

main91665-40620

21 parts on this diagram · 1 diagram in section
