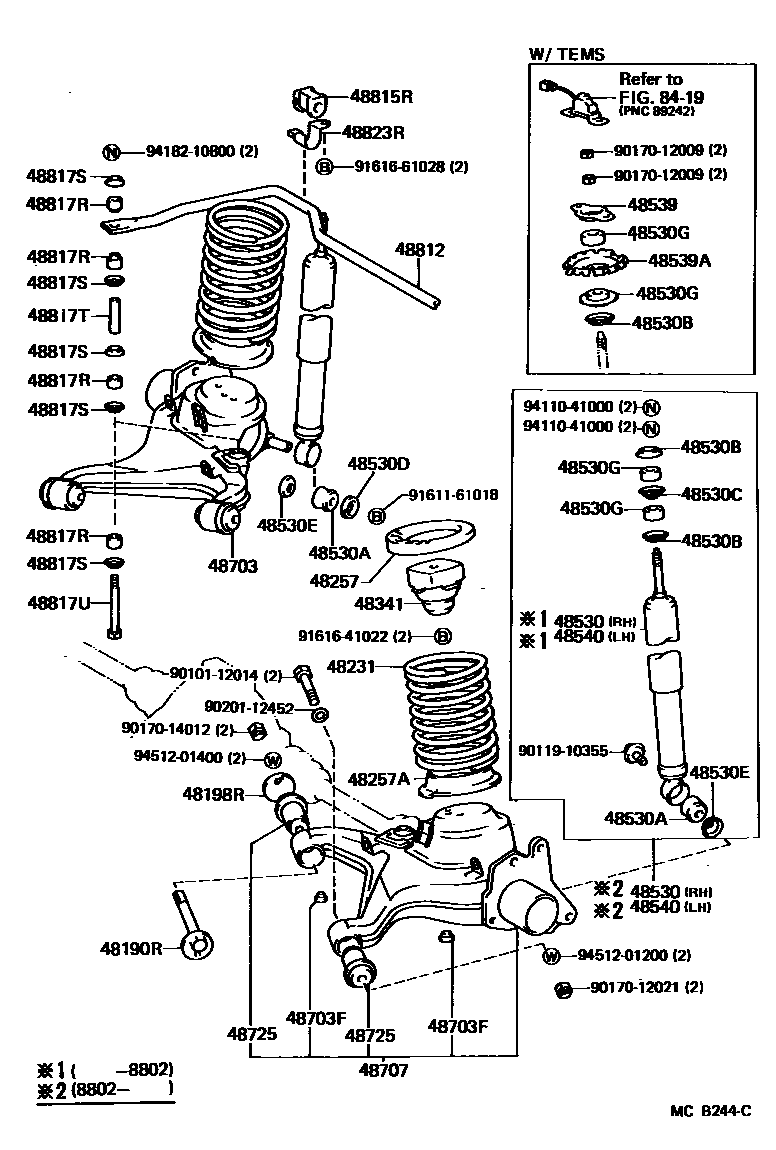

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48190RCAM ASSY, CAMBER ADJUST

main48190-22010×2iMX73198408-198808

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-22010×2iMX73198408-198808

48231SPRING, COIL, REAR

main48231-22770×2iMX73198608-198808

main48231-22780×2iMX73198408-198608

main48231-23130×2iMX72198411-198608

main48231-23190×2iMX72198608-198708

48257INSULATOR, REAR COIL SPRING

main48257-22030×2iMX73198408-198808

main48257-23010×2iMX72198411-198708

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-22041iMX73198408-198808

RH

main48258-22050iMX73198408-198808

LH

main48258-30010iMX72198411-198708

48341BUMPER, REAR SPRING

main48341-24010×2iMX73198408-198808

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-22550iMX73..ATM198408-198802

main48531-22600iMX73..ATM..USA198508-198802

W/TEMS

main48531-23200iMX72198411-198708

main48531-80340iMX73..USA198802-198808

W/TEMS

main48531-80345iMX73198802-198808

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004×2iMX7#198408-198808

ABSORBER X HOUSING

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002×4iMX7#..ATM198408-198808

T=2.3,LWR

main90948-02045×2iMX72198411-198708

T=3.2,UPR

main90948-02070×2iMX73..MTM198408-198708

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02075×2iMX7#..ATM198408-198808

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-02085iMX7#198408-198808

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iMX7#198408-198808

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10004×2iMX73..ATM198408-198808

LWR

main90540-10005×2iMX72198411-198708

ABSORBER X BODY (UPR)

main90948-01003×2iMX73..ATM198408-198808

UPR

main90948-01025×2iMX73..MTM198408-198512

LWR

main90948-01026×2iMX73..MTM198408-198708

UPR

main90948-01032×2iMX73..ATM..USA198512-198808

LWR,W/TEMS

48539BRACKET, ACTUATOR SUPPORT, RR

main48539-22010×2iMX73..MTM198408-198708

48539ARETAINER, CUSHION(FOR RR ACTUATOR SUPPORT BRACKET)

main90948-02086×2iMX73..ATM..USA198508-198808

W/TEMS

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-22550iMX73..ATM198408-198802

main48531-22600iMX73..MTM198408-198708

main48531-23200iMX72198411-198708

main48531-80340iMX73..USA198802-198808

W/TEMS

main48531-80345iMX73198802-198808

48703ARM SUB-ASSY, REAR SUSPENSION, RH

main48703-22904iMX73198408-198710

main48703-22917iMX73198710-198808

48703FPLUG, HOLE(FOR REAR SUSPENSION ARM)

main47491-22020×4iMX73198408-198808

OD=16

main90950-01228×6iMX73198408-198808

OD=30

48707ARM SUB-ASSY, REAR SUSPENSION, LH

main48707-22904iMX73198408-198808

48725BUSH, LOWER CONTROL ARM

main48725-22070×2iMX73198408-198702

OUTER

main48725-22071×2iMX73198702-198808

OUTER

main48725-22080×2iMX73198408-198702

INNER

main48725-22081×2iMX73198702-198808

INNER

48812BAR, STABILIZER, REAR

main48812-22130iMX73198408-198808

48815RBUSH, STABILIZER(FOR REAR)

main48815-12120×2iMX72198411-198708

main48815-22080×2iMX73198408-198808

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×8iMX7#198408-198808

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024×8iMX7#198408-198808

T=1.2

main90948-02025×2iMX7#198408-198808

T=1.0

48817TCOLLAR(FOR STABILIZER REAR BAR)

main90387-09014×2iMX73198408-198808

48817UBOLT(FOR REAR STABILIZER)

main90101-08095×2iMX73198408-198808

main91112-41040×2iMX72198411-198708

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-22030×2iMX73198408-198808

8419ELECTRONIC MODULATED SUSPENSION

→ Go to FIG 84-19

9010112014

main90101-12014

9011910355

main90119-10355

9017012009

main90170-12009

9017012021

main90170-12021

9017014012

main90170-14012

9020112452

main90201-12452

9161161018

main91611-61018

9161641022

main91616-41022

9161661028

main91616-61028

9411041000

main94110-41000

9418210800

main94182-10800

9451201200

main94512-01200

9451201400

main94512-01400
