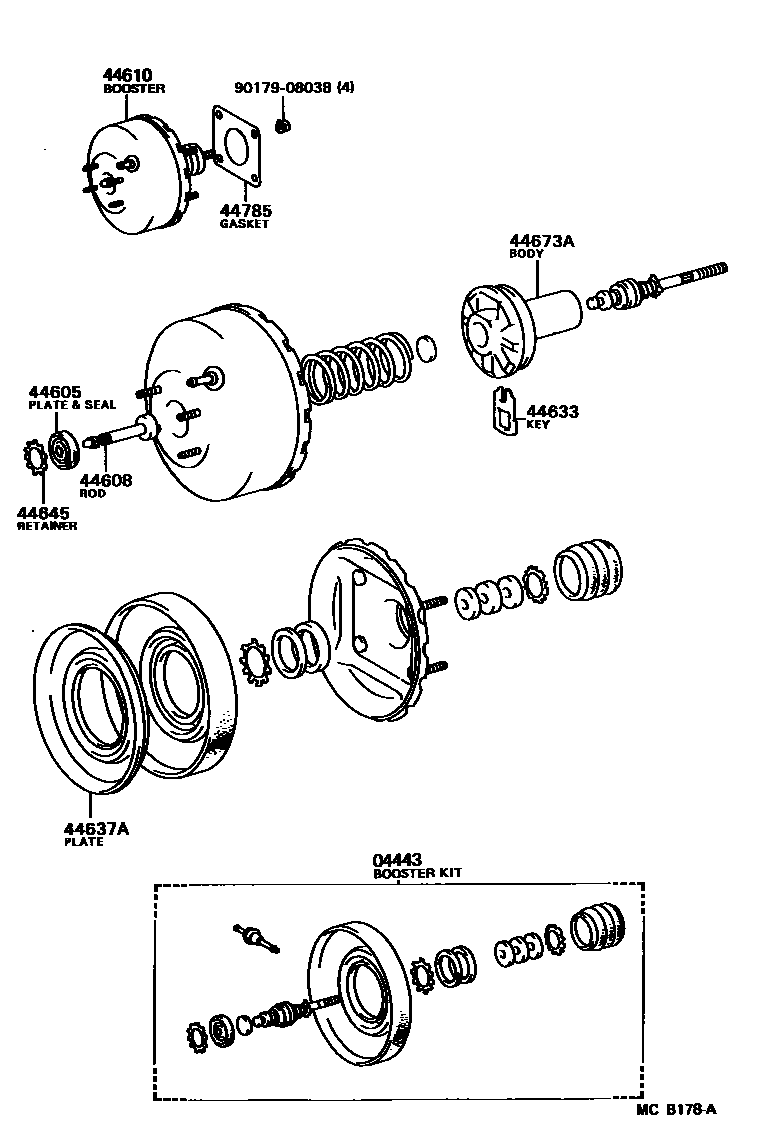

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-20360iMX7#198408-198502

JKC

main04443-22450iMX7#198502-198808

AISIN

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iMX7#198408-198502

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30460iMX7#198502-198808

main44608-32020iMX7#198408-198502

44610BOOSTER ASSY, BRAKE

main44610-22530iMX7#198408-198502

JKC,9INCH

main44610-22540iMX7#198502-198808

AISIN,7.5INCH

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iMX7#198408-198502

44637APLATE, BOOSTER DIAPHRAGM

main44637-32040iMX7#198408-198502

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iMX7#198408-198502

44673ABODY, BOOSTER VALVE

main44673-32020iMX7#198408-198502

44785GASKET, BRAKE BOOSTER

main44785-32010iMX7#198408-198808

9017908038

main90179-08038

10 parts on this diagram · 3 diagrams in section
