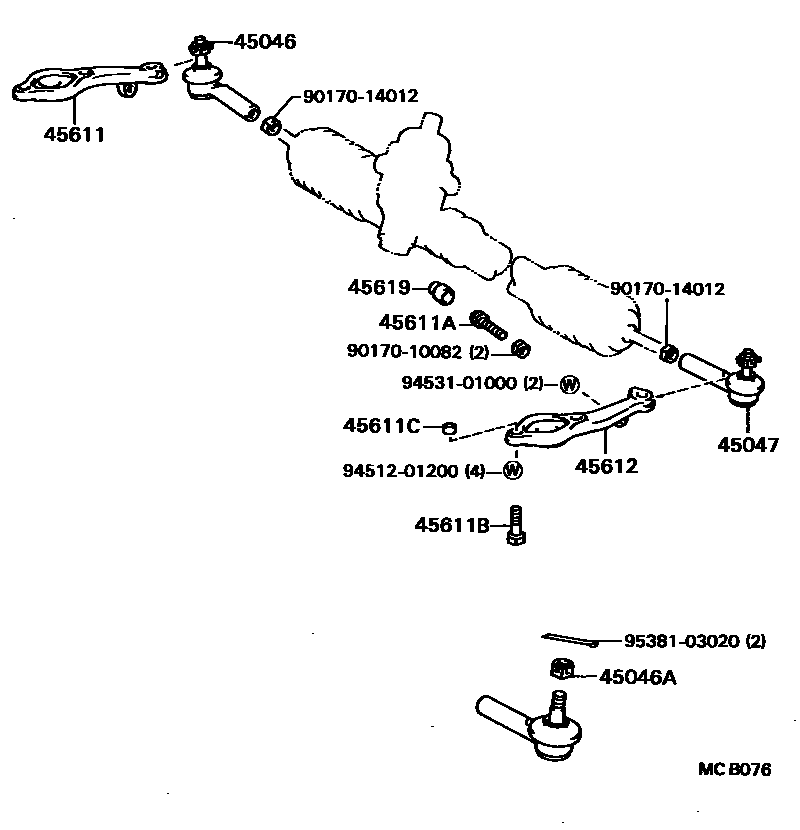

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29145iMX7#198408-198808

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iMX7#198408-198808

45047END SUB-ASSY, TIE ROD, LH

main45046-29145iMX7#198408-198808

45611ARM, STEERING KNUCKLE, RH

main45611-22090iMX7#198408-198808

45611ABOLT, KNUCKLE STOPPER

main90106-10032×2iMX7#198408-198808

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-12111×4iMX7#198408-198808

45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90253-15016×4iMX7#198408-198808

45612ARM, STEERING KNUCKLE, LH

main45612-22090iMX7#198408-198808

45619COVER, KNUCKLE STOPPER

main45619-14020×2iMX7#198408-198808

9017010082

main90170-10082

9017014012

main90170-14012

9451201200

main94512-01200

9453101000

main94531-01000

9538103020

main95381-03020

14 parts on this diagram · 3 diagrams in section
