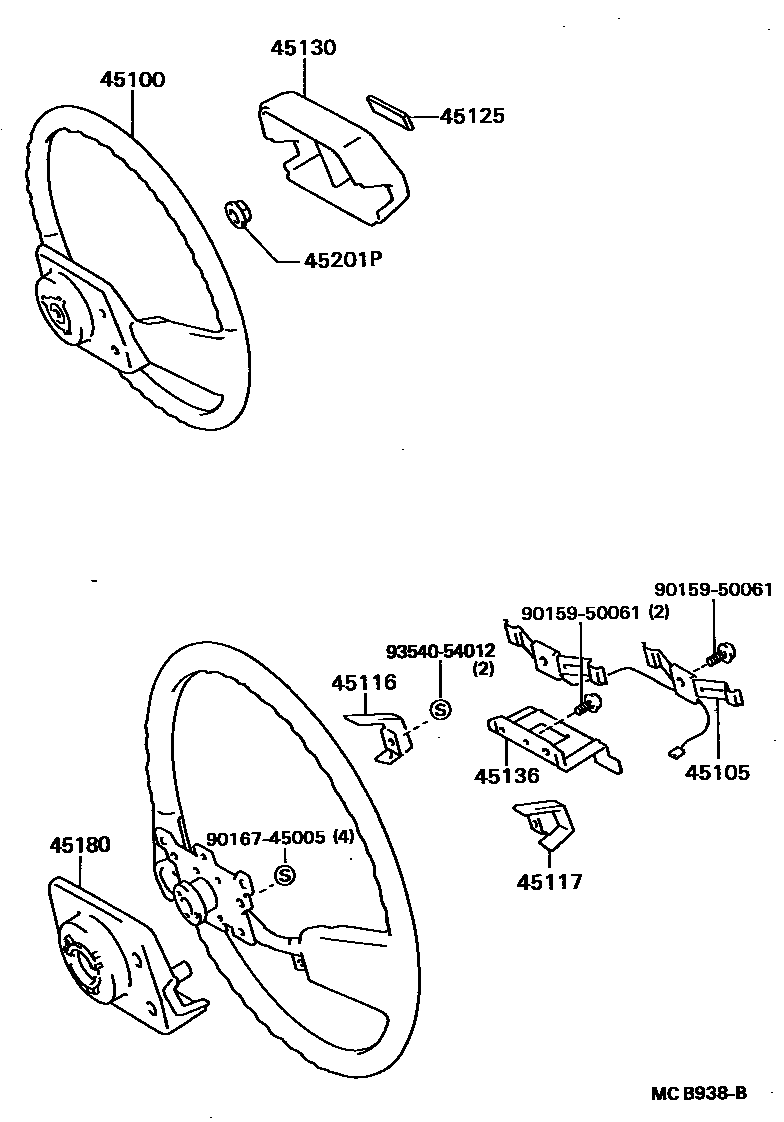

STEERING WHEEL
45100WHEEL ASSY, STEERING
MAROON,MAROON
GRAY,COOL GRAY
BEIGE,BEIGE
MAROON,MAROON
GRAY,COOL GRAY
BEIGE,BEIGE
GREEN,GREEN
LEATHER,MAROON,MAROON
LEATHER,GRAY,COOL GRAY
LEATHER,BLUE,DARK BLUE
LEATHER,BEIGE,BEIGE
LEATHER,GREEN,GREEN
LEATHER,MAROON,MAROON
LEATHER,GRAY,MEDIUM GRAY
LEATHER,BEIGE,BEIGE
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45116ORNAMENT, STEERING WHEEL, NO.1
45117ORNAMENT, STEERING WHEEL, NO.2
45125MARK, STEERING WHEEL PAD
45130BUTTON ASSY, HORN
MAROON,MAROON
GRAY,COOL GRAY
BEIGE,BEIGE
MAROON,MAROON
GRAY,COOL GRAY
BLUE,DARK BLUE
BEIGE,BEIGE
GREEN,GREEN
MAROON,MAROON
GRAY,MEDIUM GRAY
BEIGE,BEIGE
45136PLATE, HORN BUTTON CONTACT
45180COVER SUB-ASSY, STEERING WHEEL
MAROON,MAROON
GRAY,COOL GRAY
BEIGE,BEIGE
45201PNUT, STEERING WHEEL SET
9015950061
main90159-50061
9016745005
main90167-45005
9354054012
main93540-54012
12 parts on this diagram · 2 diagrams in section
