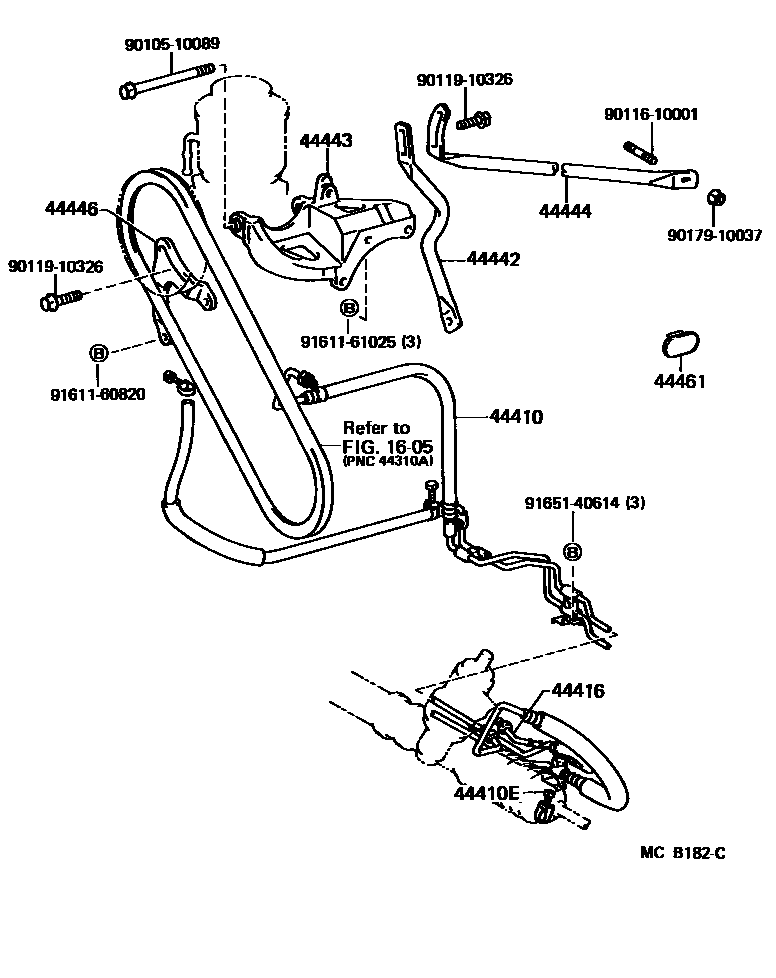

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44410TUBE ASSY, PRESSURE FEED

main44410-22300iMX7#198408-198808

44410ECLAMP(FOR PRESSURE FEED TUBE)

main90460-01001×2iMX7#198408-198808

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-22160iMX7#198408-198808

44442BRACKET, PUMP, REAR

main44442-24020iMX7#198408-198808

44443BRACKET, PUMP

main44443-24010iMX7#198408-198808

44444STAY, PUMP, REAR

main44444-24010iMX7#198408-198808

44446STRUT, ADJUSTING

main44446-24010iMX7#198408-198808

44461INSULATOR, TUBE REFRIGERANT

main44461-22020iMX7#198408-198808

9010510089

main90105-10089

9011610001

main90116-10001

9011910326

main90119-10326

9017910037

main90179-10037

9161160820

main91611-60820

9161161025

main91611-61025

9165140614

main91651-40614

16 parts on this diagram · 1 diagram in section
