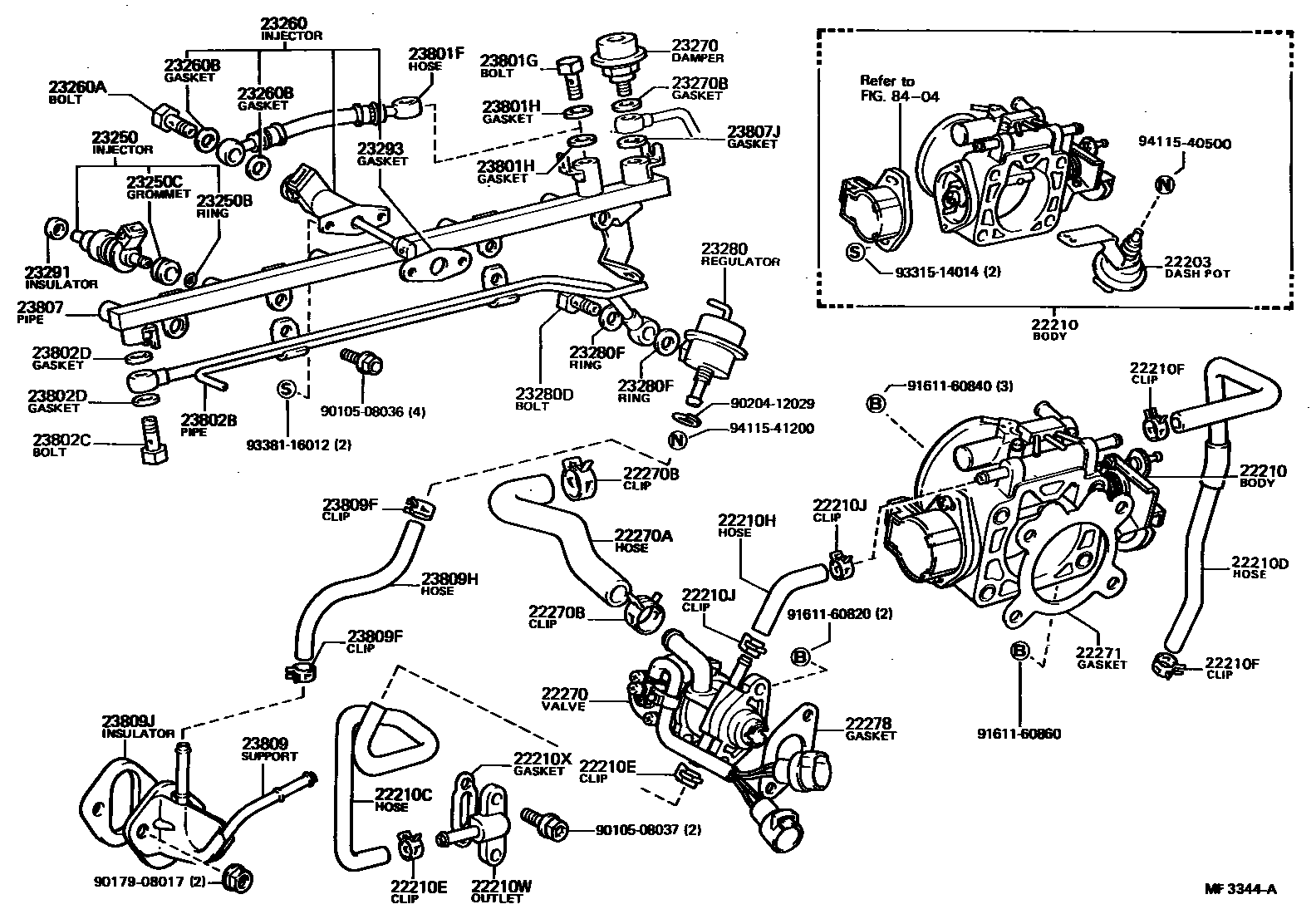

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
sub96135-51300
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
sub96135-51300
22210HHOSE, WATER BY-PASS, NO.3
22210JCLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
22210WOUTLET, WATER BY-PASS
22210XGASKET, WATER OUTLET
sub22238-43020
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270BCLIP(FOR AIR HOSE)
sub96134-42300
22271GASKET, THROTTLE BODY
sub22271-43030
23250INJECTOR ASSY, FUEL
sub23209-43010
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260ABOLT, UNION
23260BGASKET
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
sub23293-43030
23801FHOSE, FUEL, NO.1
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807JGASKET, PIPE FUEL DELIVARY INLET
23809SUPPORT SUB-ASSY, FUEL PIPE
23809FCLIP(FOR FUEL PIPE SUPPORT)
sub96135-51300
23809HHOSE, FUEL PIPE SUPPORT TO REGULATOR
23809JINSULATOR, FUEL PIPE SUPPORT
sub90923-06012
8404
9010508036
main90105-08036
9010508037
main90105-08037
9017908017
main90179-08017
9020412029
main90204-12029
9161160820
main91611-60820
9161160840
main91611-60840
9161160860
main91611-60860
9331514014
main93315-14014
9338116012
main93381-16012
9411540500
main94115-40500
9411541200
main94115-41200
52 parts on this diagram · 3 diagrams in section
