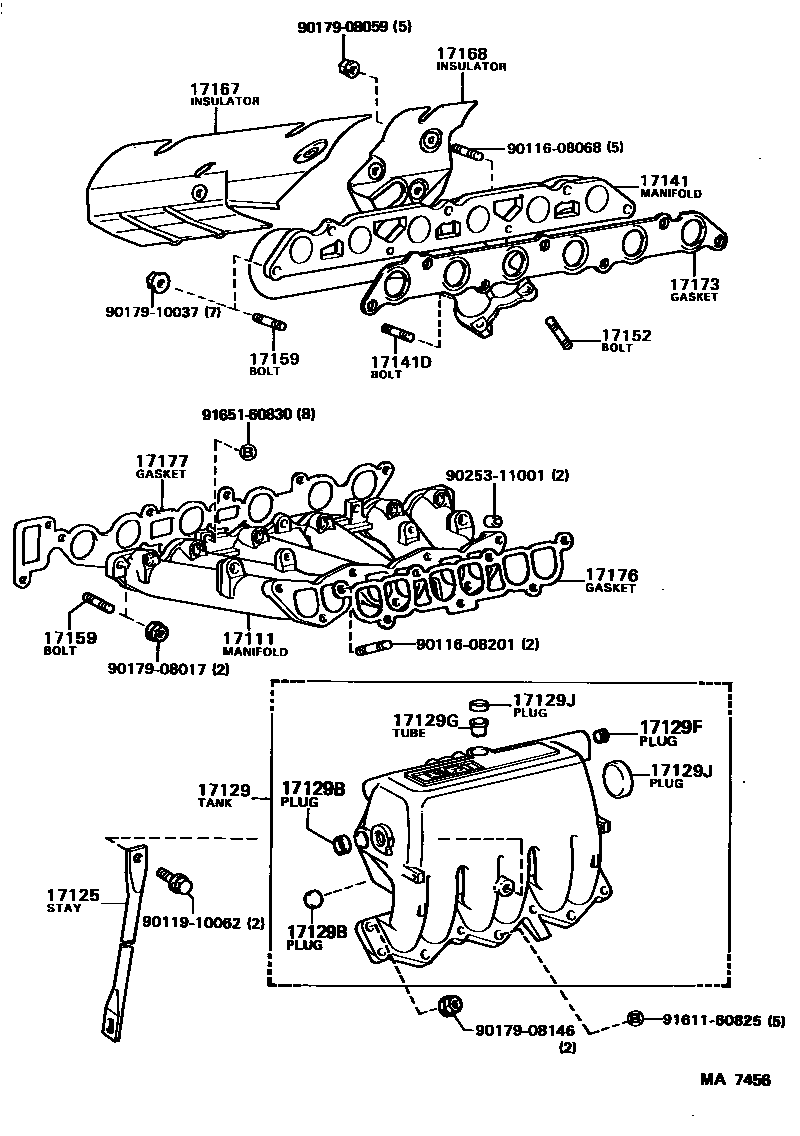

MANIFOLD

17111MANIFOLD, INTAKE

main17111-43020i5MGE..MX7#198408-198808

17125STAY, SURGE TANK, NO.1

main17125-43011i5MGE..MX7#198408-198808

17129TANK, INTAKE AIR SURGE

main17109-43050i5MGE..MX7#198408-198808

17129BPLUG

main96411-11600×2i5MGE..MX7#198408-198808

OD=16

17129FPLUG, INTAKE MANIFOLD SUCTION HOLE

main90344-53008i5MGE..MX7#198408-198808

17129GTUBE, EGR INLET

main25619-43010i5MGE..MX7#198408-198808

17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)

main96411-11800i5MGE..MX7#198408-198612

OD=18

main96411-13000i5MGE..MX7#198408-198612

OD=30

main96411-41800i5MGE..MX7#198612-198808

OD=18,OD=18

main96411-43000i5MGE..MX7#198612-198808

OD=30,OD=30

17141MANIFOLD, EXHAUST

main17141-43010i5MGE..MX7#198408-198808

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128×2i5MGE..MX7#198408-198808

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058×3i5MGE..MX7#198408-198808

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08201×2i5MGE..MX7#198408-198808

INTAKE MANIFOLD

main90116-10025×7i5MGE..MX7#198408-198808

EXHAUST MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-43010i5MGE..MX7#198408-198601

main17167-43011i5MGE..MX7#198601-198808

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-43010i5MGE..MX7#198408-198808

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-43020i5MGE..MX7#198408-198808

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-43020i5MGE..MX7#198408-198808

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-43010i5MGE..MX7#198408-198808

9011608068

main90116-08068

9011608201

main90116-08201

9011910062

main90119-10062

9017908017

main90179-08017

9017908059

main90179-08059

9017908146

main90179-08146

9017910037

main90179-10037

9025311001

main90253-11001

9161160825

main91611-60825

9165160830

main91651-60830

26 parts on this diagram · 1 diagram in section
