STANDARD TOOL

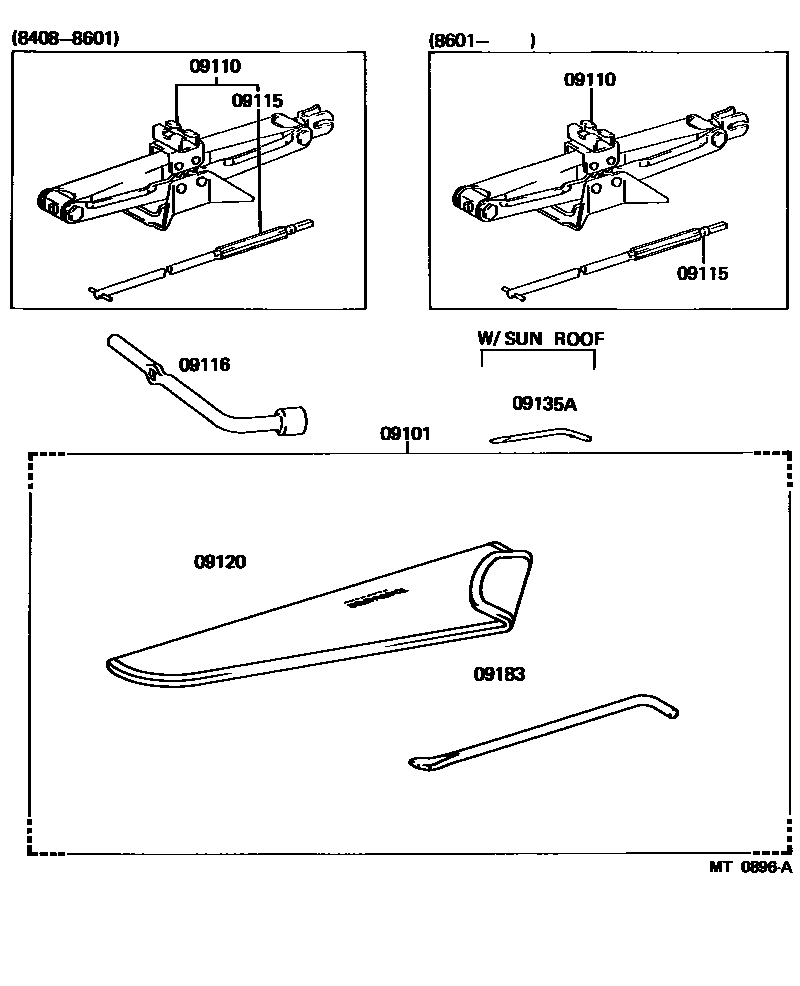

Parts diagram

09101TOOL SET, STANDARD W/O JACK

main09102-22020i198408-198808

09110JACK ASSY

main09111-14040i198601-198603

main09111-22040i198603-198808

main09118-22010i198408-198601

09115ROD SUB-ASSY, JACK HANDLE

main09115-24010i198408-198808

09116LEVER, JACK HANDLE

main09116-16010i198408-198808

09120BAG, TOOL

main09120-22030i198408-198808

09135ABIT, SCREW DRIVER

main09135-00012i198408-198808

W/SUN ROOF

09183WRENCH, WHEEL CAP

main09183-00010i198408-198808

7 parts on this diagram · 1 diagram in section
