Toyota 311430 — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

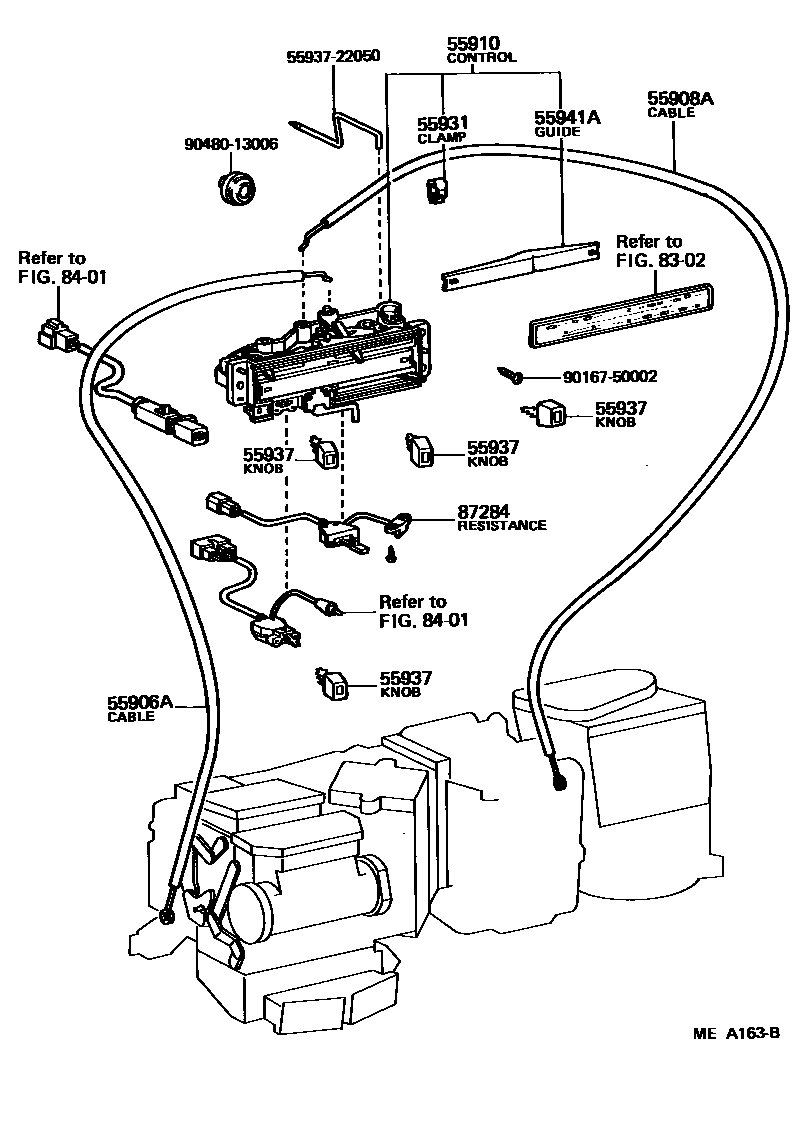

Parts diagram
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-22200
55910-22250
55931CLAMP, HEATER CONTROL WIRE
55933-24010
55937KNOB, HEATER CONTROL LEVER
55905-22070
55941AGUIDE, HEATER CONTROL
8302INDICATOR
→ Go to FIG 83-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
87284RESISTOR SUB-ASSY, VARIABLE
88032-22030
5593722050KNOB, HEATER CONTROL LEVER
55937-22050
9016750002
90167-50002
9048013006
90480-13006

12 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT for Toyota 311430
