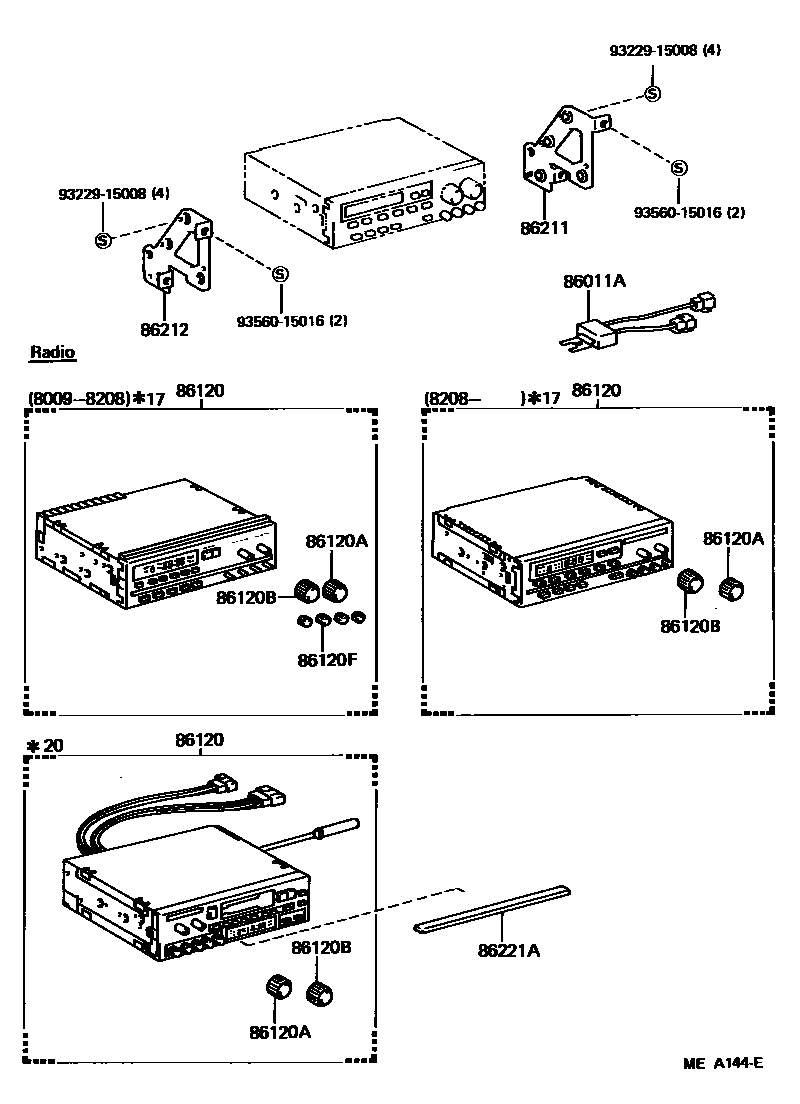

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04036iMX6#198009-198407

86120RECEIVER ASSY, RADIO

main86120-22290iMX62198009-198208

*17

main86120-22300iMX62198009-198108

*20

main86120-22370iMX62..USA198102-198108

*20,GUAM,SAIPAN,SAMOA SPEC

main86120-22420iMX62198108-198208

*20

main86120-22421iMX6#198208-198301

*20

main86120-22430iMX62..USA198108-198208

*20,GUAM,SAIPAN,SAMOA SPEC

main86120-22431iMX6#..USA198208-198407

*20,GUAM,SAIPAN,SAMOA SPEC

main86120-22480iMX6#198208-198301

*17

main86120-32030iMX6#198301-198407

*17

main86120-32040iMX6#198301-198407

*20

86120AKNOB, RADIO RECEIVER SWITCH

main86128-14090iMX6#198108-198407

*20

main86128-22010iMX62198009-198208

*17

main86128-22370iMX6#198208-198407

*17

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86128-22090iMX6#198009-198407

*17

main86128-22130iMX6#198009-198407

*20

86120FKNOB, RADIO RECEIVER SUB VOLUME

main86128-22150×4iMX62198009-198208

*17

86211BRACKET, RADIO, NO.1

main86211-22050iMX62..USA198108-198208

*17

main86211-22060iMX62..CND198009-198108

main86211-22090iMX6#..USA198208-198407

main86211-22100iMX62..CND198108-198205

*20

main86211-22101iMX62..CND198205-198208

*20

86212BRACKET, RADIO, NO.2

main86212-22030iMX62..USA198009-198108

main86212-22040iMX62..CND198108-198208

*17

main86212-22070iMX62..USA198108-198208

*20

main86212-22080iMX62..CND198108-198205

*20

main86212-22081iMX62..CND198205-198208

*20

86221APANEL, RADIO RECEIVER

main86221-22050iMX6#198305-198407

*20

9322915008

main93229-15008

9356015016

main93560-15016

10 parts on this diagram · 2 diagrams in section
