WINDSHIELD WIPER

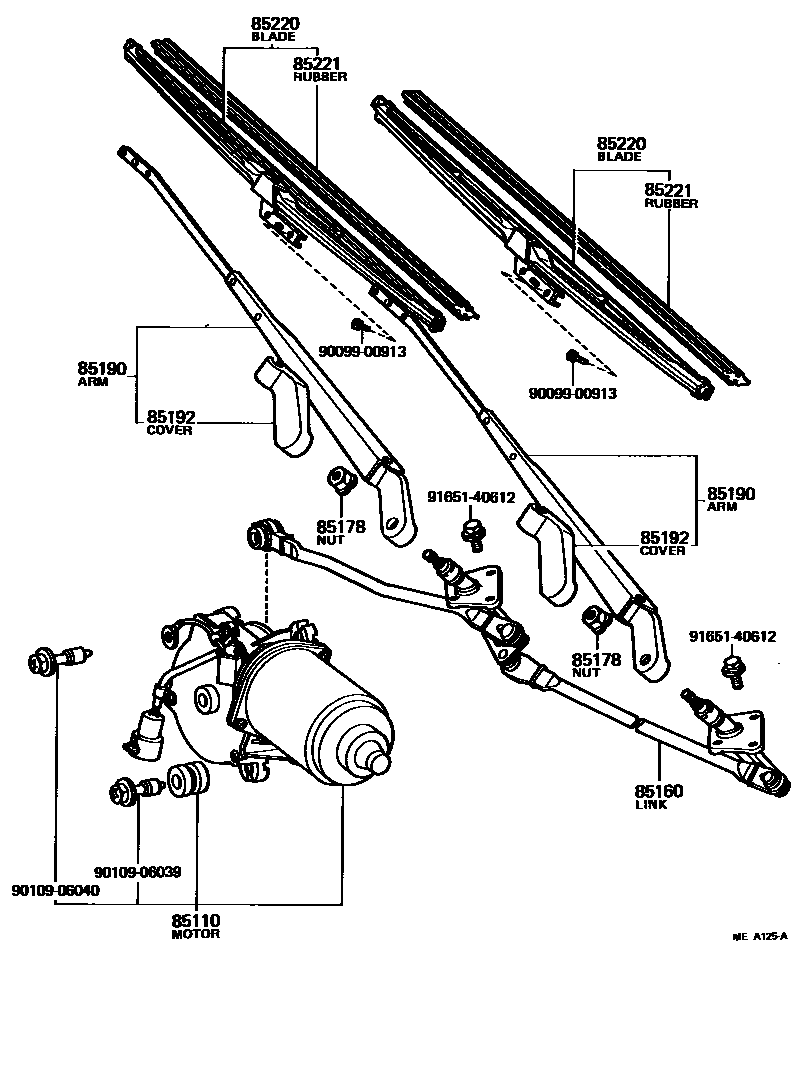

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22170i198009-198208

main85110-22240i198208-198308

main85110-22241i198308-198407

85160LINK ASSY, WINDSHIELD WIPER

main85160-22130i198009-198208

main85160-22180i198208-198407

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08016×2i198009-198208

main90176-08029×2i198208-198407

85190ARM ASSY, WINDSHIELD WIPER

main85190-22290i198009-198208

LH

main85190-22460i198208-198407

LH

main85210-22040i198009-198208

RH

main85210-22160i198208-198407

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-12040×2i198009-198208

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16140i198208-198306

LH

main85220-16150i198208-198306

RH

main85220-16270i198306-198407

LH

main85220-16290i198306-198401

RH

main85220-16340i198401-198407

RH

main85220-22110×2i198009-198208

85221BLADE, WINDSHIELD WIPER

main85221-12120×2i198208-198306

main85221-20110×2i198009-198109

main85221-22050×2i198109-198208

main85221-30100×2i198306-198407

9009900913

main90099-00913

9010906039

main90109-06039

9010906040

main90109-06040

9165140612

main91651-40612

11 parts on this diagram · 2 diagrams in section
