ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

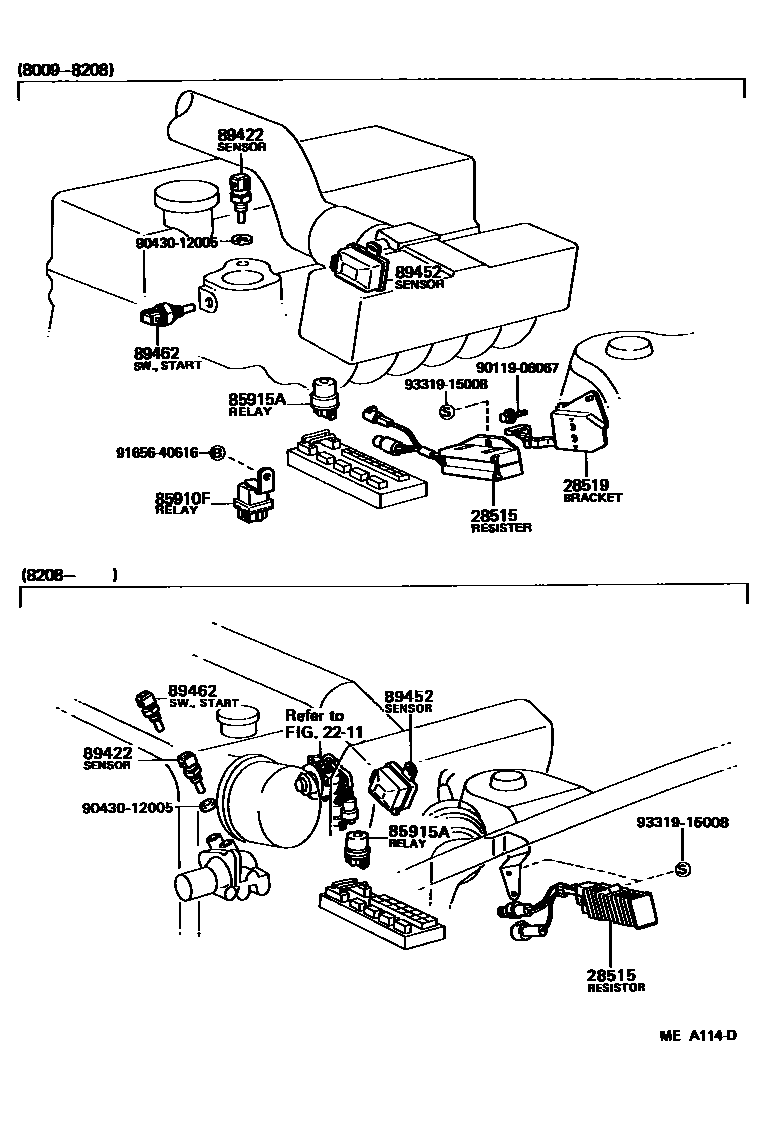

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

28515RESISTOR, SOLENOID

main28515-41021i5ME..MX62198009-198208

main28515-43010i5MGE..MX6#198208-198407

28519BRACKET, SOLENOID RESISTOR

main28519-43010i5ME..MX62198009-198208

85910FRELAY, COMPUTER (FOR EFI)

main85915-30040iMX62198009-198208

85915ARELAY, MAIN

main90987-02004iMX6#198009-198407

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iMX6#198009-198407

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14020iMX62198009-198208

main89452-14040iMX6#..ATM198208-198407

89462SWITCH, START INJECTOR TIME

main89462-30011iMX62198009-198208

main89462-40010iMX6#198208-198212

9011906067

main90119-06067

9043012005

main90430-12005

9165640616

main91656-40616

9331915008

main93319-15008

12 parts on this diagram · 2 diagrams in section
