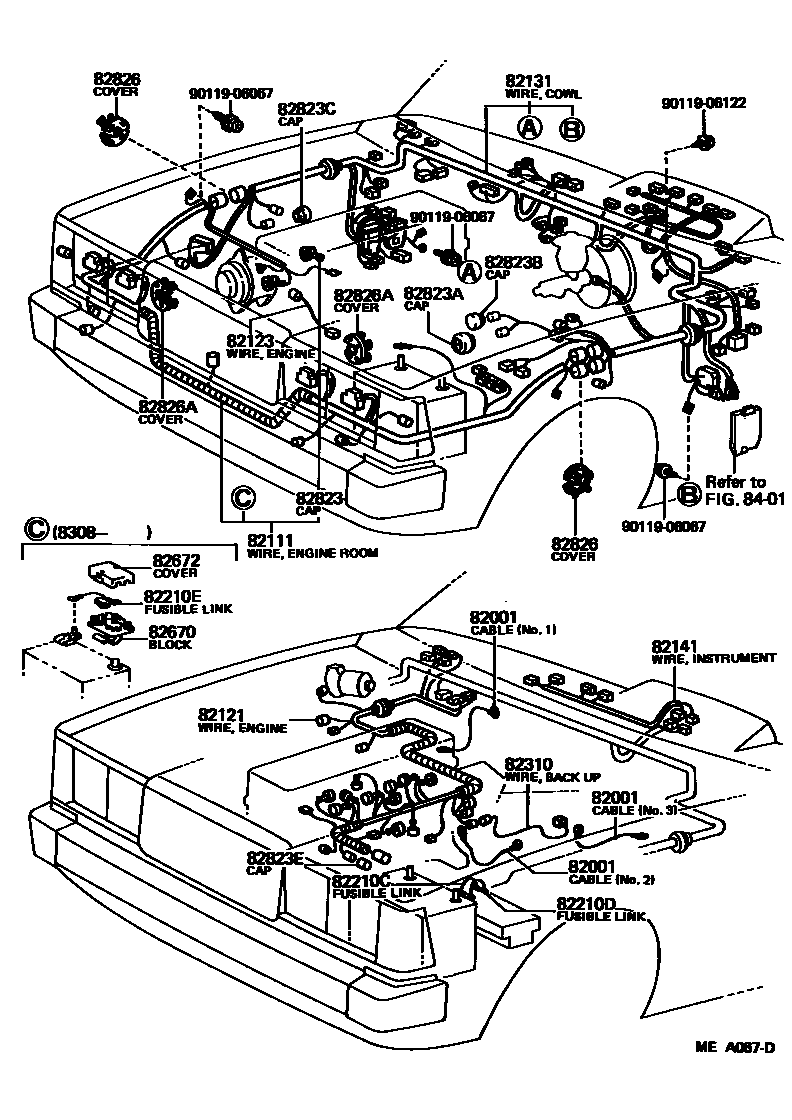

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=350(NO.2)
L=500(NO.1)
L=300(NO.3)
82111WIRE, ENGINE ROOM MAIN
82121WIRE, ENGINE
82123WIRE, ENGINE, NO.3
W/DIGITAL SPEEDOMETER
82131WIRE, COWL
W/DIGITAL SPEEDOMETER
W/DIGITAL SPEEDOMETER
W/DIGITAL SPEEDOMETER
82141WIRE, INSTRUMENT PANEL
W/DIGITAL SPEEDOMETER
W/DIGITAL SPEEDOMETER
82210CFUSIBLE LINK
FL 0.3 PINK
82210DFUSIBLE LINK
1.0YELLOW,L=110
82210EFUSIBLE LINK
82310WIRING ASSY, TO BACK UP LAMP SWITCH
82670BLOCK ASSY, JUNCTION, NO.1
SUMITOMO
YAZAKI
82672COVER, JUNKTION BLOCK
82823CAP, TERMINAL, NO.1
82823ACAP, TERMINAL, NO.2
82823BCAP, TERMINAL, NO.3
82823CCAP, TERMINAL, NO.4
82823ECAP, TERMINAL, NO.5
82826COVER, WIRING HARNESS HOLE
82826ACOVER, WIRING HARNESS HOLE, NO.2
8401SWITCH & RELAY & COMPUTER
9011906067
main90119-06067
9011906122
main90119-06122
22 parts on this diagram · 9 diagrams in section
