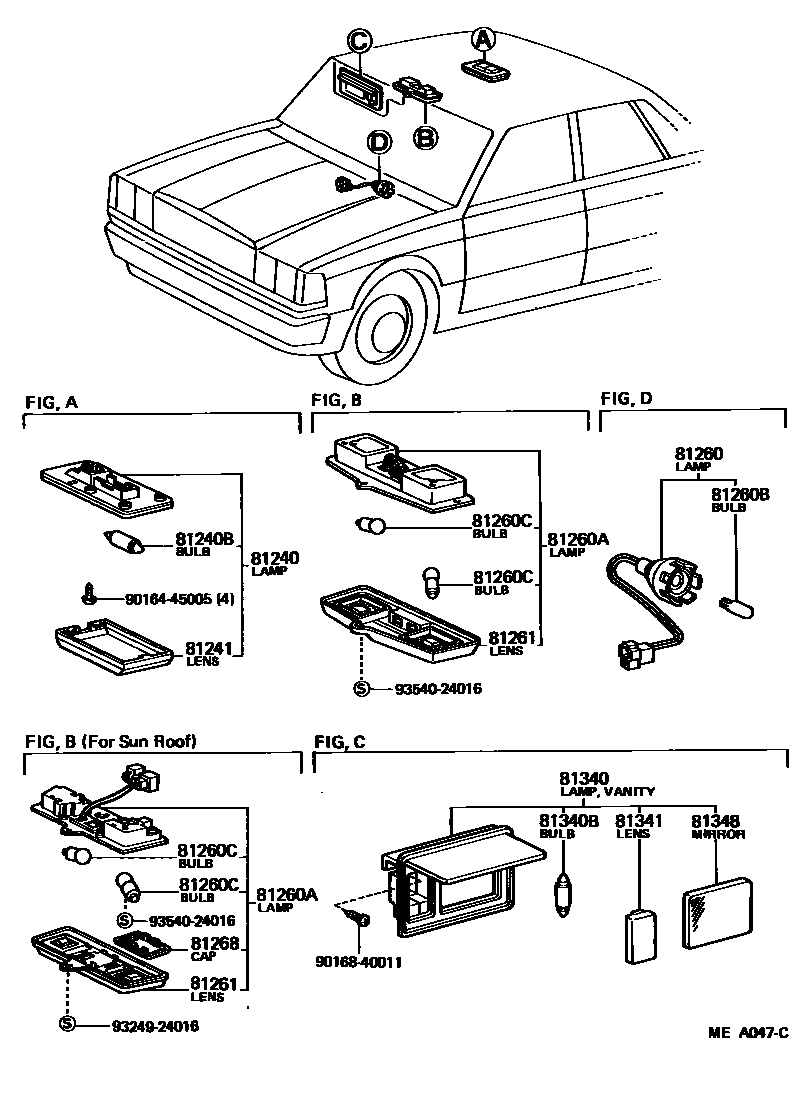

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-22050-04iMX62..CND198009-198208

BLUE,BLUE

main81240-22050-08iMX62;MX63..CND198208-198407

IVORY,IVORY

main81240-22050-14iMX62;MX63..CND198208-198407

BLUE,BLUE

main81240-22060-04iMX62..SED..CND; MX62..USA198009-198208

BLUE,BLUE; BLUE,W/SUN ROOF,BLUE

main81240-22060-08iMX6#..SED..CND; MX6#..USA198009-198407

IVORY,IVORY; IVORY,W/SUN ROOF,IVORY

main81240-22060-14iMX6#..USA; MX63..CND198208-198407

BLUE,BLUE; BLUE,W/SUN ROOF,BLUE

81240BBULB, ROOM LAMP, NO.1

main99132-12100iMX6#198009-198407

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iMX6#198009-198407

81260LAMP ASSY, GLOVE BOX

main81260-22070iMX6#198009-198407

81260ALAMP ASSY, MAP

main81260-22040-04iMX62198009-198011

BLUE,BLUE

main81260-22040-08iMX62198009-198011

IVORY,IVORY

main81260-22041-04iMX62198011-198208

BLUE,BLUE

main81260-22041-08iMX6#198011-198407

IVORY,IVORY

main81260-22041-14iMX6#198208-198407

BLUE,BLUE

main81260-22060-04iMX62..SED198009-198208

BLUE,W/SUN ROOF,BLUE

main81260-22060-08iMX6#..SED198009-198407

IVORY,W/SUN ROOF,IVORY

main81260-22060-14iMX63198208-198407

BLUE,W/SUN ROOF,BLUE

81260BBULB(FOR GLOVE BOX)

main90981-11018iMX6#198009-198407

12V 1.2W W/O SOCKET,12V 1.2W

81260CBULB(FOR MAP LAMP)

main90981-12005×2iMX6#198009-198407

12V 8W,12V 8W

81261LENS AND COVER, MAP LAMP

main81261-22060-04iMX62..SED198009-198208

BLUE,W/SUN ROOF,BLUE

main81261-22060-08iMX6#..SED198009-198407

IVORY,W/SUN ROOF,IVORY

main81261-22060-14iMX6#198208-198311

BLUE,W/SUN ROOF,BLUE

main81261-22061-14iMX6#198311-198407

BLUE,W/SUN ROOF,BLUE

main81268-22040-04iMX62198009-198208

BLUE,BLUE

main81268-22040-08iMX6#198009-198407

IVORY,IVORY

main81268-22040-14iMX6#198208-198407

BLUE,BLUE

81268CAP MAP LAMP

main81268-22060-04iMX62..SED198009-198208

BLUE,BLUE

main81268-22060-08iMX6#..SED198009-198407

IVORY,IVORY

main81268-22060-14iMX63198208-198407

BLUE,BLUE

81340LAMP ASSY, VANITY

main81340-22010-04iMX62..USA198108-198208

BLUE,BLUE

main81340-22010-08iMX6#..USA198108-198407

IVORY,IVORY

main81340-22010-14iMX63198208-198407

BLUE,BLUE

81340BBULB (FOR VANITY LAMP)

main90981-14002iMX6#..USA198108-198407

12V 5W,12V 5W

81341LENS, VANITY LAMP

main81341-14010iMX6#..USA198108-198407

81348MIRROR, VANITY LAMP

main81348-14010iMX6#..USA198108-198407

9016445005

main90164-45005

9016840011

main90168-40011

9324924016

main93249-24016

9354024016

main93540-24016

17 parts on this diagram · 2 diagrams in section
