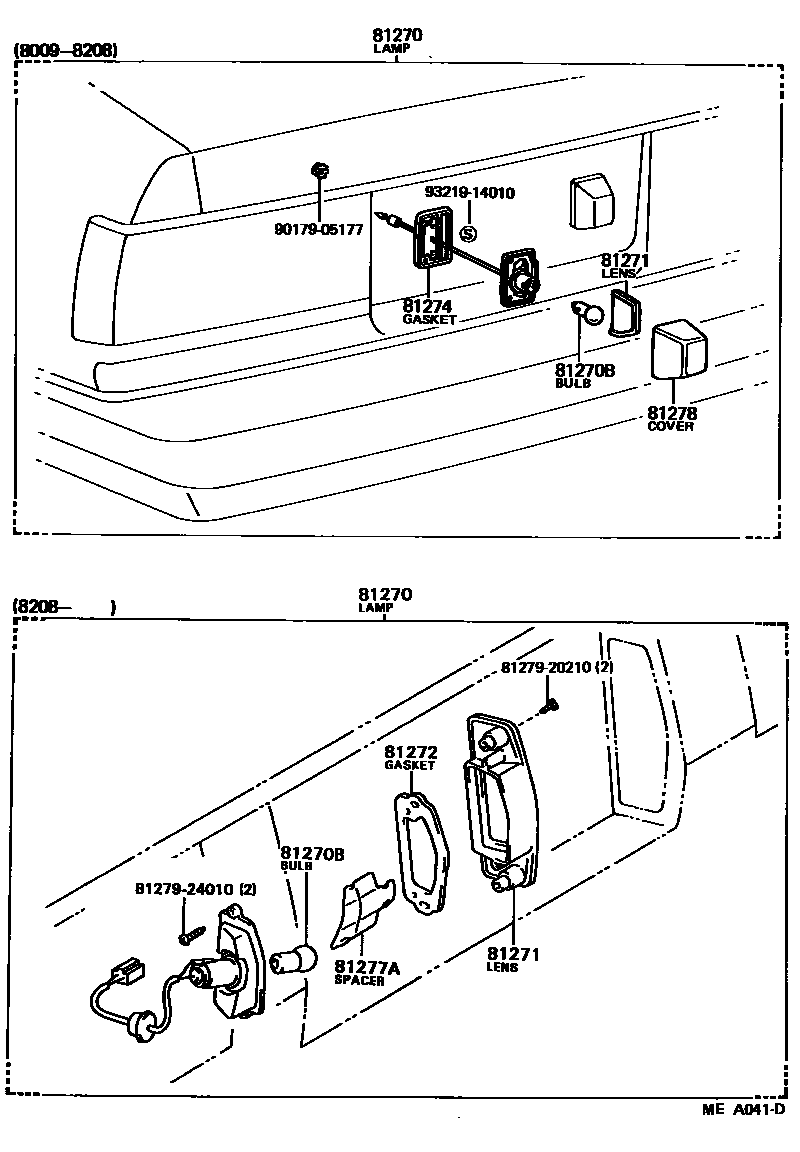

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-22140×2iMX63198208-198407

main81270-29475iMX62..SED198009-198208

RH

main81270-29605iMX62..WG198009-198208

main81270-29785iMX62198208-198407

main81690-29105iMX62..SED198009-198208

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012×2iMX63198208-198407

12V 7.5W,12V 7.5W

main99132-11075×2iMX62198009-198208

12V 7.5W,12V 7.5W

81271LENS, LICENSE PLATE LAMP

main81271-20110iMX62..SED198009-198208

RH

main81271-20210×2iMX63198208-198407

main81271-91601×2iMX62..WG198009-198407

main81691-20030iMX62..SED198009-198208

LH

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20210×2iMX63198208-198407

main81272-91601×2iMX62..WG198009-198407

81274GASKET, LICENSE PLATE LAMP BODY

main81274-20110iMX62..SED198009-198208

RH

main81694-20030iMX62..SED198009-198208

LH

81277ASPACER, LICENSE PLATE LAMP GASKET, B

main81277-20210×2iMX63198208-198407

81278COVER, LICENSE PLATE LAMP

main81276-20110iMX62..SED198009-198208

RH

main81696-20030iMX62..SED198009-198208

LH

8127920210WASHER, SIDE TURN SIGNAL LAMP

main81279-20210

8127924010WASHER, SIDE TURN SIGNAL LAMP

main81279-24010

9017905177

main90179-05177

9321914010

main93219-14010

11 parts on this diagram · 2 diagrams in section
