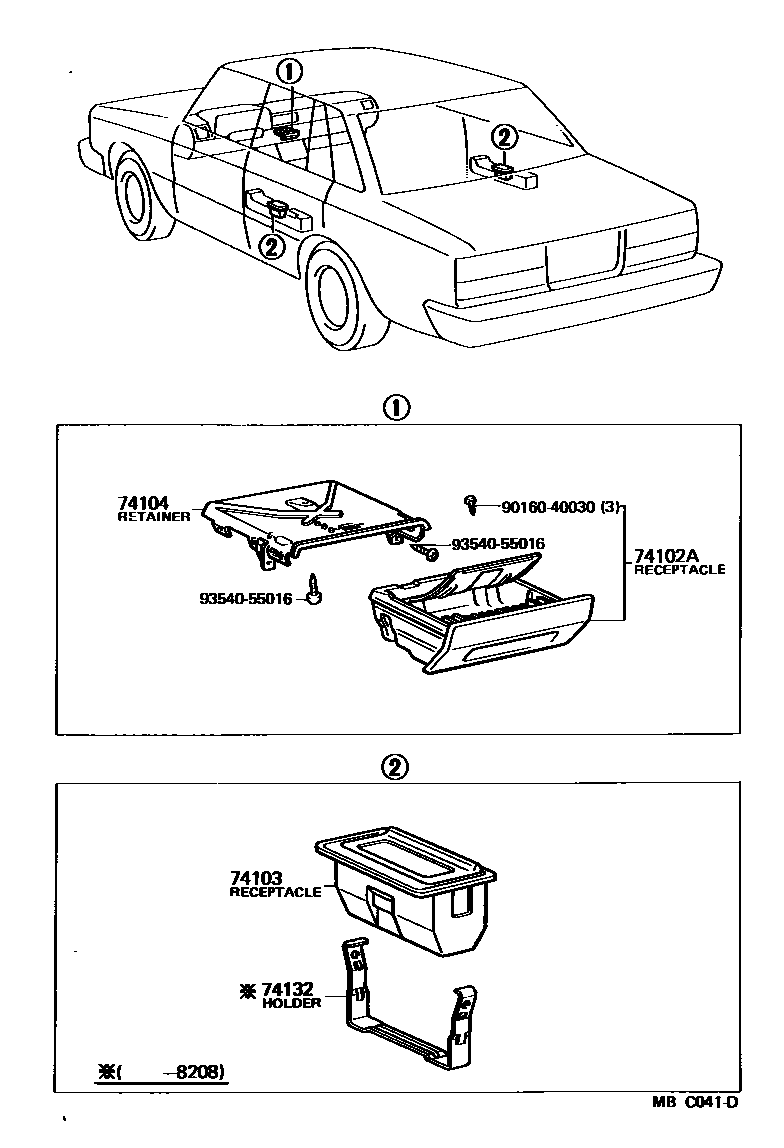

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-22040-01iMX62198009-198208

BLACK,BLACK

main74102-22040-02iMX6#198208-198407

DEEP MAROON,RED/MAROON

main74102-22040-04iMX62198009-198208

BLUE,BLUE

main74102-22040-06iMX6#198009-198407

D-BROWN,BROWN

main74102-22040-14iMX6#198208-198407

BLUE,BLUE

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74130-22040×2iMX62198009-198208

main74130-22060-02×2iMX6#198208-198407

DEEP MAROON,RED/MAROON

main74130-22060-04×2iMX6#198208-198407

BLUE,BLUE

main74130-22060-06×2iMX6#198208-198407

DARK BROWN,BROWN

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-22070iMX6#..CND198009-198407

main74104-22080iMX6#..USA198009-198407

74132HOLDER, REAR ASH RECEPTACLE

main74239-22020×2iMX62198009-198208

9016040030

main90160-40030

9354055016

main93540-55016

6 parts on this diagram · 1 diagram in section
