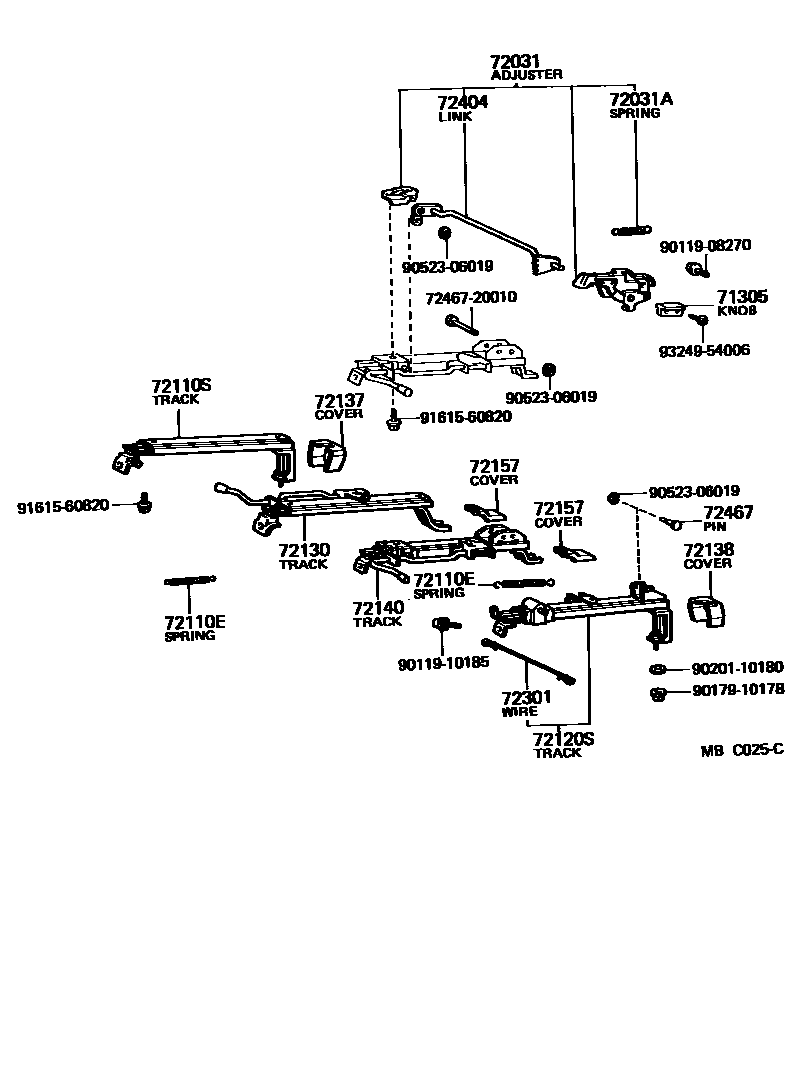

SEAT TRUCK

71305KNOB SUB-ASSY, FRONT SEAT ADJUSTING

main72457-14020-01iMX62198009-198208

BLACK,BLACK

main72457-14020-04iMX62198009-198208

BLUE,BLUE

main72457-14020-12iMX6#198208-198407

DEEP MAROON,RED/MAROON

main72457-14020-14iMX6#198208-198407

BLUE,BLUE

main72457-14020-16iMX62198009-198208

D-BROWN,BROWN

main72457-14020-26iMX6#198208-198407

D-BROWN,BROWN

72031ADJUSTER ASSY, FRONT SEAT VERTICAL

main72310-22040iMX62198009-198109

main72310-22070iMX6#198109-198407

72031ASPRING, TENSION (FOR VERTICAL ADJUSTER)

main90506-18025iMX62198009-198109

main90506-22001iMX6#198109-198407

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18008×2iMX6#198009-198407

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-22230iMX62198009-198208

main72110-22340iMX6#198208-198407

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72120-22220iMX62198009-198208

main72120-22250iMX6#198208-198407

72130TRACK ASSY, RH SEAT, INNER

main72130-22120iMX62198009-198102

main72130-22140iMX62198102-198208

main72130-22180iMX6#198208-198407

72137COVER, SEAT TRACK, OUTER RH

main72137-22020-01iMX62198009-198207

BLACK,BLACK

main72137-22020-04iMX62198009-198207

BLUE,BLUE

main72137-22020-06iMX62198009-198207

D-BROWN,BROWN

main72137-22021-01iMX62198207-198208

BLACK,BLACK

main72137-22021-04iMX62198207-198208

BLUE,BLUE

main72137-22021-06iMX6#198207-198407

D-BROWN,BROWN

main72137-22021-12iMX6#198208-198407

DEEP MAROON,RED/MAROON

main72137-22021-14iMX6#198208-198407

BLUE,BLUE

72138COVER, SEAT TRACK, OUTER LH

main72138-22011-01iMX62198009-198207

BLACK,BLACK

main72138-22011-04iMX62198009-198207

BLUE,BLUE

main72138-22011-06iMX62198009-198207

D-BROWN,BROWN

main72138-22012-01iMX62198207-198208

BLACK,BLACK

main72138-22012-04iMX62198207-198208

BLUE,BLUE

main72138-22012-06iMX6#198207-198407

D-BROWN,BROWN

main72138-22012-12iMX6#198208-198407

DEEP MAROON,RED/MAROON

main72138-22012-14iMX6#198208-198407

BLUE,BLUE

72140TRACK ASSY, LH SEAT, INNER

main72140-22110iMX62198009-198208

main72140-22130iMX6#198208-198407

72157COVER, SEAT TRACK BRACKET, INNER

main72157-22040-01×2iMX62198009-198208

BLACK,BLACK

main72157-22040-04×2iMX62198009-198208

BLUE,BLUE

main72157-22040-06×2iMX6#198009-198407

D-BROWN,BROWN

main72157-22040-12×2iMX6#198208-198407

DEEP MAROON,RED/MAROON

main72157-22040-14×2iMX6#198208-198407

BLUE,BLUE

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-22070iMX62198009-198208

main72301-22090iMX6#198208-198407

LH

main72301-22100iMX6#198208-198407

RH

72404LINK SUB-ASSY, VERTICAL SEAT

main72404-20021iMX6#198009-198407

72467PIN, VERTICAL ADJUSTER

main72467-20010×2iMX6#198009-198407

7246720010PIN, VERTICAL ADJUSTER

main72467-20010

9011908270

main90119-08270

9011910185

main90119-10185

9017910178

main90179-10178

9020110180

main90201-10180

9052306019

main90523-06019

9161560820

main91615-60820

9324954006

main93249-54006

22 parts on this diagram · 1 diagram in section
